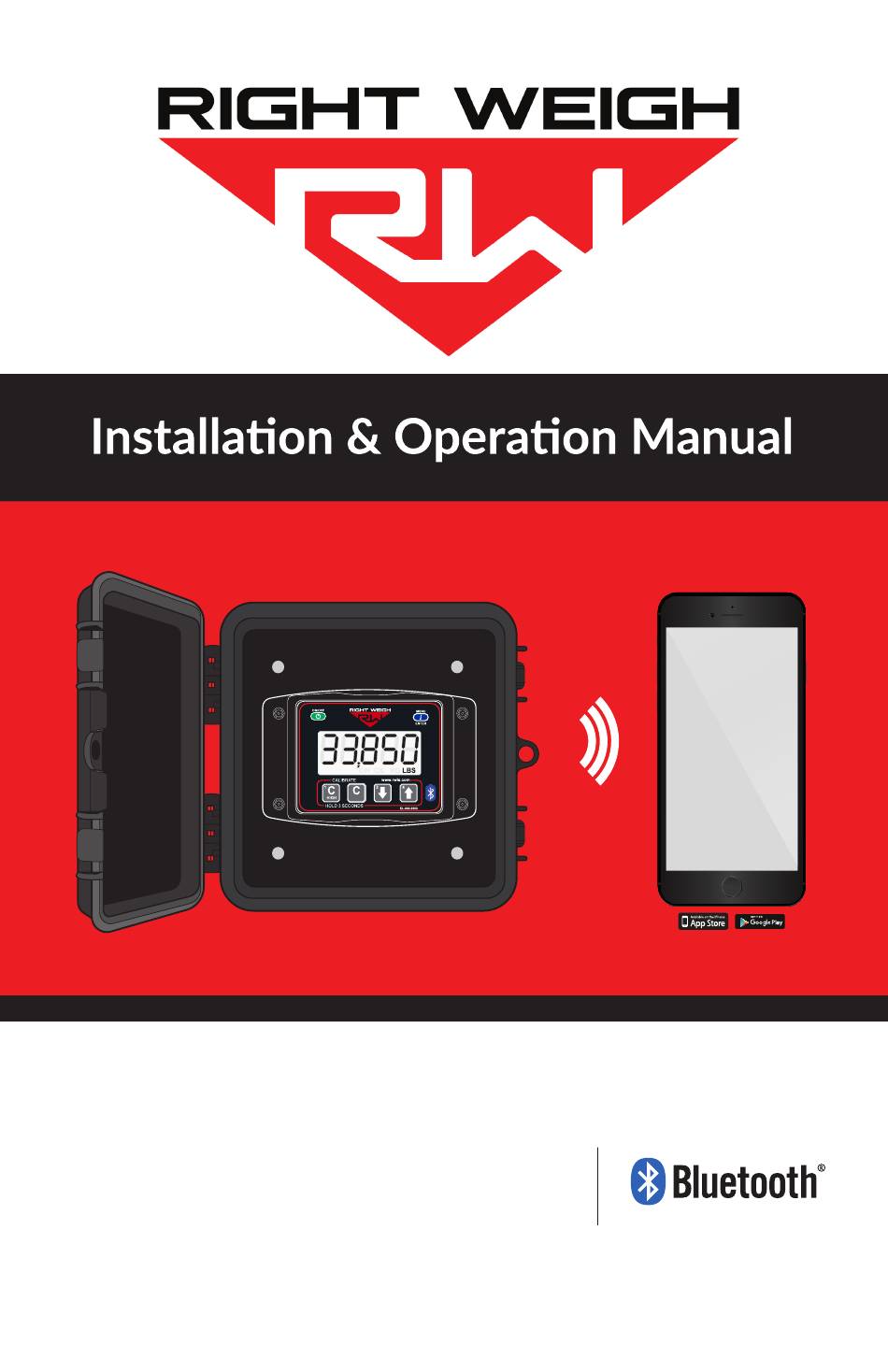

Right Weigh 201-219-11 Installation & Operation Manual

Onboard load scale exterior digital air / spring, bluetooth

Advertisement

2
LOW
ONBOARD LOAD SCALE
EXTERIOR DIGITAL
|
AIR / SPRING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 201-219-11 and is the answer not in the manual?

Questions and answers

Summary of Contents for Right Weigh 201-219-11

  • Page 1 ONBOARD LOAD SCALE EXTERIOR DIGITAL AIR / SPRING...
  • Page 2 IMPORTANT! Please read instructions COMPLETELY and thoroughly before installation. Right Weigh, Inc. is not responsible or liable for product failure or vehicle damage due to improper installation. The installation requirements are outlined in this manual and should be followed thoroughly to avoid inaccuracy or damage to the product.
  • Page 3: Table Of Contents

    AIR / SPRING The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Right Weigh, Inc. is under license. Other trademarks and trade names are those of their respective owners.
  • Page 4: Specifications & Overview

    SPECIFICATIONS & OVERVIEW This manual applies to the following gauges: 201-219-11 201-219-12 201-219-21 201-219-22 Technical Specifications Operating Temperature: -22° F to +185° F (-30° C to +85° C) Storage Temperature: -40° F to +185° F (-40° C to +85° C)
  • Page 5: Scale Installation And Electrical Connections

    SCALE INSTALLATION & ELECTRICAL CONNECTIONS Before scale installation, make sure you install all required strain sensors (see corresponding Installation Overview for more information on sensor location). This scale is designed to be mounted on the outside of a truck or trailer, a protective box and mounting bracket are included.
  • Page 6 SCALE INSTALLATION & ELECTRICAL CONNECTIONS INSTALL NEW STREET TEE FITTING Remove suspension Remove the suspension air line fitting from air line and tting the top of one of the air bags. Air Bag Insert a street tee fitting into the top of the Street tee air bag that matches the thread size of the tting...
  • Page 7 SCALE INSTALLATION & ELECTRICAL CONNECTIONS CONNECT EACH SPRING SENSOR WIRE TO EXTENSION CABLES Connect the ends of each spring sensor wire on the gauge to the wire end of the extension cable provided in the strain sensor kit(s). Be sure to use the heat shrink and butt connectors to properly insulate the wires.
  • Page 8: Scale Operating Modes

    • Front _ Back _ Mode (F_b_): This mode monitors two separate axle groups by separating the air and spring sensors. Each gauge has its own mode: 201-219-11 = F1b1 201-219-12 = F1b2 201-219-21 = F2b1 201-219-22 = F2b2 See following page for a more detailed description.
  • Page 9: Spring Average Air Independent Mode (Sa-Ai)

    In this mode, there is a small number in the lower left of the display - either 1, 2, or 1 & 2 simultaneously - to let you know which axle group is being displayed. 201-219-11: 1 - Spring Sensor 2 - Air Sensor...
  • Page 10: Sensor Checking / Adjustment

    SENSOR CHECKING / ADJUSTMENT At this time, you should have the scale and all strain sensors installed onto your truck. Once this is complete, it is time to adjust the strain sensor(s). Only perform the following checks when the vehicle is empty HOLDING TURN ON DIAGNOSTICS MODE...
  • Page 11 SENSOR CHECKING / ADJUSTMENT ADJUST STRAIN SENSOR In this example, strain sensor 1 is out of range and needs to be manually adjusted until it is within 6.500 and 7.500. With the correct sensor displayed on the diagnostics screen, loosen the cover of the proper strain sensor.
  • Page 12: Calibration

    CALIBRATION The 201-219 spring series load scales must be calibrated both empty and loaded to work properly. The scale associates the strain on the suspension system to the weight you enter at the time of calibration. You will need to calibrate once while the vehicle is empty, and again while the vehicle is loaded for each axle group being monitored.
  • Page 13 HCV to refill the system. 4: Press the ON/OFF button to turn on the Right Weigh load scale. 5: Press the blue MENU button to select the proper axle group.
  • Page 14: Operating & Weighing

    4: Press the ON/OFF button to turn on the Right Weigh load scale. 5: Adjust the suspension or the load itself until the Right Weigh load scale displays a weight value below your legal limit. 6: Press the blue MENU button to cycle through and repeat for all axles or axle groups.
  • Page 15: Security Pin Code

    SETTING SECURITY PIN CODE Adding a security PIN will prevent tampering with the gauge. Once set, the PIN will be required to change calibration data and to change the PIN code. With the gauge off, hold both the PRESS C LOW and C HIGH buttons, then press the ON/OFF button and release all three.
  • Page 16: Changing

    CHANGING SECURITY PIN CODE PRESS With the gauge off, hold both the C LOW and C HIGH buttons, then press the ON/OFF button and release all three. HOLDING Press the MENU button and PRESS “-----” will display on the screen. Enter the previous PIN code.
  • Page 17: Overweight Warning

    OVERWEIGHT WARNING The overweight warning can be added as a visual warning to the driver to flash anytime the gauge reads above a set weight. With the scale turned on, press and hold both the C HIGH and C LOW buttons until the “C/H” symbol appears.
  • Page 18: Right Weigh Bluetoothâ„¢ App

    RWLS APP - General Information RIGHT WEIGH LOAD SCALES APP Go to the Google Play or App Store and download the Right Weigh Load Scales App! Print Share Gross and Menu Net Weight Tare Scale Name Connection Status Details Axle Group...
  • Page 19 (storage frequency dependent on save settings), seeing the app settings, and will take you to a support page for more information on how to contact Right Weigh, Inc. SCALE NAME Once you have connected the gauge to your phone app, the scale name will display here.
  • Page 20: Connecting To Gauge

    RWLS App - Connecting To Gauge HOLD PRESS With the gauge off, hold down the MENU button, press the ON/OFF button, and release both simultaneously. PRESS Press the MENU button twice to see the unique identifier. Once the app has been downloaded and opened, you will see the home screen with no gauge connected to it and a gross weight of “0”.
  • Page 21 RWLS APP - Connecting To Gauge On the app home screen, press the “Add Gauge” button and choose PRESS whether or not the gauge is connected to the truck or trailer. CHOOSE SELECT Select the gauge that matches the unique identifier name from step 3 to add the gauge to your home screen.
  • Page 22: Details Screen

    RWLS APP - Details Screen To get to the scale details screen, press on “Details” from the home page. This page will display information for that specific scale and includes the ability to rename the scale. DELETE SCALE FROM APP RENAME THE SCALE To re-name the scale, select the pencil icon.
  • Page 23: Settings Screen

    RWLS APP - Settings Screen To get to the settings screen, press the menu button on the top left of the home screen and navigate to “Settings” CHANGING UNITS Change the units to either pounds (LB) or kilograms (KG) SET WARNING AND OVERLOAD WEIGHTS Set warning and overload weight limit defaults...
  • Page 24: Troubleshooting

    If the HCV is not functioning correctly, the air pressure applied to the suspension system could be inconsistent and/or erratic. To test for an HCV problem, acquire a weight reading from the Right Weigh gauge and write it down (refer to gauge operating instructions for proper procedure). Drive the vehicle around the block and return to the same location.
  • Page 25 TROUBLESHOOTING APP WON’T CONNECT TO THE GAUGE Scale is connected to a constant power source: The gauge should never be connected to a constant power source, rewire so that it is connected to a switched power source. If the gauge is powered too long it can stop transmitting a Bluetooth signal and may need to be disconnected and reconnected to work again.
  • Page 26: Appendix A - Additional Parts

    The following is a list of additional parts needed for air line installation. This list is just a suggestion and may not be all of the parts needed for your specific vehicle. Check with your Right Weigh dealer for optional installation kits.
  • Page 27: Appendix B - Wiring Insulation

    APPENDIX B It is very important that all wiring connections be made watertight. Connections which are not watertight can allow moisture to travel through the individual strands of the wires and make it’s way into the scale, causing permanent damage to the electronics. Crimp each end of the wire into the connector with a wire crimp tool (tool not provided).
  • Page 28 NOTES...
  • Page 29 NOTES...
  • Page 30: Warranty Statement

    Products manufactured or sold by Right Weigh, Inc. are warrantied to be free from significant defects in material and workmanship 3 years from date of purchase. During this time, and within the boundaries set forth in this warranty statement, Right Weigh, Inc.
  • Page 31: Return Policy & Repairs

    Right Weigh, Inc. will return the product at its expense via a shipping method (carrier to be at sole discretion of Right Weigh, Inc.) equal to or faster than the method used by the customer. Products or parts thereof not covered by warranty will be repaired or replaced at customer expense upon authorization by the customer.
  • Page 32 For additional support contact: United States and Canada: Right Weigh, Inc. (503) 628-0838 (888) 818-2058 - Toll Free (USA ONLY) www.rwls.com support@rwls.com Australia and New Zealand: Smart Truck Solutions +61 418 622840 rightweigh.com.au ©2015-2020 Right Weigh, Inc. All rights reserved.
