Right Weigh 201-EBT-01 Installation & Operation Manual

Onboard load scale, exterior digital
Hide thumbs Also See for 201-EBT-01:
Table of Contents

Advertisement

Quick Links

Download this manual
2
LOW
ONBOARD LOAD SCALE
EXTERIOR DIGITAL
|
201-EBT-01(B)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 201-EBT-01 and is the answer not in the manual?

Questions and answers

Related Manuals for Right Weigh 201-EBT-01

Summary of Contents for Right Weigh 201-EBT-01

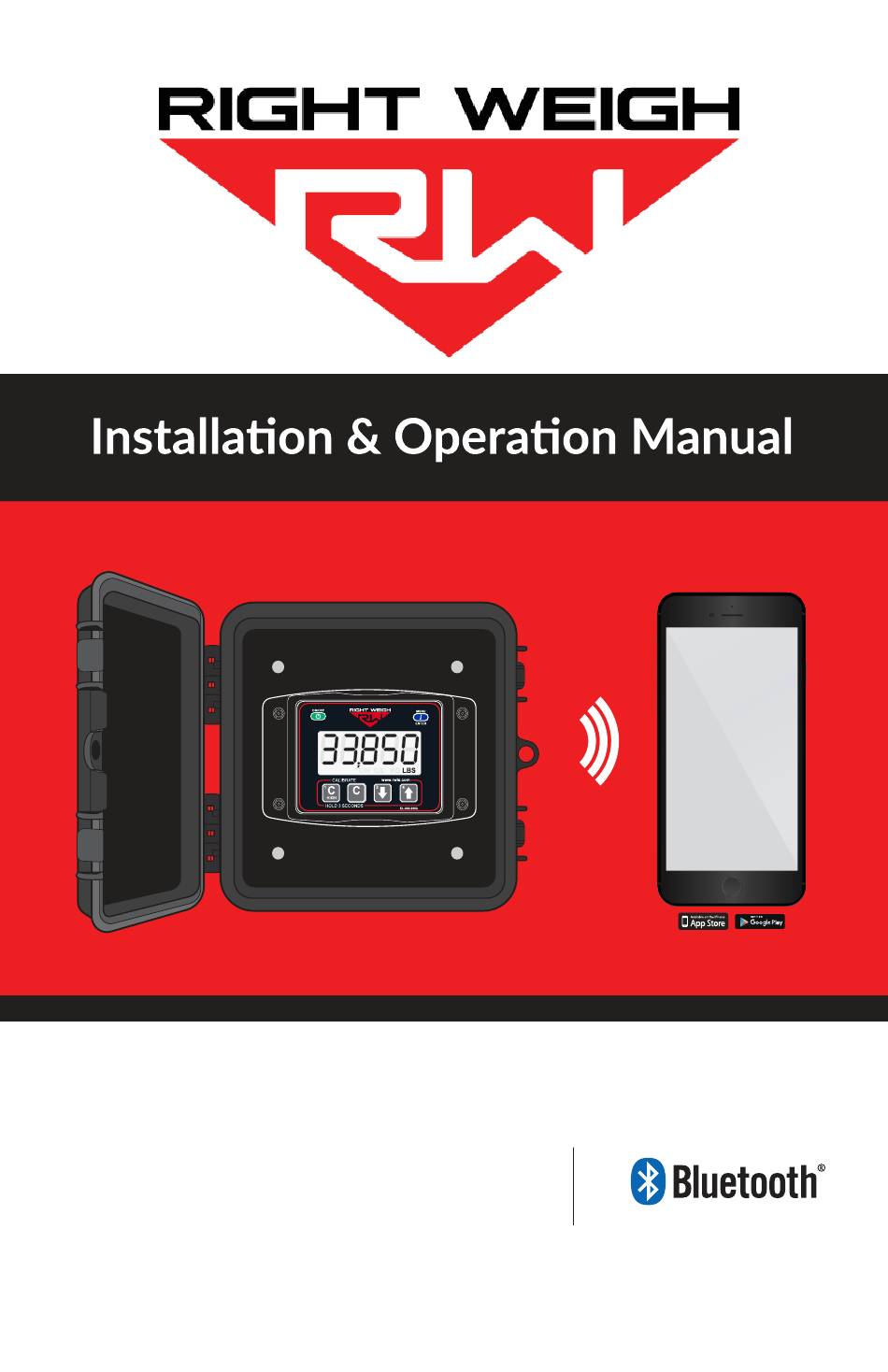

  • Page 1 ONBOARD LOAD SCALE EXTERIOR DIGITAL 201-EBT-01(B)
  • Page 2 It is also important to be aware of vehicle manufacturer policies before making modifications to the vehicle. Right Weigh, Inc. is not liable or responsible for issues regarding warranties with other manufacturers. This is the responsibility of the customer.

  • Page 3: Table Of Contents

    EXTERIOR DIGITAL 201-EBT-01(B) The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Right Weigh, Inc. is under license. Other trademarks and trade names are those of their respective owners.

  • Page 4: Specifications & Overview

    Single Axle Group Tandem Axle Group 1 HCV Tri Axle Group The 201-EBT-01(B) cannot be used on an axle group that has two HCVs. To monitor an axle group that has two HCVs you will need the 201-EBT-02(B) Drop Axle:...
  • Page 5 SPECIFICATIONS & OVERVIEW Technical Specifications Operating Temperature: -22° F to +185° F (-30° C to +85° C) Storage Temperature: -40° F to +185° F (-40° C to +85° C) Power Requirement: 9 VDC to 32 VDC (Switched) Units: Pounds (LBS) or Kilograms (KG) Housing: High impact polycarbonate blend Display: 0.8”...

  • Page 6: Scale Installation And Electrical Connections

    SCALE INSTALLATION & ELECTRICAL CONNECTIONS The 201-EBT-01 scale is designed to be mounted on the outside of a truck or trailer, however it must still be mounted in a protective enclosure. A protective box and mounting bracket are included with the 201-EBT-01B.
  • Page 7 WHITE input to the scale (RX). For more information about this feature, please contact Right Weigh Technical Support listed on page 2. DO NOT connect directly to a battery or any constant power source, gauge should be connected to a switched source so that it can be disconnected from power when not in use.

  • Page 8: Operating Modes

    OPERATING MODES The next few pages cover the operation modes that are built into the 201-EBT-01(B). The load scale can only be setup in one operating mode at a time. If the mode is changed, the calibration data will be reset to factory defaults, requiring re-calibration.

  • Page 9: Sensor Average + Estimated Steer Mode (S-Avg)

    SENSOR AVERAGE + ESTIMATED STEER MODE (S-AVG) In Estimated Steer mode, a 201-EBT-01(B) installed on a single height control valve tractor to monitor the drive axle group can also estimate the steer axle weight. In this mode, there is a small number in the lower left of the display - either 1, 2, or 1 &...

  • Page 10: Calibration

    CALIBRATION The 201-EBT-01(B) load scale must be calibrated both empty and loaded to work properly. The scale associates the air pressure in the suspension system to the weight you enter at the time of calibration. You will need to calibrate once while the vehicle is empty, and again while the vehicle is loaded for each axle group being monitored.
  • Page 11 HCV to refill the system. 4: Press the ON/OFF button to turn on the Right Weigh load scale. 5: For S-AVG and 4CAL modes, press the blue MENU button to select the proper axle group or calibration set.

  • Page 12: Operating & Weighing

    4: Press the ON/OFF button to turn on the Right Weigh load scale. 5: Adjust the suspension or the load itself until the Right Weigh load scale displays a weight value below your legal limit. 6: For S-AVG and 4CAL, press the blue MENU button. Repeat for drive axle group or other configurations.

  • Page 13: Security Pin Code

    SET SECURITY PIN CODE PRESS With the gauge off, hold both the C LOW and C HIGH buttons, then press the ON/OFF button and release all three. HOLDING Press the MENU button and PRESS “00000” will display on the screen. Enter a 5 digit PIN code using the 1, 2, 3, and 4 buttons.

  • Page 14: Change

    CHANGE SECURITY PIN CODE PRESS With the gauge off, hold both the C LOW and C HIGH buttons, then press the ON/OFF button and release all three. HOLDING Press the MENU button and PRESS “-----” will display on the screen. Enter the previous PIN code.

  • Page 15: Overweight Warning

    OVERWEIGHT WARNING The overweight warning can be added as a visual warning to the driver to flash anytime the gauge reads above a set weight. With the scale turned on, press and hold both the C HIGH and C LOW buttons until the “C/H” symbol appears.

  • Page 16: Right Weigh Bluetooth™ App

    RWLS APP -CONNECT TO SCALE Go to the Google Play or App Store and download the Right Weigh App! Once the Right Weigh Load Scales app has been downloaded onto your smart device, follow these steps to connect to your scale.
  • Page 17 RWLS APP - CONNECT TO SCALE On the app home screen, press the “Add Gauge” button and choose whether the gauge is connected to the truck or trailer. PRESS CHOOSE SELECT Look for the gauge with the name containing the unique identifier found in step 2.

  • Page 18: Home

    RWLS APP - HOME HOME SCREEN Share Print Menu Gross and Net Weight Tare Weight Scale Name Connection Status Details Axle Group Details Name Add Scale...
  • Page 19 Settings. Settings - see page 21 for more info. Contact Us - contact information to Right Weigh technical support. The app version number is also displayed at the bottom of the menu.

  • Page 20: Scale Details

    RWLS APP - SCALE DETAILS To get to the scale details screen: iOS devices: press the details link shown below the axle weights on the home screen. Android devices: press on the scale name shown on the home screen. This page will display information for that specific scale and includes the ability to rename the scale.

  • Page 21: Settings

    RWLS APP - SETTINGS To get to the settings screen, press the menu button on the top left of the home screen and navigate to “Settings” CHANGING UNITS Change the units to either pounds (LB) or kilograms (KG) SET WARNING AND OVERLOAD WEIGHTS Set warning and overload weight limit defaults...

  • Page 22: Troubleshooting

    If the HCV is not functioning correctly, the air pressure applied to the suspension system could be inconsistent and/or erratic. To test for an HCV problem, acquire a weight reading from the Right Weigh gauge and write it down (refer to gauge operating instructions for proper procedure). Drive the vehicle around the block and return to the same location.
  • Page 23 TROUBLESHOOTING APP WON’T CONNECT TO THE GAUGE Scale is connected to a constant power source: The gauge should never be connected to a constant power source, rewire so that it is connected to a switched power source. If the gauge is powered too long it can stop transmitting a Bluetooth signal and may need to be disconnected and reconnected to work again.

  • Page 24: Appendix A - Additional Parts

    The following is a list of additional parts needed for air line installation. This list is just a suggestion and may not be all of the parts needed for your specific vehicle. Check with your Right Weigh dealer for optional installation kits. 1/4 Inch Air Line...

  • Page 25: Appendix B - Wiring Insulation

    APPENDIX B It is very important that all wiring connections be made watertight. Connections which are not watertight can allow moisture to travel through the individual strands of the wires and make it’s way into the scale, causing permanent damage to the electronics. Heat shrinkable splices are included in the 201-SK Installation Kit.

  • Page 26: Warranty Statement

    Right Weigh, Inc. product. In all cases, Right Weigh, Inc. liability will be limited to the original cost of the product in question. Right Weigh, Inc. reserves the right to make improvements in design, construction, and appearance of products without notice.

  • Page 27: Return Policy & Repairs

    Right Weigh, Inc. will return the product at its expense via a shipping method (carrier to be at sole discretion of Right Weigh, Inc.) equal to or faster than the method used by the customer.
  • Page 28 For additional support contact: United States and Canada: Right Weigh, Inc. (503) 628-0838 (888) 818-2058 - Toll Free (USA ONLY) www.rwls.com support@rwls.com ©2015-2020 Right Weigh, Inc. All rights reserved.

This manual is also suitable for:

201-ebt-01b201-ebt-02201-ebt-02b
