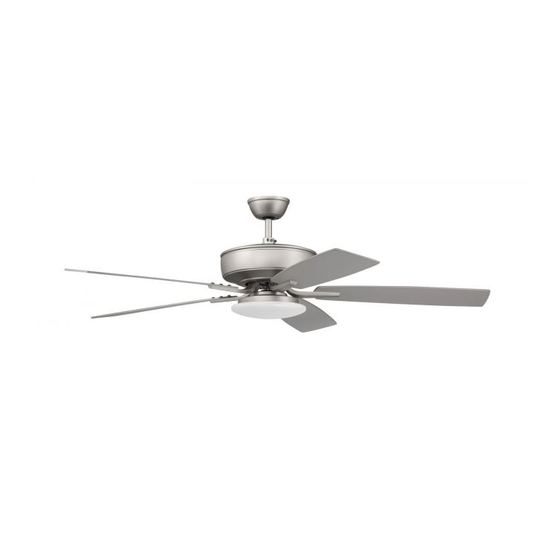

Pro Plus 52" LED with Wall Control

Installation Guide

For model:

P112

E192641

net weight of fan: 15.41 lb (6.99 kg)

READ THESE INSTRUCTIONS AND

Need help?

Do you have a question about the Pro Plus P112 and is the answer not in the manual?

Questions and answers

Summary of Contents for Craftmade Pro Plus P112

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Pro Plus 52” LED with Wall Control Installation Guide For model: Table of Contents: P112 Safety Tips. pg. 2 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 Installation Preparation. pg. 4 Hanging Bracket Installation.
Page 2: Safety Tips
(2) this LED light kit must accept any interference received, including interference that may cause undesired operation. Distributed by: Craftmade, 650 S. Royal Lane, Coppell, TX, 75019; 1-800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur.
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, inches ensure that the hanging location allows the 7 feet (76cm) blades a clearance of 7 feet (2.13m) from the (2.13m) floor and 30in. (76cm) from any wall or obstruction.
Page 5: Fan Assembly. Pgs
stop pin 5. Fan Assembly. set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Lower hanging ball hanging ball and remove stop pin and then slide hanging ball off of the downrod. [Refer to diagram 1.] diagram 1 Loosen yoke set screws and nuts at top of motor...
Page 6: Wiring. Pgs
5. Fan Assembly. (cont.) With the hanging bracket secured to the outlet box and able to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket tab hanging bracket and let hanging ball rest on the hanging ball slot hanging bracket.
Page 7: Canopy Assembly
6. Wiring. Modifications not approved by the party responsible for compliance Remove existing wall switch. could void the user's authority to operate the equipment. *NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
Page 8: Blade Assembly
8. Blade Assembly. blade attachment screws/washers WARNING: To reduce the risk of serious bodily injury, DO NOT use power tools to assemble the blades. If screws are overtightened, blades may crack and break. motor housing Time Saver: Washers for blade screws can be set on each blade screw prior to installing blades.
Page 9: Wall Control Operation
10. Wall Control Operation. slide switch for fan L1 - turns fan to LOW speed L2 - turns fan to MEDIUM-LOW speed M - turns fan to MEDIUM speed H - turns fan to HIGH speed O - fan is OFF slide switch for light controls dimming capability for light slide switch...
Page 10: Troubleshooting
Service at 1-800-486-4892 to arrange for return of fan. 2.Verify that wall control is wired properly. Return fan, shipping prepaid, to Craftmade. We will repair 3. Check to be sure fan is wired properly. or ship you a replacement fan, and we will pay the return shipping cost.
