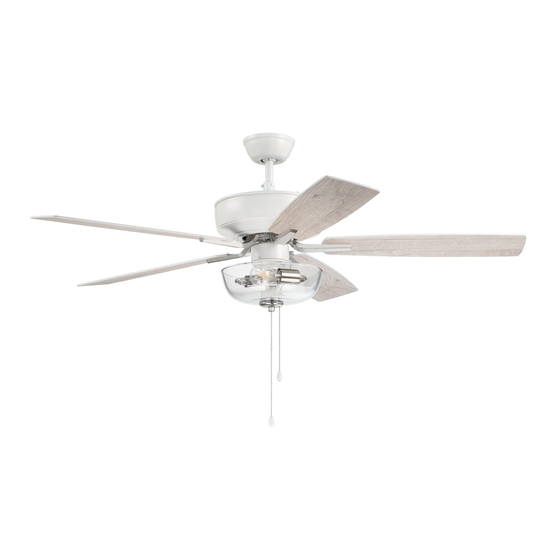

Pro Plus 52" with Light Kit
Installation Guide
For models:
P101
P104
P114
P211
E192641
net weight of fans: 19.71 lb (8.94 kg)--P101
18.74 lb (8.5 kg)--P104
18.52 lb (8.4 kg)--P114
16.2 lb (7.35 kg)--P211
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE
Table of Contents:
Safety Tips. pg. 2
Unpacking Your Fan. pg. 3
Parts Inventory. pg. 3
Installation Preparation. pg. 4
Hanging Bracket Installation. pg. 4
Fan Assembly. pgs. 5 - 6
Wiring. pg. 6
Canopy Assembly. pg. 7
Blade Assembly. pg. 7
Testing Your Fan. pg. 10
Troubleshooting. pg. 11
Parts Replacement. pg. 11
Warranty. pg. 11
page 1
PRINTED IN CHINA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Craftmade Pro Plus P101
Summary of Contents for Craftmade Pro Plus P101
-
Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Pro Plus 52” with Light Kit Installation Guide For models: Table of Contents: P101 Safety Tips. pg. 2 P104 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 P114 Installation Preparation. pg. 4 P211 Hanging Bracket Installation. -
Page 2: Safety Tips
(2) this LED light kit must accept any interference received, including interference that may cause undesired operation. Distributed by: Craftmade, 650 S. Royal Lane, Coppell, TX, 75019; 1-800-486-4892 NOTE: The important safety precautions and instructions appearing in the manual are not meant to cover all possible conditions and situations that may occur. -
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs. Check against parts inventory that all parts have been included. -
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, inches ensure that the hanging location allows the 7 feet (76cm) blades a clearance of 7 feet (2.13m) from the (2.13m) floor and 30in. (76cm) from any wall or obstruction. -
Page 5: Fan Assembly. Pgs
stop pin 5. Fan Assembly. set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Lower hanging ball hanging ball and remove stop pin and then slide hanging ball off of the downrod. [Refer to diagram 1.] diagram 1 Loosen yoke set screws and nuts at top of motor... -
Page 6: Wiring
5. Fan Assembly. (cont.) With the hanging bracket secured to the outlet box and able to support the fan, you are now ready to hang your fan. Grab the fan firmly with hanging bracket tab two hands. Slide downrod through opening in hanging bracket and let hanging ball rest on the hanging ball slot hanging bracket. -
Page 7: Canopy Assembly
7. Canopy Assembly. hanging bracket Locate 2 screws on underside of hanging bracket and remove screw closest to the open end of the hanging bracket. Partially loosen the other screw. Lift canopy to hanging screw bracket. Place rounded part of slotted hole in canopy over loosened screw in hanging canopy bracket and push up. -
Page 8: Light Kit Assembly, 1-Light Options
*For Models P101 and P211, follow instructions on this page. *For Models P104 and P114, proceed to instructions on page 19. 9. Light Kit Assembly, 1-light Options. motor housing Remove 3 screws from switch housing cap (at top of light kit fitter). Locate BLUE (or BLACK) and WHITE wires in switch housing labeled FOR LIGHT KIT CONNECTION. -
Page 9: Light Kit Assembly, 4-Light Options
*For Models P104 and P114, follow instructions on this page. 10. Light Kit Assembly, 4-light Options. motor housing Remove 3 screws from top of light kit fitter. Locate BLUE (or BLACK) and WHITE wires in switch housing labeled FOR LIGHT KIT CONNECTION. -
Page 10: Testing Your Fan
11. Testing Your Fan. It is recommended that you test fan before finalizing installation. Restore power from circuit box and light switch (if applicable). Test fan speeds with the pull chain on the switch housing. Start at the OFF position (no blade movement). -
Page 11: Troubleshooting
Service at 1-800-486-4892 to arrange for return of fan. 1. Check wall switch to fan. Return fan, shipping prepaid, to Craftmade. We will repair 2. Verify that reverse switch is set completely in or ship you a replacement fan, and we will pay the return either direction.
