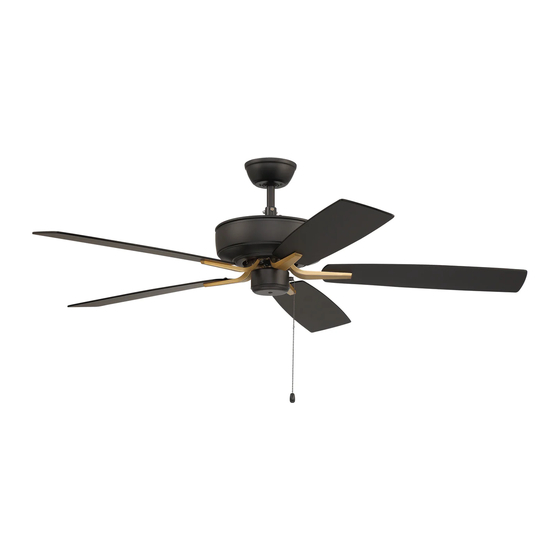

Pro Plus 52"
Installation Guide
For model:
P52
E192641
net weight of fan: 14.01 lb (6.35 kg)
READ THESE INSTRUCTIONS AND
SAVE THEM FOR FUTURE USE

Table of Contents:

Wiring. pg. 6
Warranty. pg. 9
page 1
PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro Plus P52 and is the answer not in the manual?

Questions and answers

Related Manuals for Craftmade Pro Plus P52

Summary of Contents for Craftmade Pro Plus P52

  • Page 1: Table Of Contents

    READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Pro Plus 52” Installation Guide For model: Table of Contents: Safety Tips. pg. 2 Unpacking Your Fan. pg. 3 Parts Inventory. pg. 3 Installation Preparation. pg. 4 Hanging Bracket Installation. pg. 4 Fan Assembly.

  • Page 2: Safety Tips

    SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.

  • Page 3: Unpacking Your Fan

    1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.

  • Page 4: Installation Preparation

    3. Installation Preparation. blade edge To prevent personal injury and damage, inches ensure that the hanging location allows the 7 feet (76cm) blades a clearance of 7 feet (2.13m) from the (2.13m) floor and 30in. (76cm) from any wall or obstruction.

  • Page 5: Fan Assembly. Pgs

    stop pin 5. Fan Assembly. set screw Remove hanging ball from downrod provided by loosening set screw on hanging ball. Lower hanging ball hanging ball and remove stop pin and then slide hanging ball off of the downrod. [Refer to diagram 1.] diagram 1 Loosen yoke set screws and nuts at top of motor...

  • Page 6: Wiring

    5. Fan Assembly. (cont.) With the hanging bracket secured to the outlet box and able to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through opening in hanging bracket hanging bracket tab and let hanging ball rest on the hanging bracket.

  • Page 7: Canopy Assembly

    7. Canopy Assembly. hanging bracket Locate 2 screws on underside of hanging bracket and remove screw closest to the open end of the hanging bracket. Partially loosen the other screw. Lift canopy to hanging screw bracket. Place rounded part of slotted hole in canopy over loosened screw in hanging canopy bracket and push up.

  • Page 8: Testing Your Fan

    9. Testing Your Fan. motor housing It is recommended that you test fan before finalizing installation. Restore power from circuit box and light switch (if applicable). Test fan speeds with the pull chain. Start at reverse the OFF position (no blade movement). switch First pull will set the fan to HI.

  • Page 9: Troubleshooting

    Contact Craftmade Customer Solutions: Service at 1-800-486-4892 to arrange for return of fan. Return fan, shipping prepaid, to Craftmade. We will repair 1. Check wall switch to fan. or ship you a replacement fan, and we will pay the return 2.
