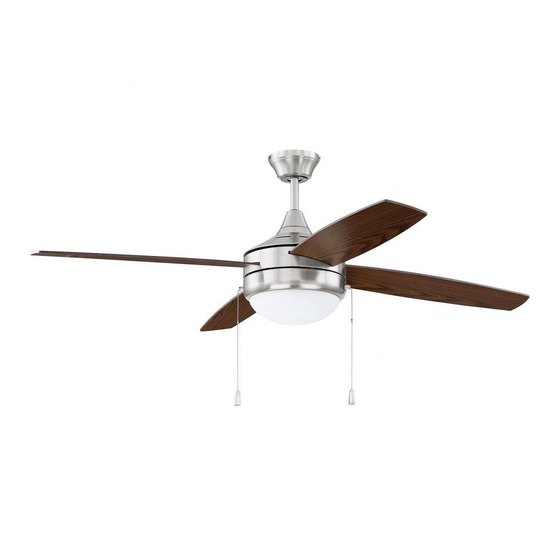

Craftmade Phaze PHA52 Installation Manual

Hide thumbs Also See for Phaze PHA52:

Installation manual (10 pages)

Table of Contents

Quick Links

Phaze

Installation Guide

For Model:

PHA52

net weight of 3 blades fan: 15.21 lb (6.9 kg)

net weight of 4 blades fan: 16.53 lb (7.5 kg)

net weight of 5 blades fan: 17.64 lb (8 kg)

READ THESE INSTRUCTIONS AND

SAVE THEM FOR FUTURE USE

Need help?

Do you have a question about the Phaze PHA52 and is the answer not in the manual?

Questions and answers

Summary of Contents for Craftmade Phaze PHA52

Page 1: Table Of Contents
READ THESE INSTRUCTIONS AND SAVE THEM FOR FUTURE USE Phaze Installation Guide For Model: PHA52 Table of Contents: Safety Tips. pg. 1 Unpacking Your Fan. pg. 2 Parts Inventory. pg. 2 Installation Preparation. pg. 3 Hanging Bracket Installation. pg. 3 Fan Assembly.
Page 2: Safety Tips
SAFETY TIPS. WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories. READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.
Page 3: Unpacking Your Fan
1. Unpacking Your Fan. Carefully open the packaging. Remove items from Styrofoam inserts. Remove motor housing and place on carpet or Styrofoam to avoid damage to finish. Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.
Page 4: Installation Preparation
3. Installation Preparation. blade edge To prevent personal injury and damage, ensure inches 7 feet that the hanging location allows the blades a (2.13 m) (76 cm) clearance of 7 feet (2.13m) from the floor and 30in. (76cm) from any wall or obstruction. This fan is suitable for room sizes up to 400 square 12ft.
Page 5: Fan Assembly. Pgs
5. Fan Assembly. Remove 6 screws and washers from yoke plate (located on top plate on top of motor housing) and set aside. Lift yoke plate and top plate to remove from motor housing and set yoke plate aside. Time Saver: Washers can be set on each blade plate screw prior to installing blades.
Page 6 5. Fan Assembly. (cont.) set screw stop pin Remove hanging ball from downrod provided by loosening set screw on hanging ball. Remove pin and clip. Lower hanging ball and remove stop pin. hanging ball Slide hanging ball off of the downrod. [Refer to diagram 1.] clip Loosen yoke set screws and nuts at top of motor...
Page 7: Fan Assembly (Flushmount)
5. Fan Assembly. (cont.) safety cable loop wood ceiling With the hanging bracket secured to the outlet box and joist able to support the fan, you are now ready to hang your fan. Grab the fan firmly with two hands. Slide downrod through wood screw opening in hanging bracket and let hanging ball rest on the and washer...
Page 8: Wiring
7. Wiring. CAUTION: Be sure outlet box is properly grounded white supply wire and that a ground wire (GREEN or Bare) is present. ground (green or bare) black supply wire Make sure all electrical connections comply with Local Codes or Ordinances and the National Electrical Code.
Page 9: Light Kit Assembly
9. Light Kit Assembly. motor housing Install two 9 watt medium base LED bulbs (included). IMPORTANT: When replacing bulbs, please allow bulbs and glass shade to cool down before touching. Align grooves on glass shade with nodules on inside edge of light kit fitter and push up gently on glass shade.
Page 10: Troubleshooting
Service at 1-800-486-4892 to arrange for return of fan. 1. Check wall switch to fan. Return fan, shipping prepaid, to Craftmade. We will repair 2. Verify that reverse switch is set completely in or ship you a replacement fan, and we will pay the return either direction.
