Lightronics FXLE30C4N Owner's Manual

Version 1.0
FEATURES AND SPECIFICATIONS
LEDs: 300 Watt 4-in-1 Quad-Color, RGBW array
White Color Temperature: 2950K – 10800K
CRI: 93 CQS: 92
Beam Angle: 19º, 26º or 36º
Control System: DMX512 + Stand Alone
DMX Channels: 4 or 9 channel mode
DMX Connectors: 3 pin XLR I/O
Power Input: 100-230VAC, 50/60Hz
Max. Power Consumption: 330 Watts @ 120VAC
Standby Power Consumption: 6 Watts @ 120VAC
Body Material: All Metal Construction
Body Color: Black or White Available
Reflector: Glass
Gel Frame and Size "B" Gobo Holder Included
FX Accessory Slot
Sliding Yoke Assembly on 12.75" Track
Size: 28"L x 13.5"W x 20"H (with yoke)
Weight: 23 lbs.
DESCRIPTION

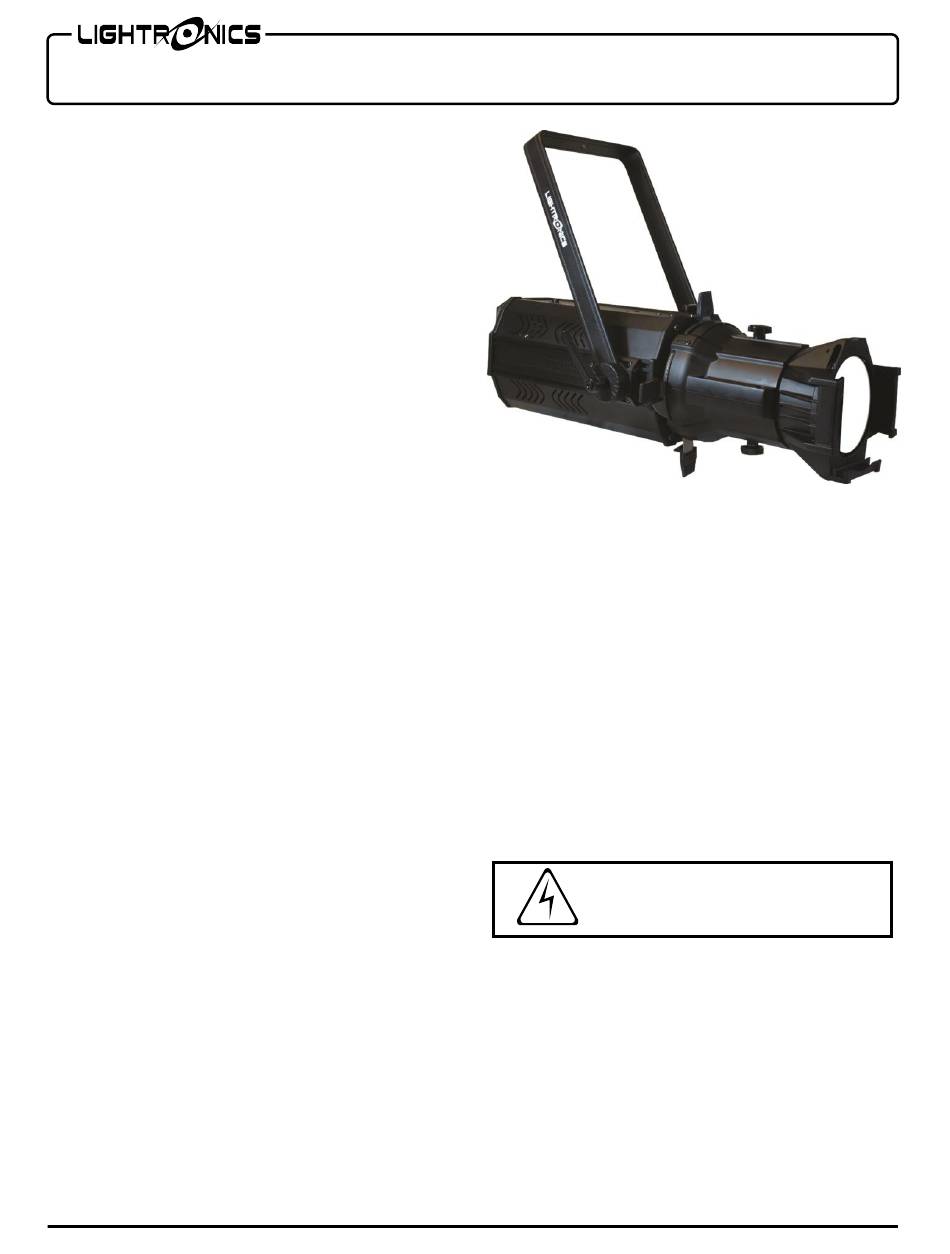

The FXLE30C4N is a four color LED ellipsoidal fixture
that is suitable for stage, houses of worship,
entertainment venues and other artistic applications. It
has automatic stand-alone control modes and can
operate via an external DMX512 signal.
A mounting yoke enables the fixture to be installed and
operated in various positions and orientations.
INSTALLATION
LOCATION
The FXLE30C4N is rated IP20 and is intended for
INDOOR USE ONLY.
Locate the unit in a well-ventilated area away from
moisture or heat. Maintain a minimum spacing of 20"
between the unit and other objects.
ambient operating temperature is 40ºC (104ºF). Keep
the vent holes clear. Holes are provided on the yoke to
install a traditional lighting C-clamp for mounting on
batten pipe. Use a safety cable attached to the safety
eye when hanging the fixture.
GOBO/FX SLOT ALIGNMENT
To rotate barrel, loosen the two 3mm hex socket head
cap screws on both sides of body behind the shutter
handles. Then loosen both adjustment knobs at top
and bottom of fixture behind the shutter handles. Once
the GOBO or FX slot is aligned, retighten screws and
knobs.
www.lightronics.com
Lightronics Inc.
FXLE30C4N LED FIXTURE
OWNERS MANUAL
LENS TUBE ADJUSTMENT
To focus beam, loosen the knobs on the top and
bottom of the barrel, extend/retract tube as needed for
intended beam and tighten knobs. Support lens tube in
process.
YOKE ADJUSTMENT
To slide yoke along track, loosen 4 screws on both
side brackets with a #2 Phillips screwdriver, adjust
yoke and retighten screws once in desired location.
POWER CONNECTIONS
The FXLE30C4N has a line cord for connection to a
100-230 VAC, 50/60Hz, grounded service. Do not
power the unit from a dimmer pack.
The maximum
When using 120VAC, only connect a maximum of
four FXLE30C4N fixtures together with power
connectors.
The safety ground pin on the power cord must be
used.
DMX CONNECTIONS
A system using DMX control should be connected as a
chain of devices.
