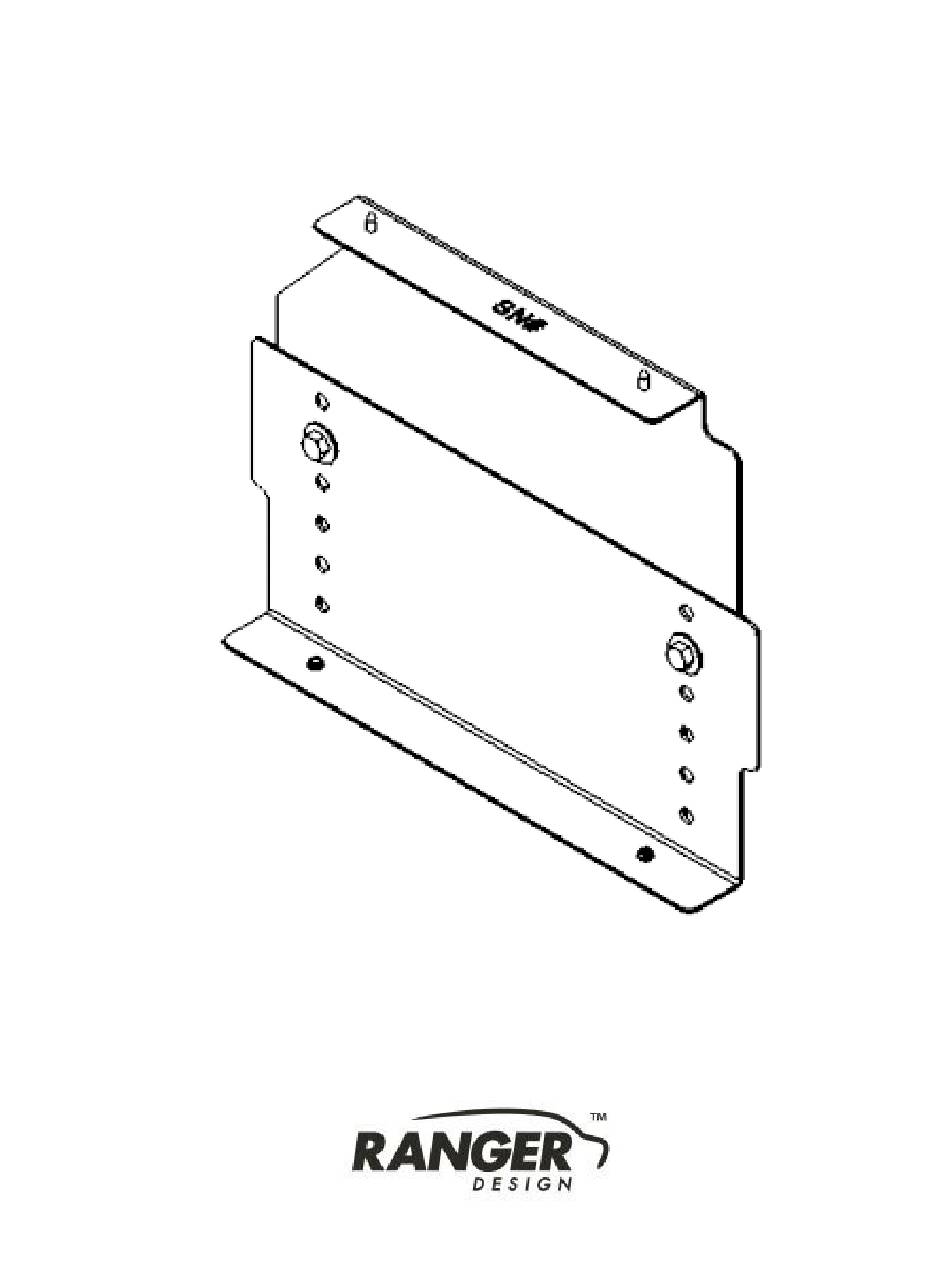

- Page 1 INSTALLATION GUIDE 70-U7740 Universal Shelf Block Regular Depth Shelving...
- Page 2 Shelf block - Universal bottom 94-122 Nut acorn 5/16"-18 zinc 94-6029 Sub-Assembly Customer Fastener Kit 92-204 96-6029 Sub-Assembly Customer Tapping screw HWH tap AB #8x1/2" zinc Fastener Kit For technical support, contact us at 1-800-565-5321 70-U7740 Installation Guide | REV.1...
- Page 3 ASSEMBLY STEP 1 70-025 Align the slots to the desired height of the blocker. 70-026 STEP 2 94-122 98-116 92-204 For technical support, contact us at 1-800-565-5321 70-U7740 Installation Guide | REV.1...
- Page 4 Use 4 screws to hold blocker in place. 92-204 “You have successfully installed your shelf blocker, thank you for doing business with us.” For any feedback or suggestions, you may have, please contact: cs@rangerdesign.com For technical support, contact us at 1-800-565-5321 70-U7740 Installation Guide | REV.1...
