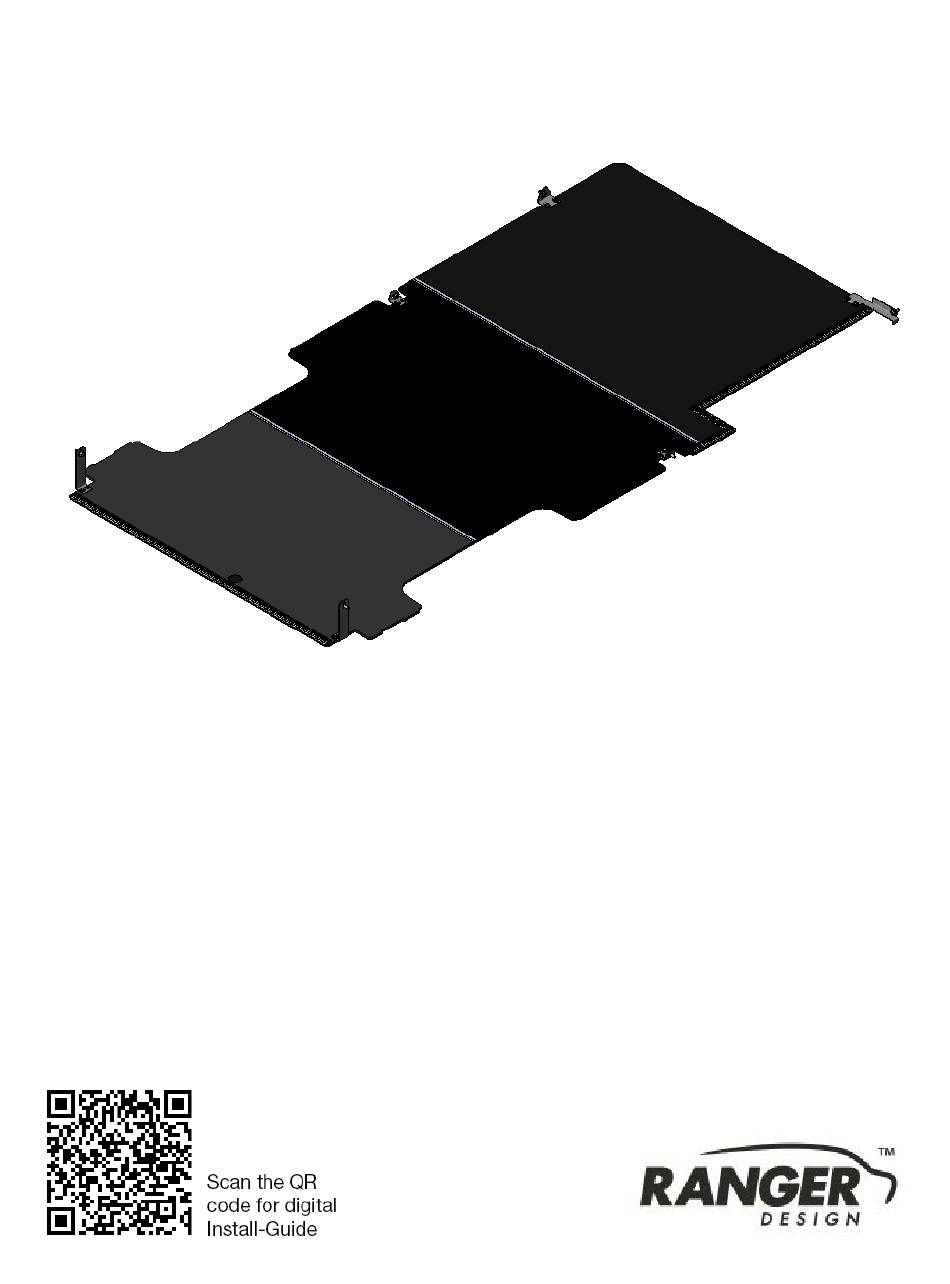

- Page 1 INSTALLATION GUIDE 6541-FTL No-Drill Floor Ford Transit 148"...
-
Page 2: Safety Instructions
PREPARATION Tools Needed 5/16” 3/8” 7/16” Drill Stop Marker Oscillatin Drill Rubber Mallet Impact Driver ½” Wrench Hex wrench Torx wrench Drill bit Collar g Tool ¾” socket For technical support, contact us at 1-800-565-5321 6541-FTL Installation Guide | REV.C... -
Page 3: Bill Of Materials
Snap-in Plug Zinc alloy tapping inserts for softwood, 71-286 Transit Floor Bracket 99-114 5/16 – 18, internal thread 94-6501 Assembly Fastener Kit 96-6500 6541 Series Floor Fastener Kit For technical support, contact us at 1-800-565-5321 6541-FTL Installation Guide | REV.C... - Page 4 EN-881x53.125 Note: Center EN-881x53.125 65-458 to the panels. Note: If ProPower unit is REAR installed, cut the floor panel using underside guidelines. For technical support, contact us at 1-800-565-5321 6541-FTL Installation Guide | REV.C...
- Page 5 Place shim (65-464) in place before placing and securing front floor panel. For technical support, contact us at 1-800-565-5321 6541-FTL Installation Guide | REV.C...
- Page 6 REAR 71-285 EN-884x60 71-291 Note: Cut as required Note: Align sill pieces and floor if the vehicle has a cutouts before installing. partition. Note: Center sill before installing. For technical support, contact us at 1-800-565-5321 6541-FTL Installation Guide | REV.C...
- Page 7 5/16” 99-114 7/16” Drill bit “You have successfully installed your 6541-FTL, thank you for doing business with us.” For any feedback or suggestions, you may have, please contact: cs@rangerdesign.com For technical support, contact us at 1-800-565-5321 6541-FTL Installation Guide |...
