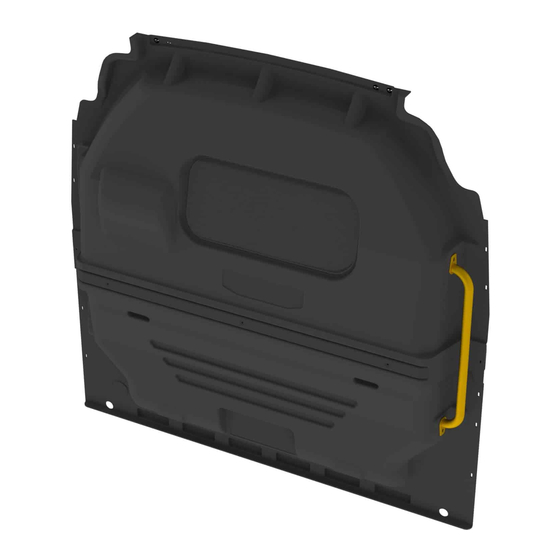

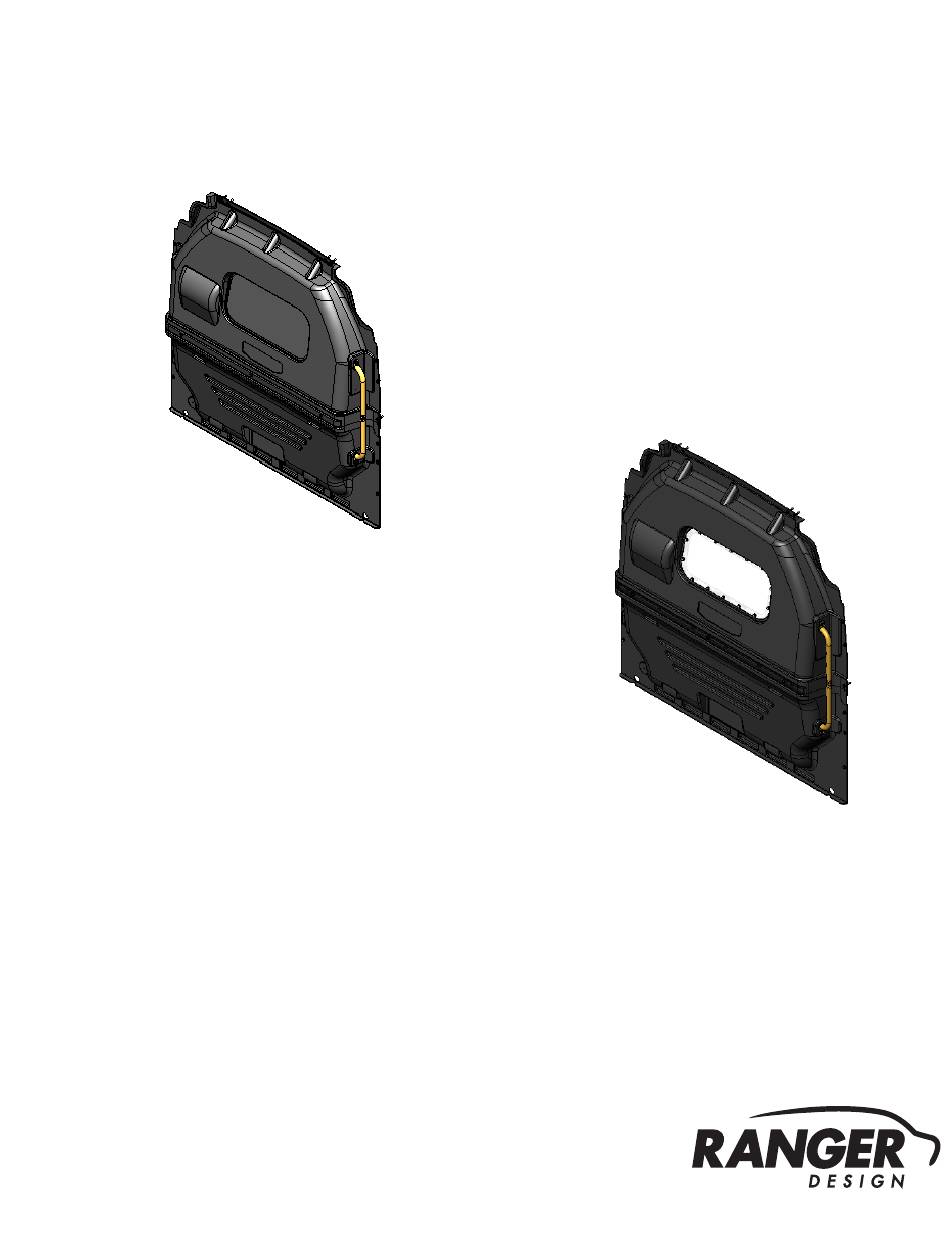

- Page 1 INSTALLATION GUIDE 3310-FTM 3320-FTM Composite Partition Ford Transit Medium Roof...
-
Page 2: Required Items
Plusnut Tool q Tape Measure q 3/8" Drill Bit q 7/16" Socket q 1/2" Socket q 9/16" Wrench q 10mm Socket PERSONS 3310-FTM & 3320-FTM Installation Guide | REV. A2 | Page 2 For technical support, contact us at 1-800-565-5321... -
Page 3: Phase 1 - Assembly
Bolt Cap 30-910 30-9300 Top Panel 30-920 Support 30-921 Handle Plate 6093-27 Large Grab Handle 94-5017 Assembly Fastener Kit 96-3040 Install Fastener Kit 3310-FTM & 3320-FTM Installation Guide | REV. A2 | Page 3 For technical support, contact us at 1-800-565-5321... -
Page 4: Hardware Assembly
#90-118 Hex Bolt 1/4" × 1-1/4" #90-971 Hex Bolt M6-1.0 × 20mm #98-118 Lock Washer #98-118 Lock Washer #98-112 Flat Washer #98-112 Flat Washer #94-130 Plusnut 3310-FTM & 3320-FTM Installation Guide | REV. A2 | Page 4 For technical support, contact us at 1-800-565-5321... - Page 5 #94-104 Hex Nut 1.2.2 Plug the Bolt cap to the partition using Christmas tree plug. HARDWARE USED 3× #99-109 Christmas tree plug 3310-FTM & 3320-FTM Installation Guide | REV. A2 | Page 5 For technical support, contact us at 1-800-565-5321...
-
Page 6: Vehicle Preparation
Remove the factory handle in the van. TOOLS q Plusnut Tool TOOLS HARDWARE USED q Cordless Impact 6× q 10mm Socket # 94-130 Plusnut .250 3310-FTM & 3320-FTM Installation Guide | REV. A2 | Page 6 For technical support, contact us at 1-800-565-5321... - Page 7 3/8" Drill Bit or Step Drill Attach plusnuts in the 4 holes. TOOLS HARDWARE USED q Plusnut Tool 4× # 94-130 Plusnut .250 3310-FTM & 3320-FTM Installation Guide | REV. A2 | Page 7 For technical support, contact us at 1-800-565-5321...
-
Page 8: Phase 2 - Installation
#90-118 Hex Bolt 1/4" × 1-1/4" #90-971 Hex Bolt M6-1.0 × 20mm #98-118 Lock Washer #98-118 Lock Washer #98-112 Flat Washer #98-112 Flat Washer 3310-FTM & 3320-FTM Installation Guide | REV. A2 | Page 8 For technical support, contact us at 1-800-565-5321... -
Page 9: Handle Installation
HARDWARE USED 2× grab handle fastener kit #90-206 Hex Bolt 5/16" × 1" #98-122 Lock Washer #98-116 Flat Washer #94-116 Serrated Nut 3310-FTM & 3320-FTM Installation Guide | REV. A2 | Page 9 For technical support, contact us at 1-800-565-5321... - Page 10 “You have successfully installed your Partition Thank you for doing business with us.” cs@rangerdesign.com For any feedback or suggestions you may have, please contact: 3310-FTM & 3320-FTM Installation Guide | REV. A2 | Page 10 For technical support, contact us at 1-800-565-5321...
