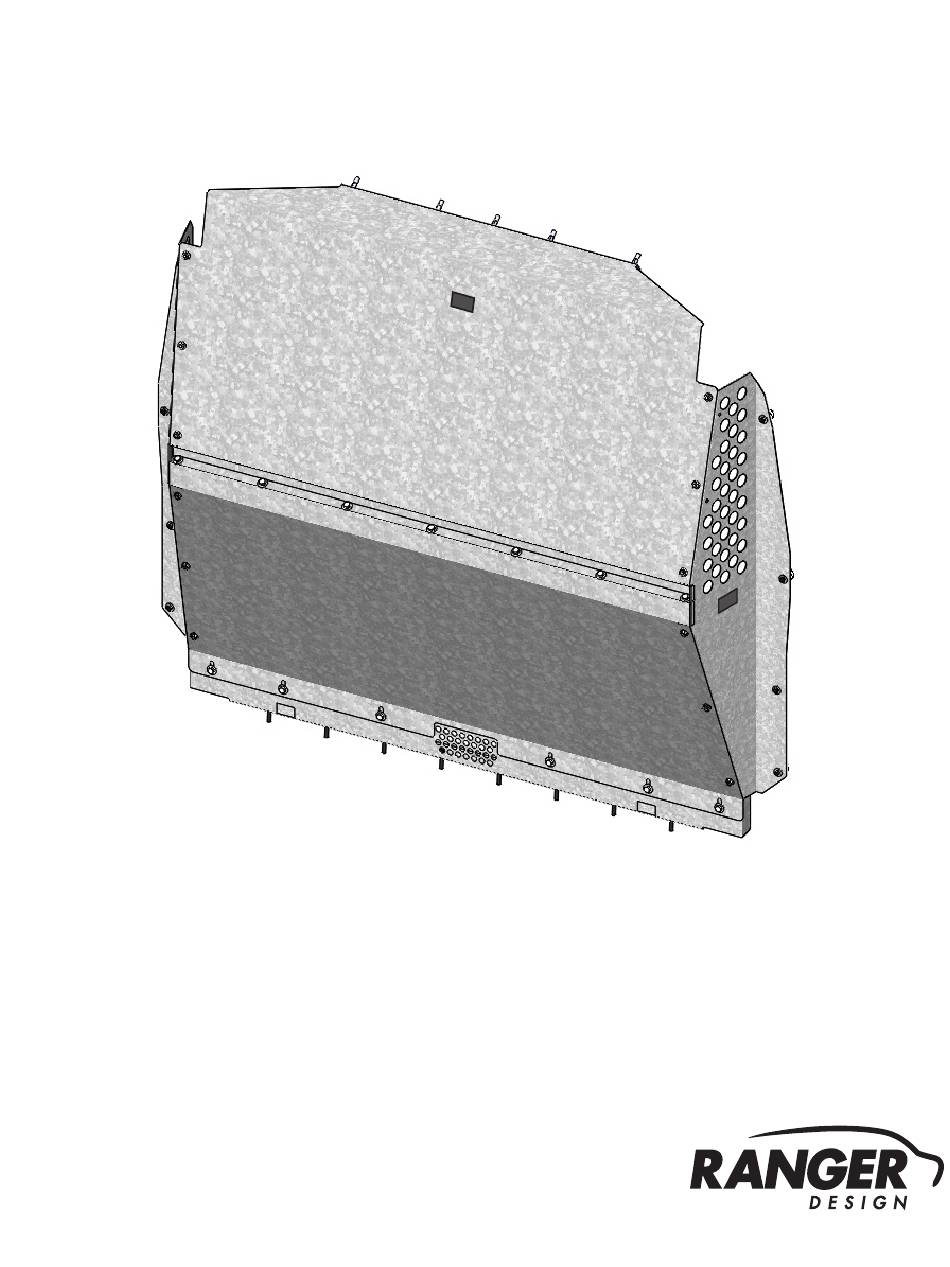

- Page 1 INSTALLATION GUIDE C12-PC CONTOURED PARTITION Promaster City ( Steel )
- Page 2 7/16" Socket q 10mm Socket q 13mm Socket q T30 Torque Bit q T40 Torque Bit q 9/16" Wrench PERSONS q 1" Holesaw C12-PC Installation Guide | REV. C1 | Page 2 For technical support, contact us at 1-800-565-5321...
- Page 3 Driver Side Wing 30-064 Floor Bracket 30-500 Edge Trim ( QTY in Inches ) 79-907 Warning Label 94-3010 Assembly Fastener Bag 96-3012 Installation Fastener Bag C12-PC Installation Guide | REV. C1 | Page 3 For technical support, contact us at 1-800-565-5321...
- Page 4 # 98-157 0.375" ID, × 1.0" OD × 0.25" L #98-158 Retaining Washer NYLON Retaining Washer 8× 8× # 98-158 M16 ( 1/4") NYLON C12-PC Installation Guide | REV. C1 | Page 4 For technical support, contact us at 1-800-565-5321...
- Page 5 PHASE 1 – FOR PROMASTER CITY 2021+ ONLY 1.1.4 To clear the airbag brackets, cut both sides of the top edges, as shown. C12-PC Installation Guide | REV. C1 | Page 5 For technical support, contact us at 1-800-565-5321...
- Page 6 1.2.1 Remove all the PVC from all the parts, then attach the upper panel to the lower panel. TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 7× #90-200 Hex Bolt 5/16" × 1/2" #98-116 Flat Washer #94-116 Serrated Nut C12-PC Installation Guide | REV. C1 | Page 6 For technical support, contact us at 1-800-565-5321...
- Page 7 1.2.3 Attach both wings to the upper and lower panels. TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 12× #90-200 Hex Bolt 5/16" × 1/2" #98-116 Flat Washer #94-116 Serrated Nut C12-PC Installation Guide | REV. C1 | Page 7 For technical support, contact us at 1-800-565-5321...
- Page 8 7/16" socket until the plusnut locks, then remove the bolt by turning the impact in reverse. FORWARD REVERSE C12-PC Installation Guide | REV. C1 | Page 8 For technical support, contact us at 1-800-565-5321...
- Page 9 Tape or roll the cable. NOTE: Pulling the cable unlocked the door. C12-PC Installation Guide | REV. C1 | Page 9 For technical support, contact us at 1-800-565-5321...
- Page 10 NOTE: Do these on both sides of the van. TOOLS q Cordless Impact or Ratchet q Philips Screw Driver q 7/16" Socket C12-PC Installation Guide | REV. C1 | Page 10 For technical support, contact us at 1-800-565-5321...
- Page 11 1" holesaw. TOOLS q Cordless Drill q Knife q 1" Holesaw C12-PC Installation Guide | REV. C1 | Page 11 For technical support, contact us at 1-800-565-5321...
- Page 12 Remove plastic caps and the two D-rings from vehicle floor, then verify if the threads are in good condition. TOOLS q Cordless Impact q T40 Torque Bit C12-PC Installation Guide | REV. C1 | Page 12 For technical support, contact us at 1-800-565-5321...
- Page 13 2.3.1 Attach the floor bracket in the van. TOOLS q Cordless Impact q 13mm Socket HARDWARE USED 8× #90-668 Hex Bolt M8 × 40 #98-122 Lock Washer #98-116 Flat Washer C12-PC Installation Guide | REV. C1 | Page 13 For technical support, contact us at 1-800-565-5321...
- Page 14 HARDWARE USED 8× #90-836 Hex Bolt M6 " × 40 #98-118 Lock Washer #98-112 Flat Washer #98-157 Spacers ( 3 ) #98-158 Retaining Washer C12-PC Installation Guide | REV. C1 | Page 14 For technical support, contact us at 1-800-565-5321...
- Page 15 #90-118 Hex Bolt 1/4" × 1-1/4" #90-200 Hex Bolt 5/16" × 1/2" #98-116 Flat Washer #98-118 Lock Washer #94-116 Serrated Nut #98-112 Flat Washer C12-PC Installation Guide | REV. C1 | Page 15 For technical support, contact us at 1-800-565-5321...
- Page 16 2.3.4 Apply the warning label on the upper panel. NOTE: Put the warning label in a place where it’s easy to see. C12-PC Installation Guide | REV. C1 | Page 16 For technical support, contact us at 1-800-565-5321...
- Page 17 “Congratulations, you have successfully installed your Contoured Partition! Thank you for doing business with us. ” C12-PC Installation Guide | REV. C1 | Page 17 For technical support, contact us at 1-800-565-5321...
