- Page 1 ACCESS STOW OPERATOR'S MANUAL...
-
Page 2: Loading Instructions

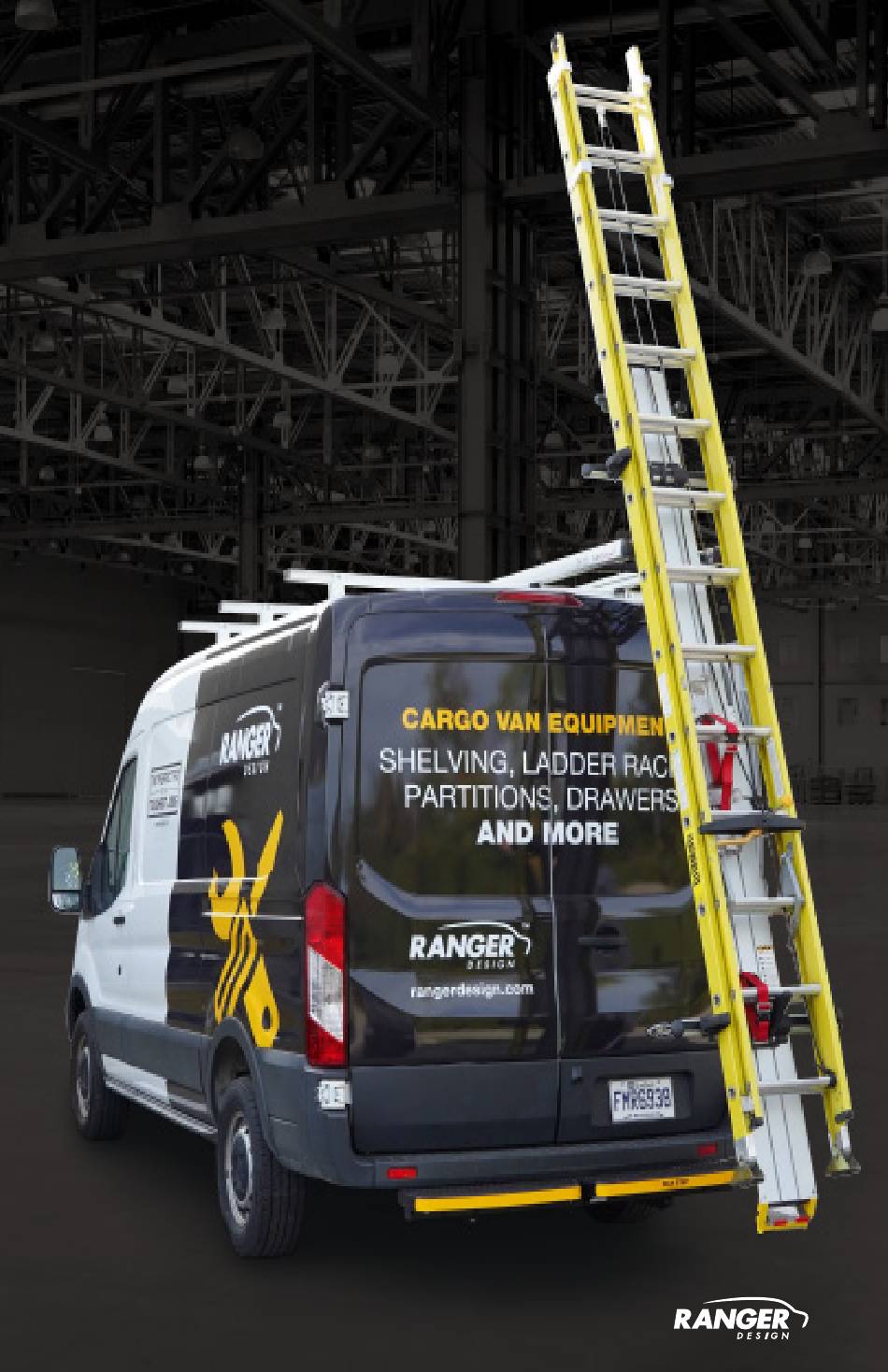

ACCESS STOW LOADING INSTRUCTIONS Release the latch and pull the system out. • CAREFULLY place ladder onto the system. DO NOT DROP! • Pull strap upwards to tighten, DO NOT USE beltstow when storing ladder. 1-800-565-5321 rangerdesign.com... - Page 3 Set Load Stops against the side of the ladder. • Set as shown and tighten bolts to 12Nm. Highest rung within reach. • Pull strap downwards to tighten, DO NOT USE beltstow when storing ladder.
- Page 4 ACCESS STOW OPERTING INSTRUCTIONS LOWER LADDER Release the latch and pull the system out. Pull down. Beware of overhead obstructions. 1-800-565-5321 rangerdesign.com...
- Page 5 RAISE LADDER Pull up. Beware of overhead obstructions. Push forward untill the latches are engaged...
-
Page 6: Setup Instructions
SETUP INSTRUCTIONS & s ptimum djustment etup The Access Stow setup is influenced and effected by the following physical factors: 1. Ladder weight 2. Ladder Height 3. Quantity of ladder ( i.e 1 or 2 ladders, if applicable ) To provide optimum performance of your ladder lift assistance &... - Page 7 RAM P & m romAster edium rAnsit & n printer rAnsit issAn...
- Page 8 ACCESS STOW ANTI THEFT INSTRUCTIONS Fit single SafeClamp as shown. MIN. 47" Fit Double SafeClamp as shown. There is a location for a padlock if desired. (Padlock not provided). 1-800-565-5321 rangerdesign.com...
- Page 9 ACCESS STOW MAINTINANCE INSTRUCTIONS Apply oil to pivot points when required. ACCESS STOW WARNING DO NOT climb on the system. The system will carry a maximum of triple section ladder.
- Page 10 CONTACT US cs@rangerdesign.com 1-800-565-5321 rangerdesign.com...
