SCANNING MADE SIMPLE
EM27
OEM Scan Engine
integration guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM27 and is the answer not in the manual?

Questions and answers

Summary of Contents for Newland EM27

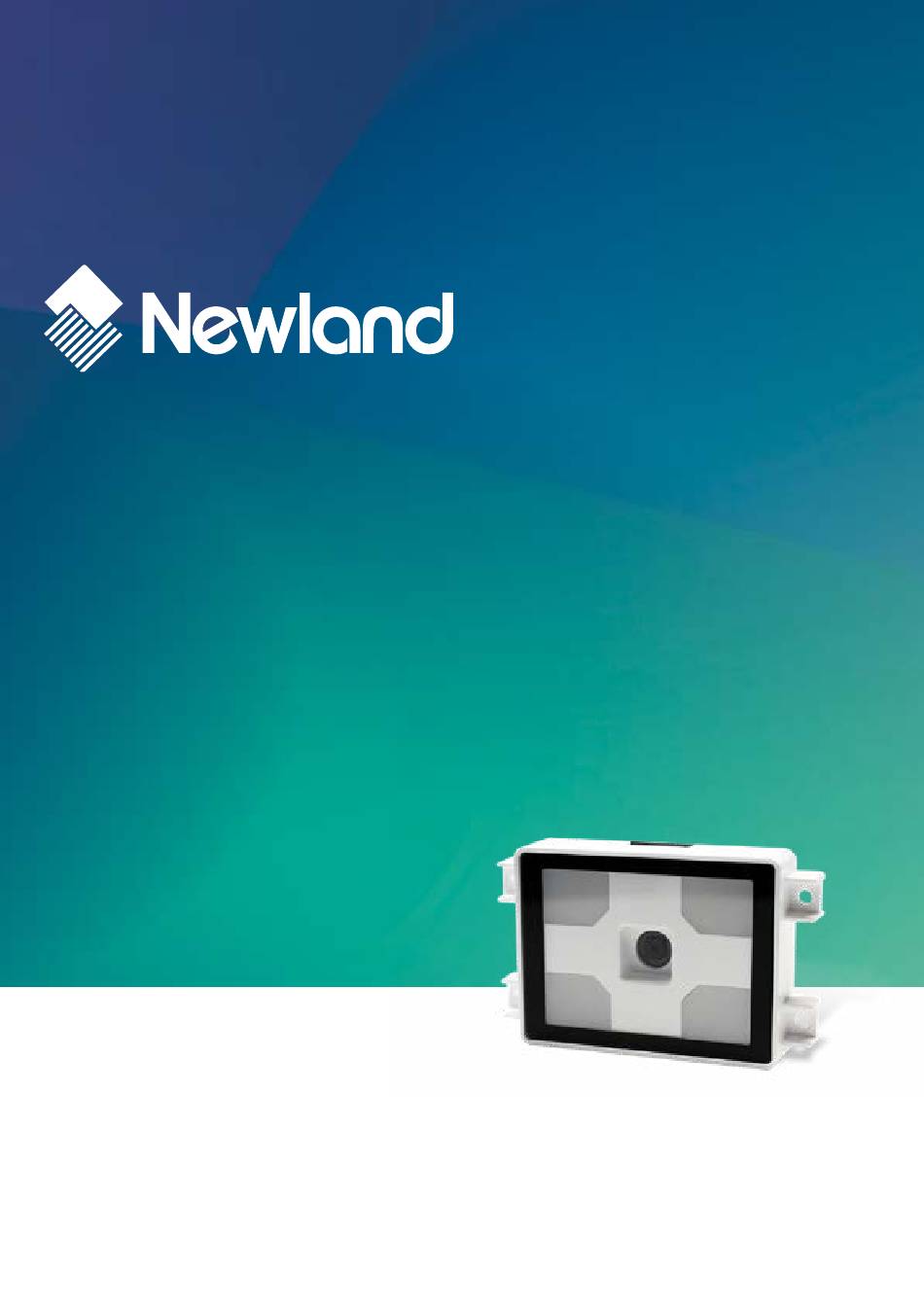

  • Page 1 SCANNING MADE SIMPLE EM27 OEM Scan Engine integration guide...
  • Page 2 All pictures in this manual are for reference only and actual product may differ. Regarding to the product modification and update, Fujian Newland Auto-ID Tech. Co., Ltd. reserves the right to make changes to any software or hardware to improve reliability, function, or design at any time without notice.
  • Page 3: Revision History

    Revision History Version Description Date V1.0.0 Initial release. April 6, 2021 V1.0.1 Updated the 8-pin Box Connector section in Chapter 3. May 12, 2021...
  • Page 5: Table Of Contents

    Table of Contents Revision History ..................................- 3 - About This Guide..................................1 Introduction ..................................1 Chapter Description ................................1 Explanation of Symbols ..............................1 Related Documents ................................2 Chapter 1 Getting Started ................................3 Introduction ..................................3 Illumination ..................................4 Buzzer ....................................
  • Page 6 8-pin Box Connector .............................. 14 Dedicated Cable for 8-pin Box Connector ......................15 Chapter 4 Electrical Specifications ............................17 Power Supply ................................. 17 DC Characteristics ................................. 17 Operating Voltage ..............................17 Ripple Noise................................18 I/O Voltage ................................18 Operating Current ..............................19 Timing Sequence ................................
  • Page 7: About This Guide

    About This Guide Introduction The NLS-EM27 OEM scan engines (hereinafter referred to as “the EM27” or “the engine”) are armed with CMOS image capturer and the Newland patented , a computerized image recognition system-on-chip, featuring fast scanning and accurate decoding on barcodes on virtually any medium-paper, mobile phones and merchandise. The EM27 can be easily integrated into OEM equipment or systems, such as handheld, portable, or stationary barcode scanners.
  • Page 8: Related Documents

    Related Documents • 8-pin box connector specification, Xiamen PinToPin Electronic Technology Co.,Ltd., Model: 1.0T-8AWB, http://www.ptpxm.com/...
  • Page 9: Chapter 1 Getting Started

    Chapter 1 Getting Started Introduction The EM27 is an area image engine for barcode reading. It includes four illumination LEDs and a 8-pin box connector. LED Compliance Statement The EM27 complies with IEC 62471:2006 for LED safety. The EM27 contains: •...
  • Page 10: Illumination

    Buzzer The EM27 provides a buzzer to indicate power-on and good read statuses. The Power On Beep and Good Read Beep can be programmed On or Off, and the Good Read Beep Volume, Duration and Frequency are also programmable by the user.
  • Page 11: Chapter 2 Installation

    Dust and Dirt The EM27 must be sufficiently enclosed to prevent dust particles from gathering on the lens and circuit board. Dust and other external contaminants will eventually degrade the engine’s performance.
  • Page 12: Thermal Considerations

    Thermal Considerations Electronic components in the EM27 will generate heat during the course of their operation. Operating the EM27 in continuous mode for an extended period may cause temperatures to rise on CPU, CIS, LEDs, etc. Overheating can degrade image quality and affect scanning performance. Given that, the following precautions should be taken into consideration when integrating the EM27.
  • Page 13: Mounting

    Mounting The illustrations below show the mechanical mounting dimensions (unit: mm) for the EM27. Figure 2-1 Housing Design ※ Note: Conduct an optical analysis for the housing design to ensure optimal scanning and imaging performance. Housing design should make sure that internal reflections from the aiming and illumination system are not directed back to the engine.
  • Page 14: Optics

    Optics The EM27 uses a sophisticated optical system. An improperly designed internal housing or improper selection of window material can degrade the engine’s performance. Window Placement The window should be positioned properly to let the illumination and aiming beams pass through as much as possible and no reflections back into the engine (reflections can degrade the reading performance).
  • Page 15: Coatings And Scratch Resistance

    Coatings and Scratch Resistance Scratch on the window can greatly reduce the performance of the EM27. It is suggested to use abrasion resistant window material or coating. The following introduces two commonly-used types of coatings: •...
  • Page 16: Window Size

    Window Size The window must not block the field of view and should be sized to accommodate the FOV envelopes shown below. Horizontal: Figure 2-3 Vertical: Figure 2-4...
  • Page 17: Roll, Skew And Pitch

    Eye Safety The EM27 has no lasers. It uses LEDs to produce illumination beam. The LEDs are bright, but testing has been done to demonstrate that the engine is safe for its intended application under normal usage conditions. However, the user should...
  • Page 18: Chapter 3 Interfaces

    The physical interface of the EM27 consists of a 8-pin box connector: • 8-pin box connector can be used as RS-232 interface or USB interface. The figure below illustrates the position of the connector on the EM27, as well as the pin 1 and pin 8. Figure 3-1...
  • Page 19: 8-Pin Box Connector

    4800Hz) when a good read occurs. Default frequency is 2710Hz. The beep can be programmed On or Off. To learn how to program these parameters, please see the EM27 user guide. For the external beeper circuit design, please see the “Beeper Circuit” section in Chapter 5. If the EXT_BUZ pin is not...
  • Page 20: Connector/Cable Specifications (Unit: Mm)

    Connector/Cable Specifications (Unit: mm) The EM27 is equipped with a 8-pin box connector. 8-pin Box Connector The 8-pin box connector on the EM27 is supplied by Xiamen PinToPin Electronic Technology Co.,Ltd., Model No. 1.0T-8AWB. Figure 3-2...
  • Page 21: Dedicated Cable For 8-Pin Box Connector

    Dedicated Cable for 8-pin Box Connector The dedicated cable can be used to connect the engine’s 8-pin box connector to a host device. Cable for 8-pin Box Connector (USB interface): Figure 3-3...
  • Page 22 Cable for 8-pin Box Connector (RS-232 interface): Figure 3-4...
  • Page 23: Chapter 4 Electrical Specifications

    Chapter 4 Electrical Specifications Power Supply Do not power up the EM27 until it is properly connected. Be sure the power is cut off before connecting a cable to or disconnecting a cable from the host interface connector. Hot-plugging could damage the engine.
  • Page 24: Ripple Noise

    Ripple Noise To ensure the image quality, a power supply with low ripple noise is needed. Table 4-2 Parameter Standard (pk-pk) Unit ≤250 EXT_VCC EXT_VCC Ripple Figure 4-2 I/O Voltage Table 4-3 Parameter Condition Minimum Typical Maximum Unit Low Level Input Voltage - 0.3 High Level Input Voltage Low Level Output Voltage...
  • Page 25: Operating Current

    Operating Current Table 4-4 @VCC=5.0V@25℃ Description State Peak Current Unit Working Current VDD=5.0V Standby Current Peak Current Figure 4-3 Working Current Figure 4-4...
  • Page 26 Standby Current Figure 4-5...
  • Page 27: Timing Sequence

    Timing Sequence Power Up and Power Down Timing Sequence 1.3s 1.0s EXT_VCC USB_D+ USB_D- RS232_TX RS232_RX EXT_TRIG# EXT_DSF Figure 4-6 In the diagram above, it takes about 1s to initialize the engine. Operate the engine via the host 1.3s later after the engine is powered on.
  • Page 28 Serial Communication Waveform Figure 4-7 USB Communication Waveform Figure 4-8...
  • Page 29: Chapter 5 External Reference Circuit

    Chapter 5 External Reference Circuit External Circuit Design Good Read LED Circuit The circuit below is used to drive an external LED for indicating good read. Figure 5-1 Beeper Circuit The circuit below is used to drive an external beeper. Figure 5-2...
  • Page 30: Trigger Circuit

    Trigger Circuit The circuit below is used to provide the engine with a signal to trigger a scan and decode session. Figure 5-3...
  • Page 31: Chapter 6 Auxiliary Tool

    Chapter 6 Auxiliary Tool The EM27 provides the following tool to assist users in engine configuration. EasySet EasySet is a Windows-based configuration tool developed by Newland, which can be used to configure the EM27.
  • Page 32 SCANNING MADE SIMPLE Need more info? Contact us or one of Newland EMEA HQ our partners at newland-id.com/partners +31 (0) 345 87 00 33 info@newland-id.com newland-id.com...
