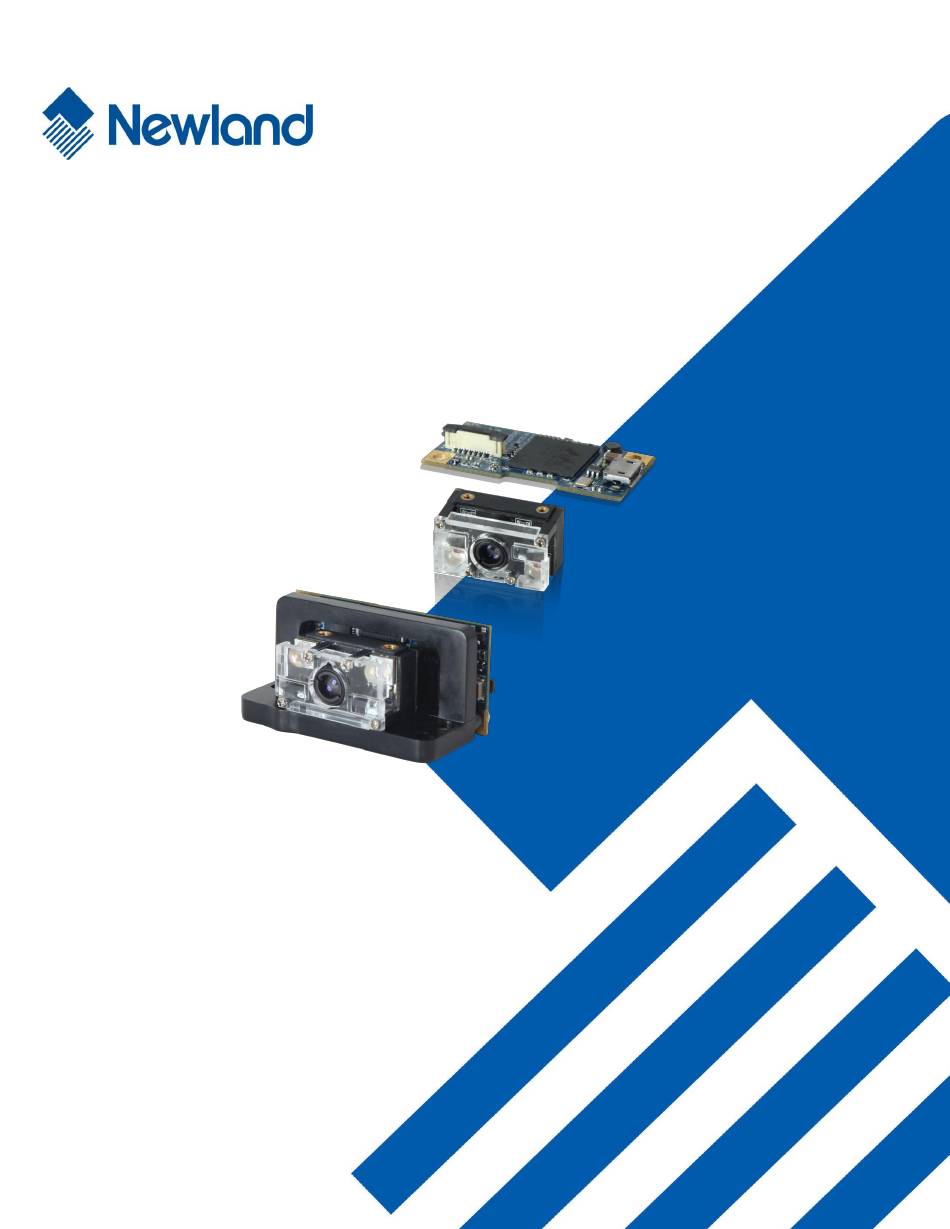

- Page 1 EM2037 Series Embedded 2D Barcode Scan Engine Integration Manual...
- Page 2 Please read through the manual carefully before using the product and operate it according to the manual. It is advised that you should keep this manual for future reference. Do not disassemble the device or remove the seal label from the device. Otherwise, FuJian Newland Auto-ID Tech. Co., Ltd. does not assume responsibility for the warranty or replacement.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Introduction ................................. 1 About EM2037 .................................. 1 Documents ..................................1 Aimer ....................................1 Illumination ..................................1 Chapter 2 Installation ................................... 2 General Requirements ..............................2 ESD Precautions ..............................2 Dust and Dirt ................................2 Environment ................................2 Thermal Consideration ............................. - Page 4 Micro USB ................................15 External Circuit ................................15 LED Circuit for Good Read ............................ 15 Circuit for Beeper ..............................16 Circuit for Sleep Mode LED............................ 16 Circuit for Activating the Engine ..........................17 Circuit for Trigger ..............................17 Chapter 5 Development Tools ..............................19 EVK ....................................
-
Page 5: Chapter 1 Introduction
Chapter 1 Introduction About EM2037 EM2037 is an embedded 2D Barcode Scan Engine with CMOS technology and Newland`s . It can read barcodes on various carriers like paper and magnetic cards and is suitable to be integrated into various OEM devices including handheld scanners, PDA, kiosks, etc. -
Page 6: Chapter 2 Installation
Chapter 2 Installation General Requirements ESD Precautions ESD has been taken into consideration during the design of EM2037 and the engine is shipped in ESD safe packaging. Use care when handling the engine outside its package. Be sure grounding wrist straps and properly grounded work areas are used. -
Page 7: Optics
Figure 2-1 Optics Window Placement The window functions as an isolation wall in front of EM2037 to separate the engine from other parts of the entire device. Meanwhile the window placement should ensure that the illumination and aiming beams can come out and no reflection into the engine, otherwise the reading performance might be affected. -
Page 8: Abrasion-Resistant And Coating
clear and has even refraction. It is suggested to use PMMA or optical glass with transmission rate over 90% and vagueness rate less than 1%. Whether coated or not depends on materials and application demands. Abrasion-resistant and Coating Scratch on window will severely reduce the reading performance. It is suggested to use high-abrasion window material or use abrasion-resistant coating to prevent scratch and abrasion. - Page 9 Figure 2-4 Longitudinal Section Optical Diagram of 37.5° Lens Figure 2-5 Crosswise Section Figure 2-6 Longitudinal Section Optical Diagram of 42° Lens...
-
Page 10: Ambient Light
Figure 2-7 Crosswise Section Figure 2-8 Longitudinal Section Ambient Light EM2037 might show better performance with ambient light. For high-frequency impulse light, however, the reading might be interfered. Eye Safety EM2037 adopts LEDs instead of laser for aiming and illumination. Such LEDs are safe to eyes in normal circumstances. -
Page 11: Mechanical Mounting Dimensions For Combined Type (Unit: Mm)
When integrating the engine, the mechanical specifications below should be taken into consideration. The structure should be designed with enough space so that the engine will not be oppressed by other components. And sufficient space should be kept for the location of flexible flat cable. Mechanical Mounting Dimensions for Combined Type (Unit: mm) Front View Figure 2-9... -
Page 12: Mechanical Mounting Dimensions For Imager (Unit: Mm)
Figure 2-11 Mechanical Mounting Dimensions for Imager (Unit: mm) Front View Figure 2-12 Bottom View Figure 2-13 Top View... -
Page 13: Mechanical Mounting Dimensions For Decoder Board (Unit: Mm)
Figure 2-14 Right View Figure 2-15 Mechanical Mounting Dimensions for Decoder Board (Unit: mm) Front View Figure 2-16 Back View... - Page 14 Figure 2-17 Right View Figure 2-18...
-
Page 15: Chapter 3 Electrical
Chapter 3 Electrical Power Supply Do not input power until the engine is connected properly, otherwise the components inside the engine might be damaged. Be sure the power is cut off before connecting or disconnecting the flexible flat cable. Unstable power supply or sharp voltage drop might make the engine under unstable state. Wait at least for 2s before supplying power again. -
Page 16: Chapter 4 Interfaces
Chapter 4 Interfaces Interface Definition The interface of EM2037 consists of 12 PIN-FPC and Micro USB: 12 PIN-FPC can either be TTL232 or USB form. Note: One product model supports either TTL-232 or USB form. Micro USB can only be used as standard USB interface. The location of 12 PIN-FPC connector and Micro USB connector are marked in below illustation. -
Page 17: Usb
Output-TTL level 232 transmit data nCTS Input-TTL level 232 clear to send signal nRTS Output-TTL level 232 request to send signal Output-Open Drain; 10K Pull up; active high indicator that PWRDWN EM2037 is in power down mode. Output – Open Drain; idle high signal that can be an active low nBEEPER O,od DC or PWM controlled AC signal used to drive an external... -
Page 18: Micro Usb
low DC or PWM controlled AC signal used to drive an external beeper. Output – Open Drain; active low signal for driving a low nGoodRead O,od current Good Read LED circuit. Input, 100K Pull up – When in power down mode active low nWAKE wake up signal to the EM2037. -
Page 19: Micro Usb
Figure 4-2 Micro USB Micro USB connector is a connector with standard definitions and can be used as stanard methods. Figure 4-3 External Circuit LED Circuit for Good Read The illustration below shows the circuit of LED reminder for good read. The left part of Figure 4-5 is the driver circuit on EM2037 decoder board. -
Page 20: Circuit For Beeper
Driver Circuit inside Mainboard Suggested External Driver Circuit Figure 4-5 Circuit for Beeper The illustration below shows the circuit of Beeper. The left part of Figure 4-6 is the driver circuit on EM2037 decoder board. The right part of Figure 4-6 is provided for design reference. nBEEPER signal comes from PIN9 of 12 PIN-FPC. -
Page 21: Circuit For Activating The Engine
Driver Circuit inside Mainboard Suggested External Driver Circuit Figure 4-7 Circuit for Activating the Engine The illustration below shows the circuit of activating the EM2037 from sleep mode. The right part of Figure 4-8 is the receiving circuit on EM2037 decoder board. The left part of Figure 4-8 is provided for design reference. - Page 22 Suggested External Driver Circuit Receiving Circuit inside Mainboard Figure 4-9...
-
Page 23: Chapter 5 Development Tools
Newland provides EVK for test and evaluation on EM2037. This EVK includes beeper and beeper`s driver circuit, LED and LED`s driver circuit, trigger, reset key, RS232 interface, USB interface and so forth. - Page 24 TEL: +31 (0) 345 87 00 33 FAX: +31 (0) 345 87 00 39 Email: sales@newland-id.com WEB: www.newland-id.com Tech Support: tech-support@newland-id.com Newland North America Inc. /北美新大陆有限公司 Address: 46559 Fremont Blvd., Fremont, CA 94538, USA TEL: 510 490 3888 Fax: 510 490 3887 Email: info@newlandna.com WEB: www.newlandna.com...
