Model 511 User's Manual
3. To disconnect the DB-9 to OxySnap connector cable, grasp the connectors and pull
them apart (the DB-9 to OxySnap connector can remain attached to the Model 511
as long as single patient use sensors will be used).

Sensor Application

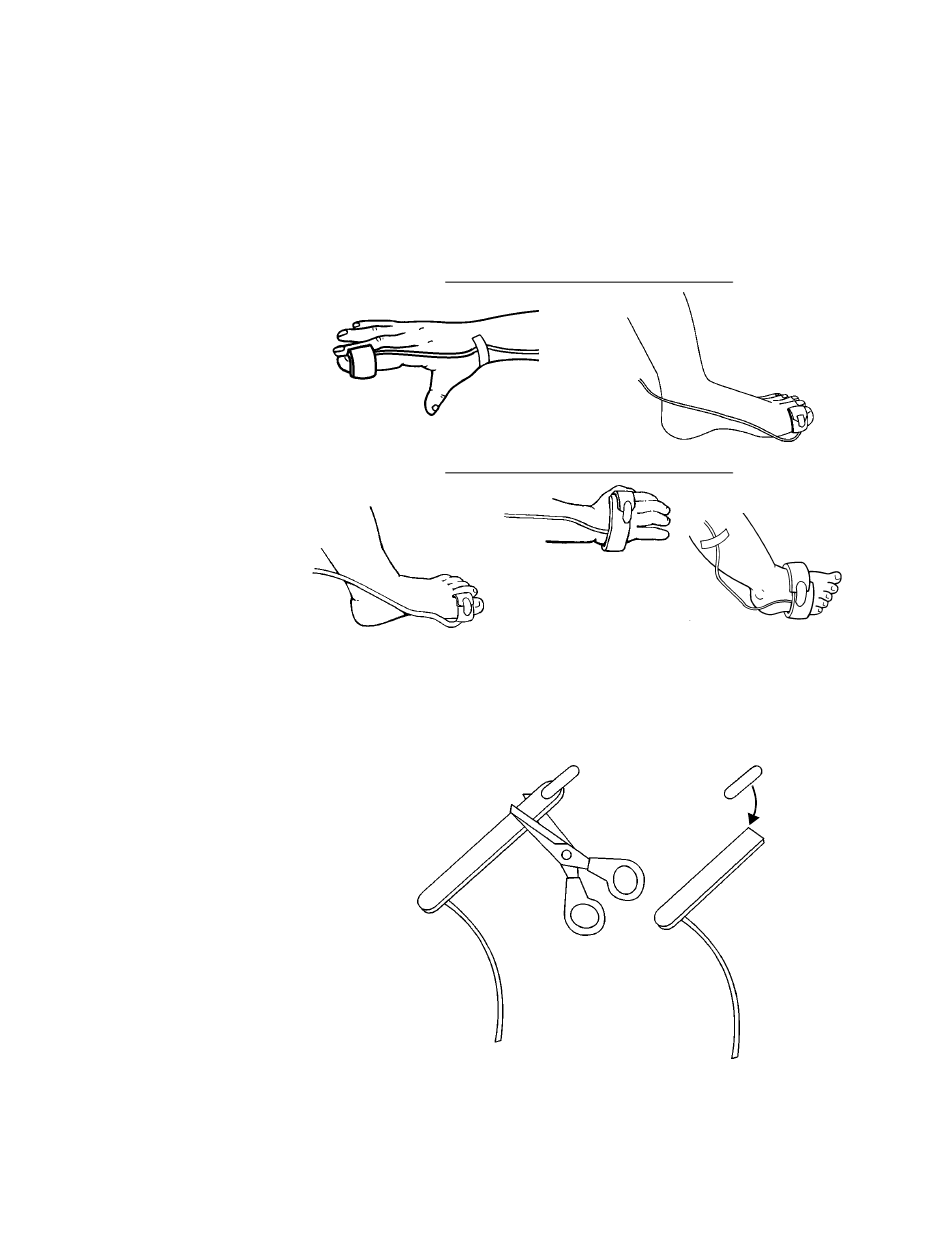

1. Select the appropriate size sensor based on the patient type.
ADULT FINGER
PEDIATRIC TOE
2. Apply the sensor by placing the blue side of the sensor wrap against the skin, wrap
it around the site (cut excess foam if necessary) and secure with Velcro® tab. The
Velcro tab on the neonatal/pediatric version is removable to allow the foam wrap to
be cut before applying to the patient.
CUT EXCESS OFF
Ensure that sensor heads are positioned directly opposite each other through the tissue.
The adhesive dots (Cat No 8700) which are included with each sensor can be applied the
sensor before patient application for additional adhesion to the site.
01-May-96
Single Patient Use SpO
PEDIATRIC/ADULT SENSOR
NEONATAL/PEDIATRIC SENSOR
NEONATAL HAND
NEONATAL/PEDIATRIC
SENSOR
Sensors
2
ADULT TOE
NEONATAL FOOT
VELCRO TAB
21
