OxySnap Connector

OxySnap Finger

Sensor

Model 511 User's Manual

The Model 511 Pulse Oximeter requires OxySnap SuperBright SpO

WARNING: Connect only Novametrix OxySnap SuperBright saturation sensors to the

Model 511. DO NOT use other sensors or accessories with the Model 511.

Before connecting to the patient or to the Model 511, ensure sensors are physically intact,

with no broken, frayed or damaged components. Ensure the connectors are clean and dry,

with no signs of contamination or corrosion. Do not use a broken or damaged sensor or

one with wet, contaminated or corroded connectors.

To attach an OxySnap SuperBright sensor to the Model 511:

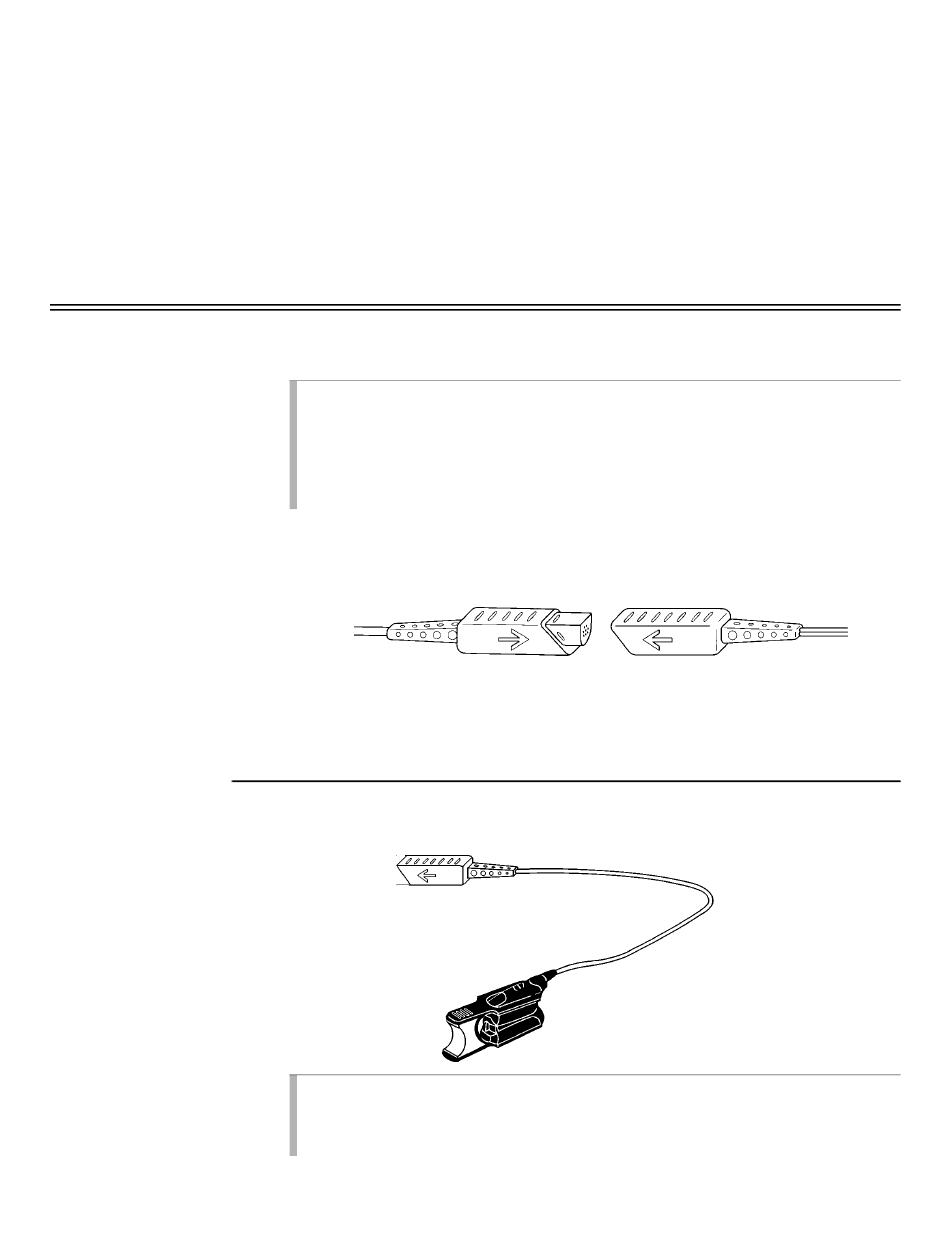

1. Align the arrows on the Oxy Snap connectors and press the connectors together.

Model 511

2. To disconnect, grasp the connectors at the finger grips and pull them apart.

The Finger Sensor is intended for adult fingers and not designed for neonatal or pediatric

applications.

Before applying the sensor to the patient, verify the sensor is physically intact, with no

broken/frayed wires or damaged parts. Ensure the connectors are clean and dry, with no

signs of contamination or corrosion. Do not use a broken or damaged sensor or one with

wet, contaminated or corroded connectors.
