Section 5 SpO2 Sensors
Model 511 with RS232
Model 511 with RS232 option
6292-01 cable
DB-9 to
OxySnap
Connector

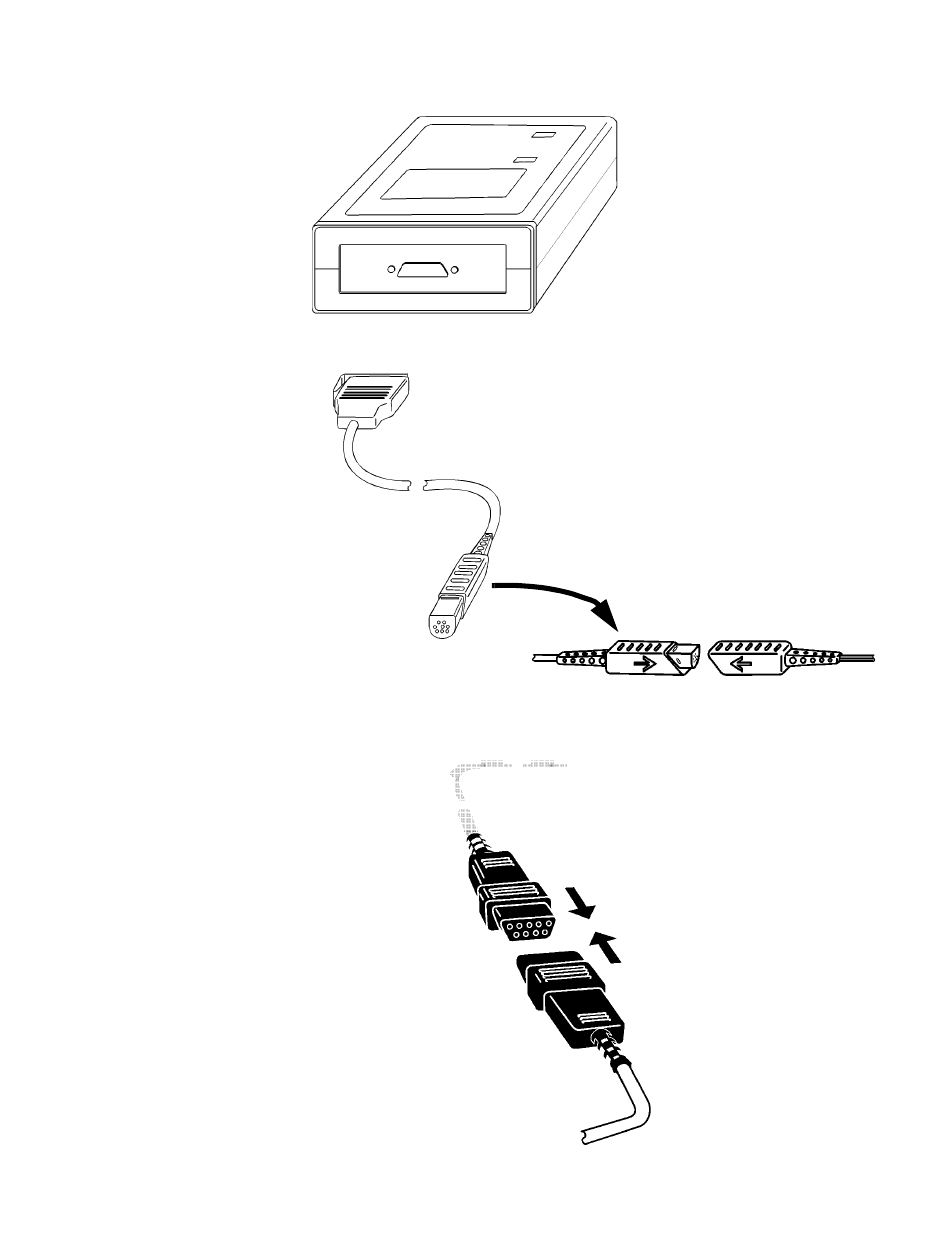

2. Press the black connector on the end of the DB-9 to OxySnap extension cable into
the black connector on the end of the Single Patient Use SpO
sensor.
2
DB-9 connection
DB-9 to OxySnap connector
sensor
connector
20
Model 511
01-May-96
User's Manual
