Section 4 Serial Communication Option
Connecting the Model
511 for serial
communication
24
Connecting the Model 511 for serial communication
1. Unplug any sensor that may be connected from the
connector.

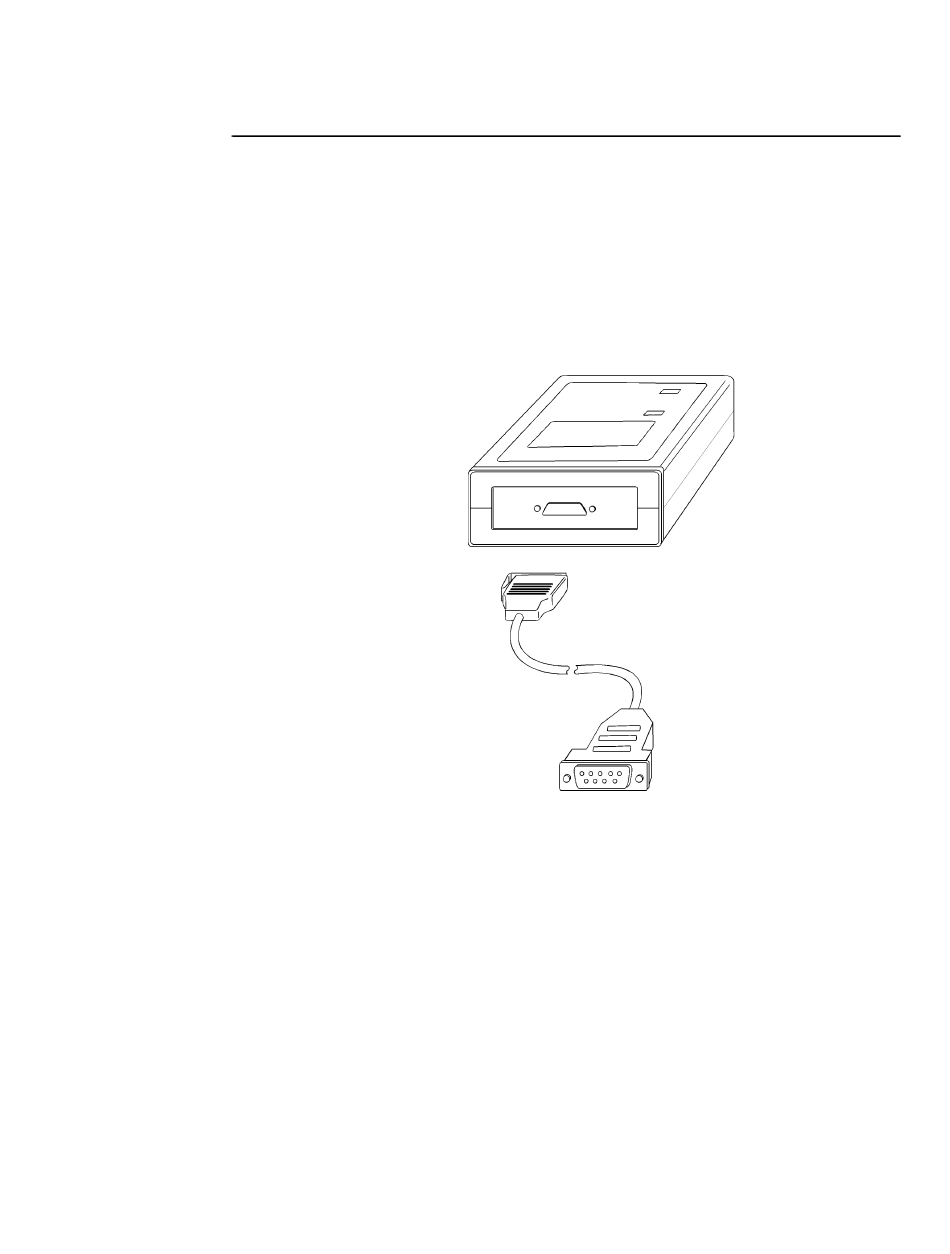

2. Connect the 6293-01 interface cable to the
the monitor, plug the other end into the communication device.
Model 511
Connection to computer
or communication device
3. If using the NovaCARD Data Archive System, please refer to the NovaCARD User's
Manual (Cat. No. 6066-23) for set-up and operation of the NovaCOMM interface.
(See " NovaCOMM Setup (Direct Cable)", page 13 under the "Hardware Setup"
section).
4. If you are using a communications package other than NovaCARD send the
appropriate commands from the device to the monitor as instructed in the next
section titled " NOVACOMM1 Interface".
