Section 5 SpO2 Sensors

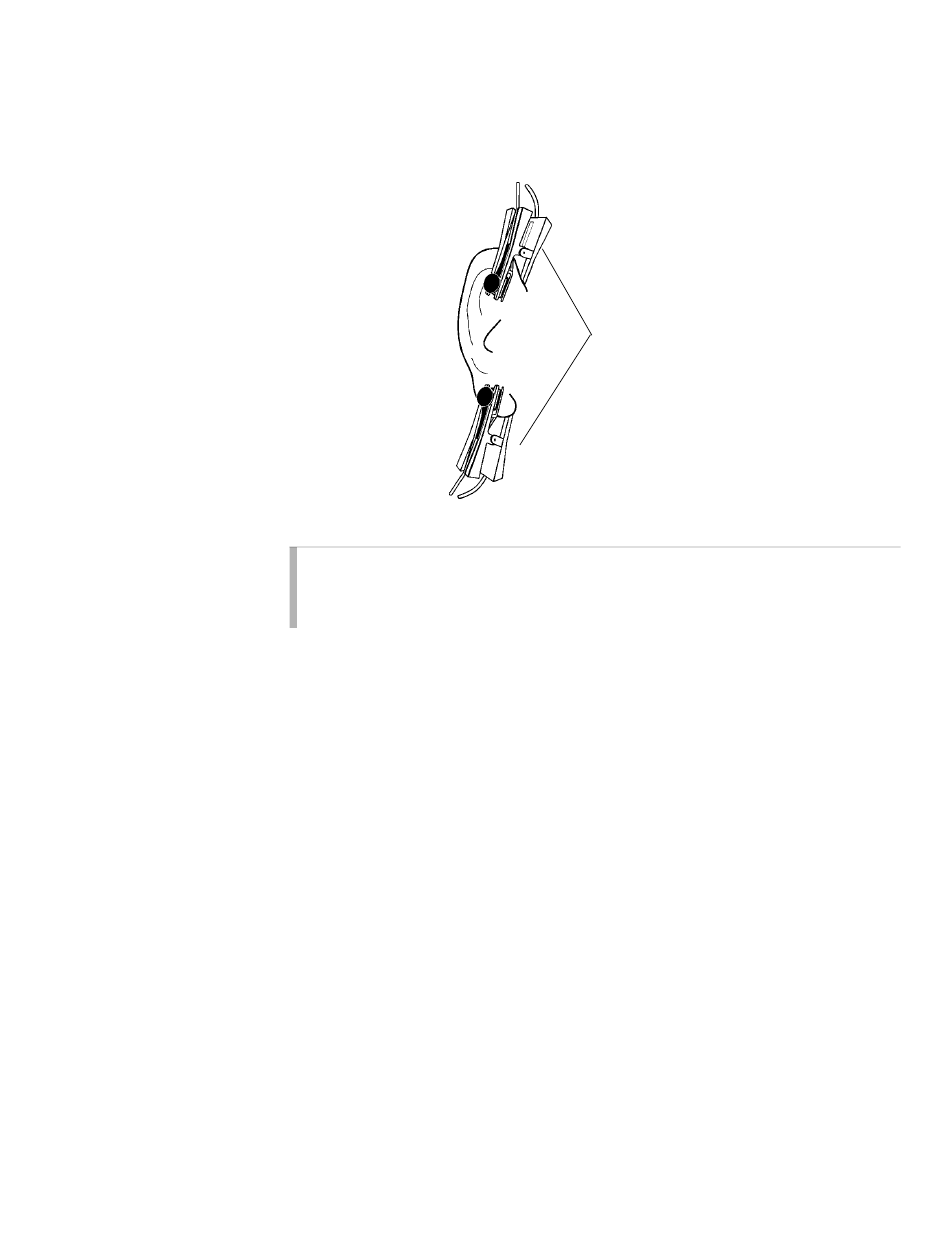

Y-Sensor with Ear Clip
placed on patient ear
18
If a satisfactory reading cannot be obtained, rub the site and/or use adhesive dots for better
response. The adhesive dots (PN: 8700-00) included with the ear clips will also help in
preventing the ear clip from falling off (e.g. during exercising).
ADULT EAR
WARNING: Inspect the site often for adequate circulation—at least once every four hours.
When applying sensors take note of patient's physiological condition. For example, burn
patients may exhibit more sensitivity to heat and pressure and therefore additional
consideration such as more frequent site checks may be appropriate.

Y-Sensor Quick Check

1. With the Y-Sensor connected to monitor but not applied to patient, position the
sensor heads so that they face each other (the red light shines at the detector). Is
Probe Off Patient illuminated?
2. Tape the Y-Sensor to your index finger. Does the monitor shows reasonable SpO
and pulse rate values?
3. A YES to BOTH #1 and #2 indicates the sensor is OK. Apply the sensor to the
patient as instructed above.
The quick check also tests the functionality of the extension cable.
