Y-Sensor

Y-Sensor

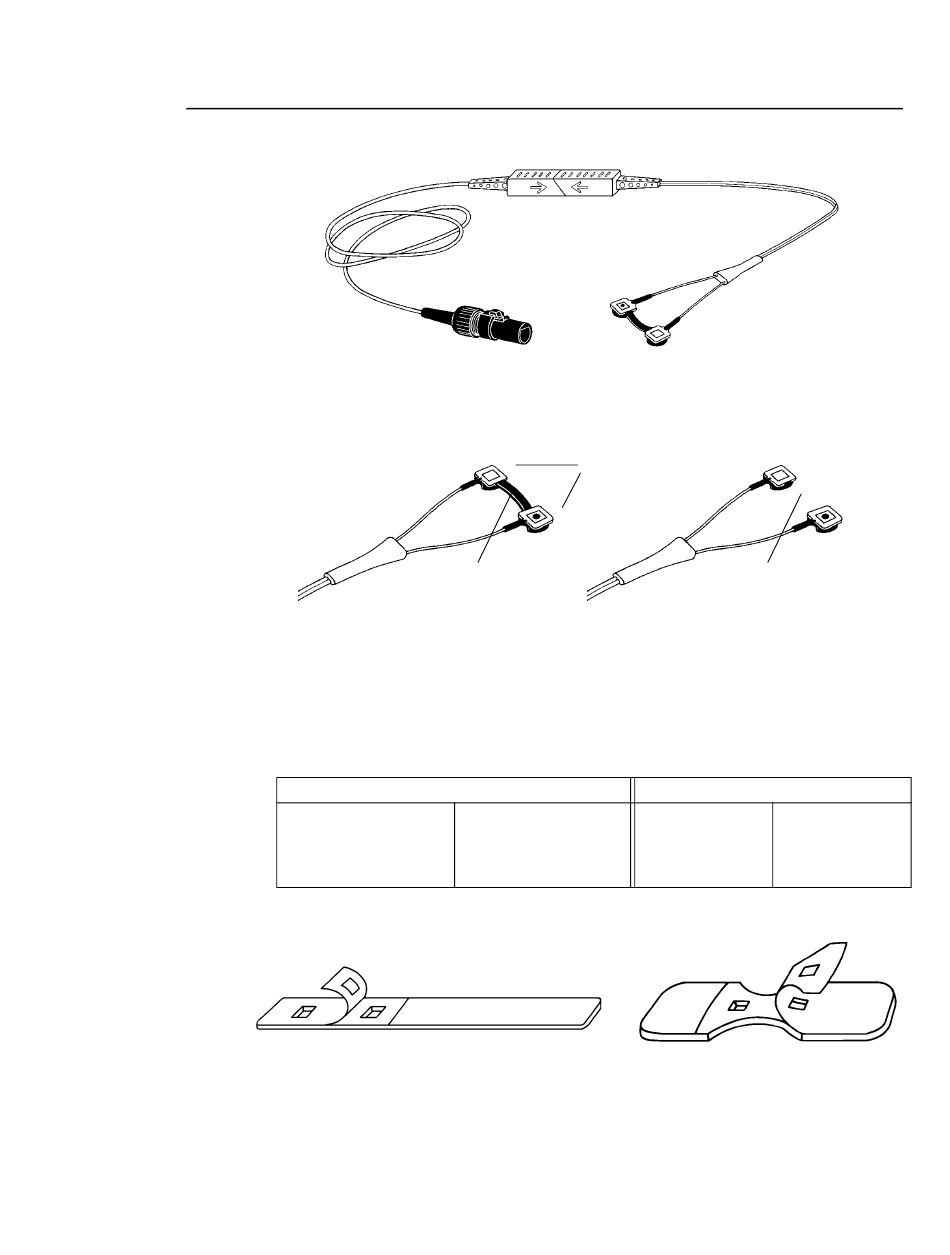

The reusable Y-Sensor is a flexible sensor designed for use on any patient.
The Y-Sensor's Center Strip is not a functional part of the sensor. Its twofold purpose is to aid in the
placement of the sensor into the Y-Strip or other securing system and to limit the distance between the
sensor heads to no more than 25 mm. The center strip may be removed (carefully cut away) if the distance
between the sensor heads needs to be reduced to less than 25 mm.

Y-Sensor Application using Wrap Style Tapes

1. Select a Y-Strip based on the patient type and intended sensor location.
2. Remove the portion of the release liner containing the holes.
3. Skip this step if using the 25 mm Y-Strip tape.
If using the 20 mm Y-Strip tape, carefully remove the sensor's center strip using a pair of scissors or a
sharp blade.
Rev. 04
Center Strip
Y-Strips come in two color-coded sizes: 25 mm tapes have green liners, and 20 mm tapes have
blue liners. The size refers to the distance between the holes in the tape
Wrap Style Tape
Cat. No. 8829
25 mm (Green)
Neonatal Foot, Hand
The center strip does not effect sensor operation, its purpose is to aid putting the sensor into the
25 mm tape and to limit the distance between the sensor heads to no greater than 25 mm.
Sensor Heads
Cat. No. 8828
20 mm (Blue) 25 mm (Green)
Neonatal Foot, Hand
Pediatric Toe, Finger
SpO2 Sensors
Strip may be removed
Finger Style Tape
Cat. No. 8832 Cat. No. 8831
20 mm (Blue)
Adult Finger Pediatric Finger
Adult Finger
