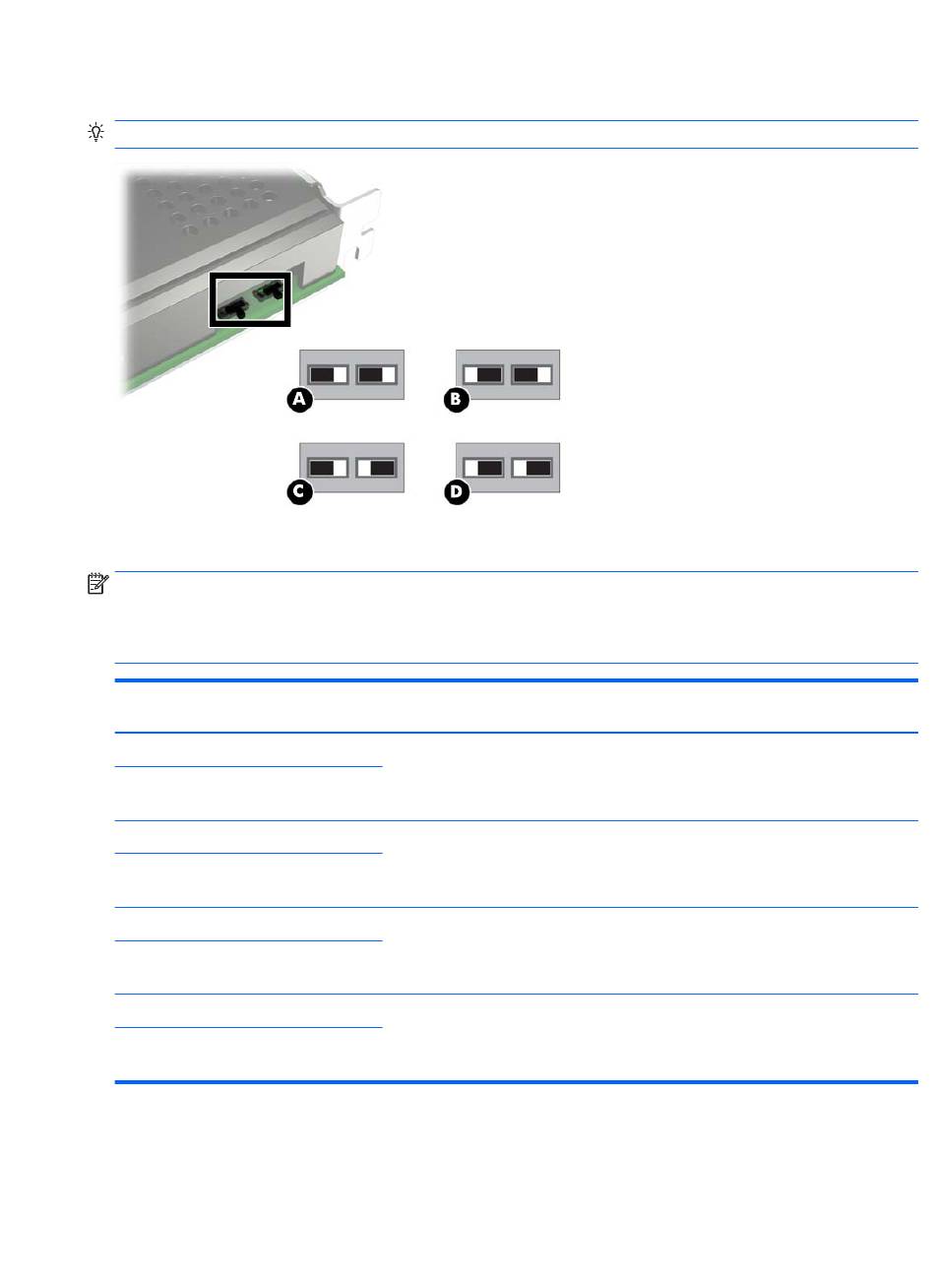

The HP Z Turbo Drive Quad Pro has switches that can be set to four unique addresses. Each HP Z Turbo Drive
Quad Pro must have a unique address. For possible switch configurations and corresponding labels, see the
following diagram.
TIP: The black rectangle indicates the switch position.
Some of the HP Z Turbo Drive Quad Pro and HP Z Turbo Drive solutions addresses overlap. To prevent
configuration of identical addresses, see the following chart.
NOTE: HP recommends setting the addresses of any HP Z Turbo Drive Quad Pros, and then setting the
addresses of any HP Z Turbo Drive solutions. If using a combination of solutions, HP recommends using
Address C or Address D for the HP Z Turbo Drive Quad Pro and Address 0, Address 1, Address 2, or Address 3
for the HP Z Turbo Drive solution.
HP Z Turbo Drive and HP Z Turbo Drive G2
address
0
1
2
3
4
5
6
7
HP Z Turbo Drive Quad Pro address
A
B
C
D
Installing multiple HP Z Turbo Drives or HP Z Turbo Quad Pro Drives
Instructions
If an HP Z Turbo Drive Quad Pro is
configured at Address A, the HP Z Turbo
Drive solutions must not be at either
Address 0 or Address 1.
If an HP Z Turbo Drive Quad Pro is
configured at Address B, the HP Z Turbo
Drive solutions must not be at either
Address 2 or Address 3.
If an HP Z Turbo Drive Quad Pro is
configured at Address C, the HP Z Turbo
Drive solutions must not be at either
Address 4 or Address 5.
If an HP Z Turbo Drive Quad Pro is
configured at Address D, the HP Z Turbo
Drive solutions must not be at either
Address 6 or Address 7.
