5.

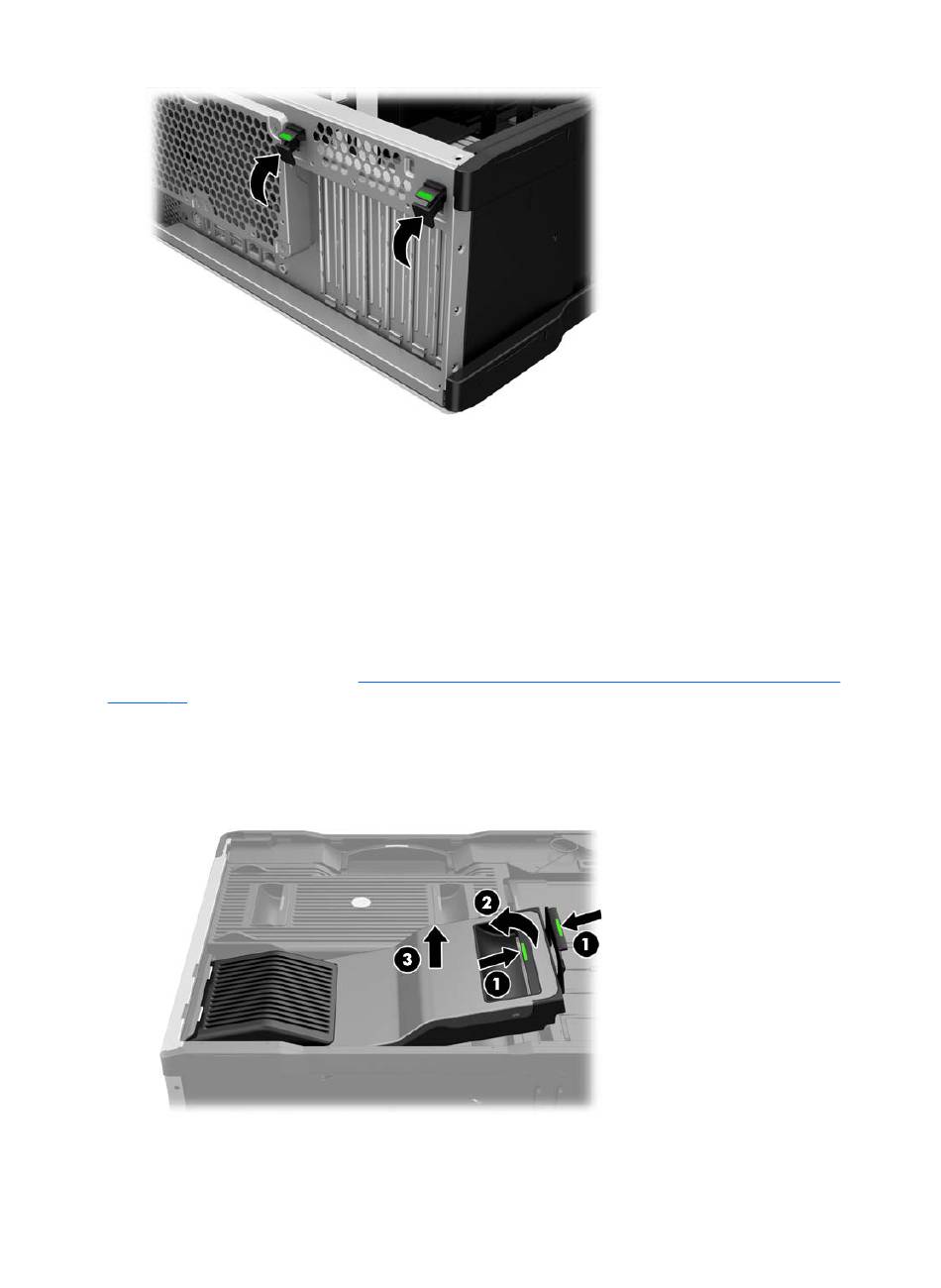

Press the two green PCI retention clamp tabs on the rear of the chassis up until they lock into place.
Installing the drive in an HP Z840 Workstation
If more than one of any of the following drives are to be installed in a system, a unique address for each drive
must be configured before installation:
●
HP Z Turbo Drive
HP Z Turbo Drive G2
●
●
HP Z Turbo Quad Pro
For configuration instructions, see
on page
14.
1.
Squeeze the two green tabs together to release the retainer (1), rotate the PCI retainer (2) up, and lift it
out of the chassis (3).
12
HP Z Turbo Drive Quad Pro installation
Installing multiple HP Z Turbo Drives or HP Z Turbo Quad Pro Drives
