5.

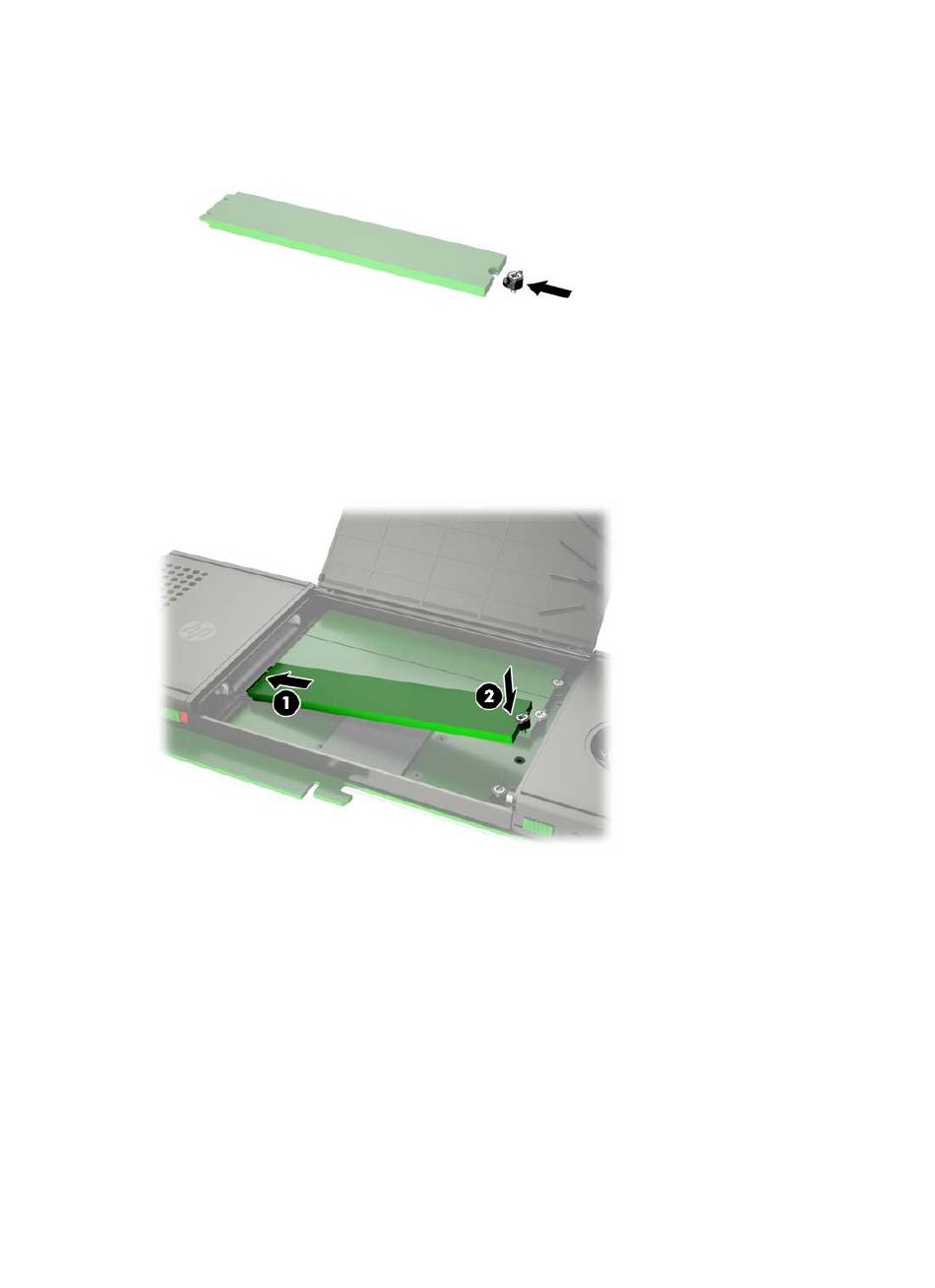

Insert standoff into the curve of the right edge of the M.2 module.
6.
Slide the M.2 module into the connector (1) and then press down until the standoff is aligned with the
embedded nut (2).
Installing additional M.2 modules in the HP Z Turbo Drive Quad Pro
5
