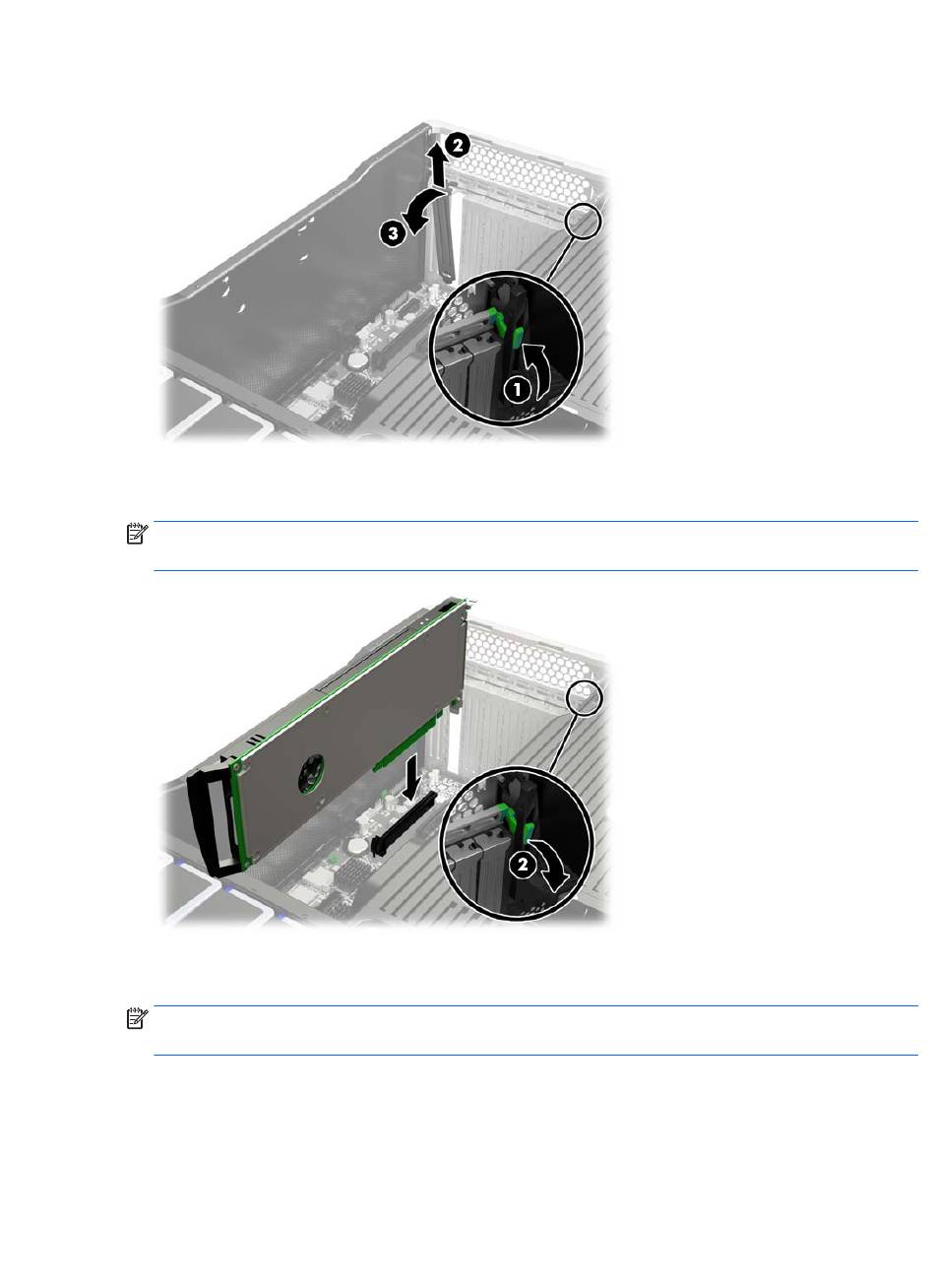

2. Lift the green lever to rotate the retention bracket (1) out of the way, raise the slot cover (2), and then
rotate the slot cover toward the inside of the chassis (3) to access either PCIe slot 6, or slot 4.
3. Align the connectors on the PCIe drive with the socket on the system board and install the drive into the
socket, then lower the retention bracket into place.
NOTE: If the computer has one CPU installed, the drive may be used only in PCIe slot 6. If the computer
has a second CPU installed, the drive may also be used in slot 4.
4. Connect the LED cable to the HDD activity header on the PCIe drive that is marked HDDACT_OUT. Then,
connect the other end of the LED cable to the HDD LED connector on the system board.
NOTE: To locate the HDD LED connector on the system board, see the System Board Overview on the
service panel.
