Omega PAWH Weld Head Setup

These instructions are for the manual version of the Omega
PAWH Weld Head.

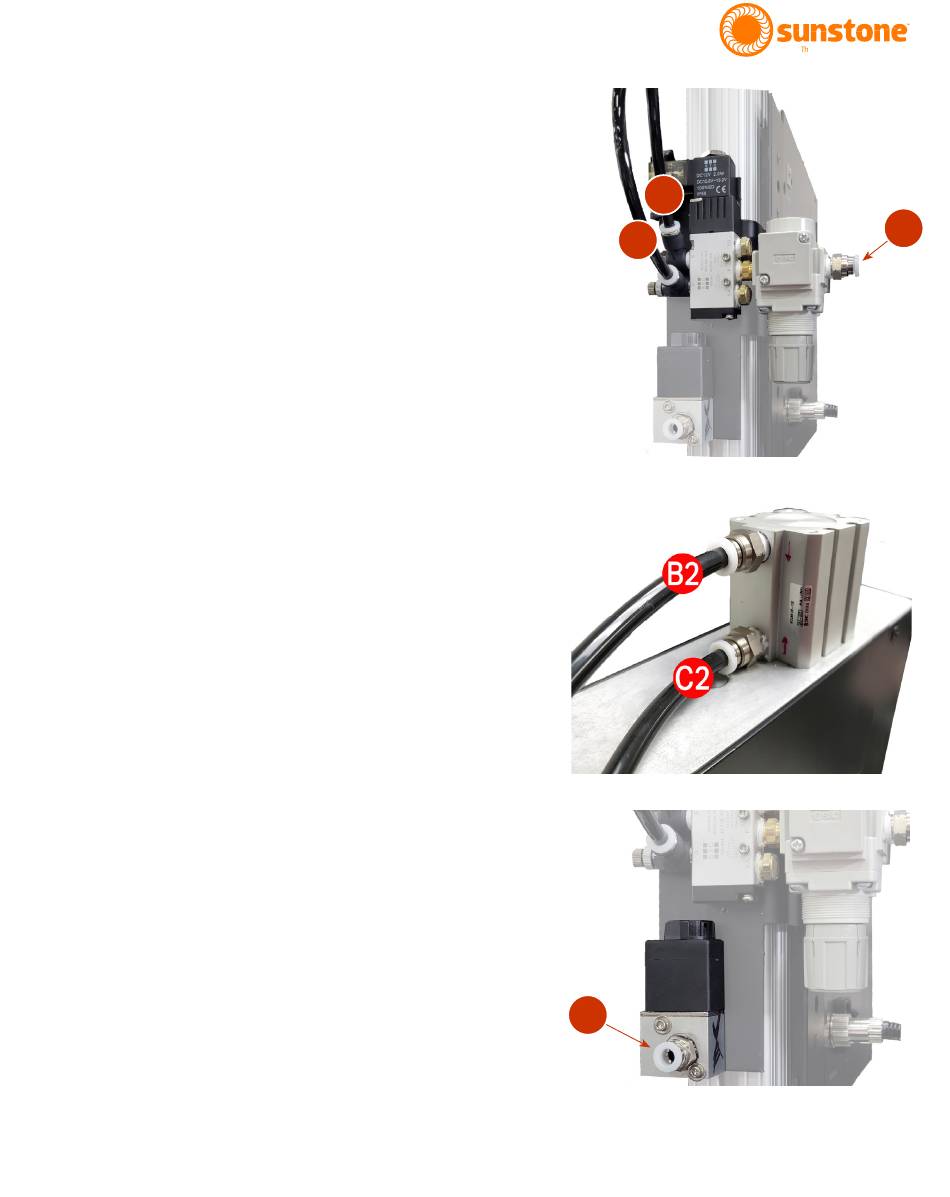

CONNECT THE COMPRESSED AIR
• Plug the tube from the compressed air tank into the
Air Valve System (A) on the back of the weld head.
• Two air valve ports are located on the back of the
weld head and two ports at the top of the weld
head. The top port (B1) on the back of the weld
head connects to the top port (B2) at the top of the
weld head. The bottom port (C1) on the back of the
weld head connects to the bottom port (C2) at the
top of the weld head. See Figures 15.1 and 15.2
CONNECT SHIELD GAS
• Using the provided splitter, plug the tubes into the
gas port on the back of the Power Supply and into
the port on the back of the weld head at the bottom
of the Air Valve System (D). See Figure 15.3.
COMPLETE CABLE CONNECTIONS
• Plug the 4 DIN connector on the back of the weld
head into the Valve Control Port on the side of the
weld head.
• Using the wires on the weld head, connect the red
wire to the Pulse Arc (+) Port and the black wire to
the Tack (-) Port on the back of the PA250i.
• Connect the RJ-11 cable to the To Welder Port on
the welder and then to Acc. Port on the back of the
weld head.
• Plug the AC power cable into the side of the weld
head. Then plug the other end into any standard
110-220VAC outlet.
MOUNT THE WELD HEAD (OPTIONAL)
• To mount the weld head to a table top or bench
top, pull the base plate cap off the front of the weld
head base. Drill four holes into your table top. Slide
the screws into the base, then lower the weld head
B1
C1
Figure 15.1.
Figure 15.2.
D
Figure 15.3.
Questions? Call or Text +1-801-658-0015 • 15
