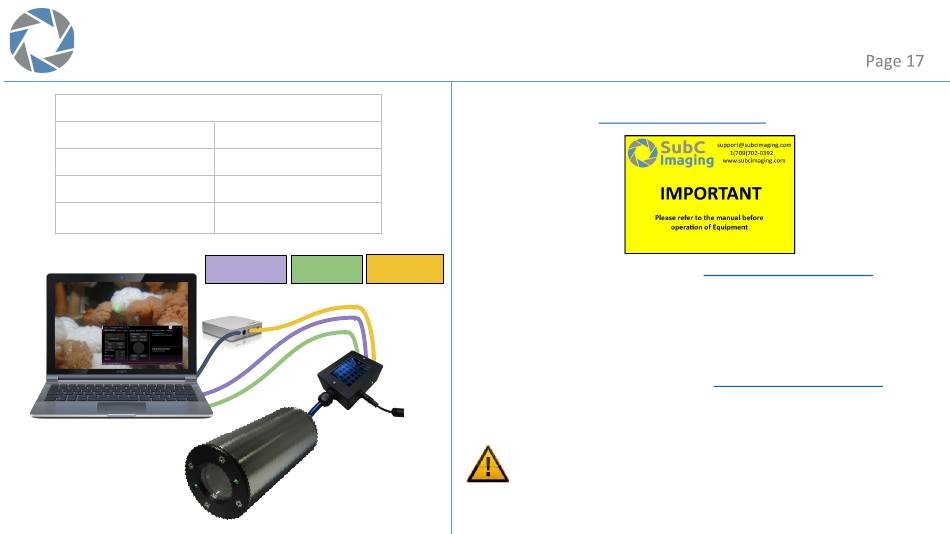

QUICK START 1CAM MK5
Serial Control, USB Download
Required Components
Camera
SubC Interface Box
Computer
Power cable
TV, DVR or Capture device
Coax or RCA cable
RS232 or RS485 USB Device
USB (A) to USB (A) cable
USB to Serial
Capture device
Updated manuals and software are on the supplied USB stick. They are also
available by emailing
USB Cable
Video cable
Interface
Box
Power
support@subcimaging.com
1.
Install the software following the
2.
Connect the camera to interface box
3.
Connect the interface box to a computer with a USB to 232 device
4.
Connect the interface box to a TV or capture device via video cable
5.
If downloading, connect the interface box to a computer with the USB
cable
6.
Power on the interface box
7.
To operate the camera follow help tooltips within the software
8.
Once confirmed operational, go to
7
Warning: Observe operating temperatures when running unit in air. This is an
underwater camera. Corrosion Prevention: Water should not be allowed to
contact the pins on the bulkheads. When not in use, use dummy plugs. If water
touches the pins, use contact cleaner and compressed air to remove the water.
SubC Smart Camera
Manual, Section 3
SubC Smart Camera
Manual, Section
