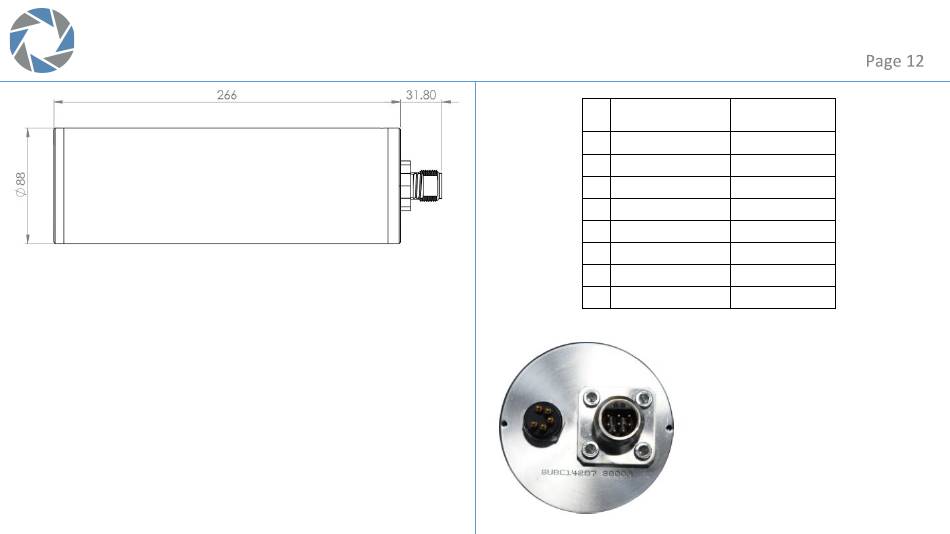

SubC Imaging 1Cam Mk5 SD Manual page 12

Live sd color zoom hd and stills recording
Table of Contents

Advertisement

1CAM MK5 SPECIFICATIONS
SD video, Serial control and USB download
Depth Rating:
6500mm Titanium housing
Weight in Water:
2.2Kg
Weight in Air:
3.3 Kg
Video Output:
Composite SD
View Angle in Water:
60° w/ flat sapphire port
Max Power:
4Watts when recording HD video
* If using a LED lamp, max draw is 58Watts
Operating Temperature (Air):
* In water runtimes are continuous up to water temperature of 25ºC
0ºC-6hrs, 10ºC-3hrs, 20ºC-2hrs, 30ºC-1hr
5506-1508
MC-BH-5
[LED/Laser]
1
GND
GND
2
PWR
PWR
3
Laser TTL
4
RS232 Tx / RS485-
0-5v Dim
5
Composite
Strobe
6
USB D- (White)
7
RS232 Rx / RS485+
8
USB D+ (Green)
Available with Ethernet
downloading
Alternate configurations
available
