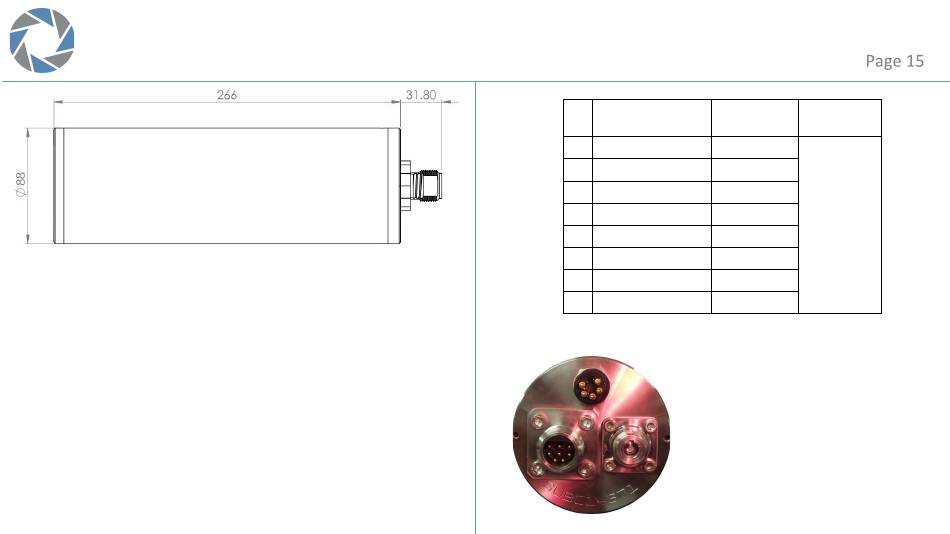

SubC Imaging 1Cam Mk5 SD Manual page 15

Live sd color zoom hd and stills recording
Table of Contents

Advertisement

1CAM MK5 HDF SPECIFICATIONS
HD over Fiber, SD video, Serial control, USB download
Depth Rating:
5200m Titanium housing (depth due to Seacon OPT-F1)
Weight in Water:
2.2Kg
Weight in Air:
3.3 Kg
Video Output:
HD-SDI over fiber optics, composite SD
View Angle in Water:
60° w/ flat sapphire port
Max Power:
9 Watts when recording and transmitting HD video
* If using a LED lamp, max draw is 63 Watts
Operating Temperature (Air):
30ºC-30mins
* In water runtimes are continuous up to water temperature of 25ºC
0ºC-4hrs, 10ºC-1.5hrs, 20ºC-1hrs,
5506-1508
MC-BH-5
[LED/Laser]
[Serial & USB]
1
GND
2
PWR
3
Laser TTL
4
RS232 Tx / RS485-
0-5v Dim
5
Composite
Strobe
6
USB D- (White)
7
RS232 Rx / RS485+
8
USB D+ (Green)
Available with Ethernet
downloading MCBH8
OPT-F1
GND [HD Video]
PWR
Single or
Multi-mode
Various
wavelengths
available
