SubC Imaging 1Cam Mk5 SD Manual page 14

Live sd color zoom hd and stills recording
Table of Contents

Advertisement

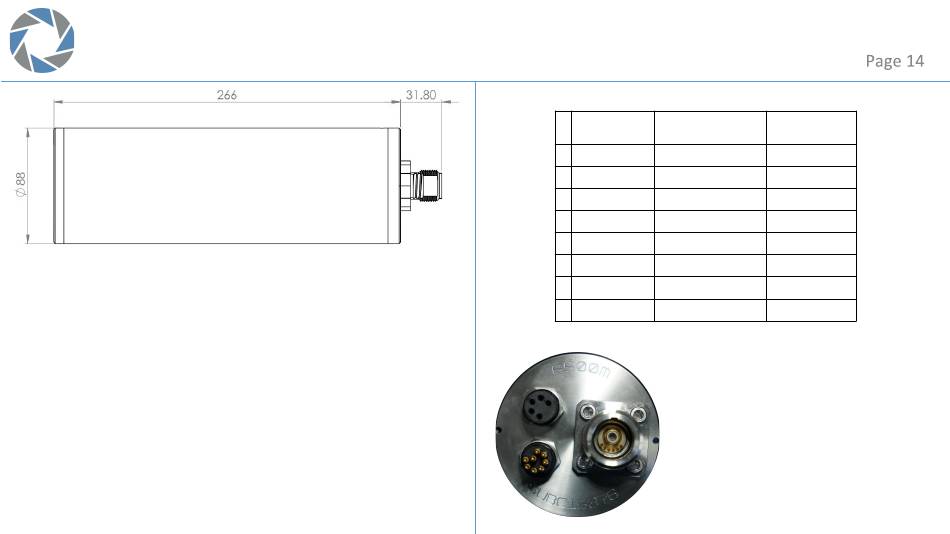

1CAM MK5 HDC SPECIFICATIONS
HD over Coax, USB download, Serial control
Depth Rating:
5800m Titanium housing (depth due to Seacon MIN-L)
Weight in Water:
2.2Kg
Weight in Air:
3.3 Kg
Video Output:
HD-SDI over 75Ohm coax, composite SD
View Angle in Water:
60° w/ flat sapphire port
Max Power:
6.5 Watts when recording and transmitting HD video
* If using a LED lamp, max draw is 60.5 Watts
Operating Temperature (Air):
30ºC-30mins
* In water runtimes are continuous up to water temperature of 25ºC
0ºC-4hrs, 10ºC-1.5hrs, 20ºC-1hrs,
MIN-L 1C/6E
MC-BH-8 [USB]
1
GND
GND
2
PWR
PWR
3
Composite
Composite
4
5
232 Tx / 485+
232 Tx / 485+
6
232 Rx / 485-
232 Rx / 485 -
7
Coax HD-SDI
USB D- (White)
8
Shield GND
USB D+ (Green)
Alternate configurations
available
MC-BH-5
[LED/Laser]
GND
PWR
Laser TTL
0-5v Dim
Strobe
