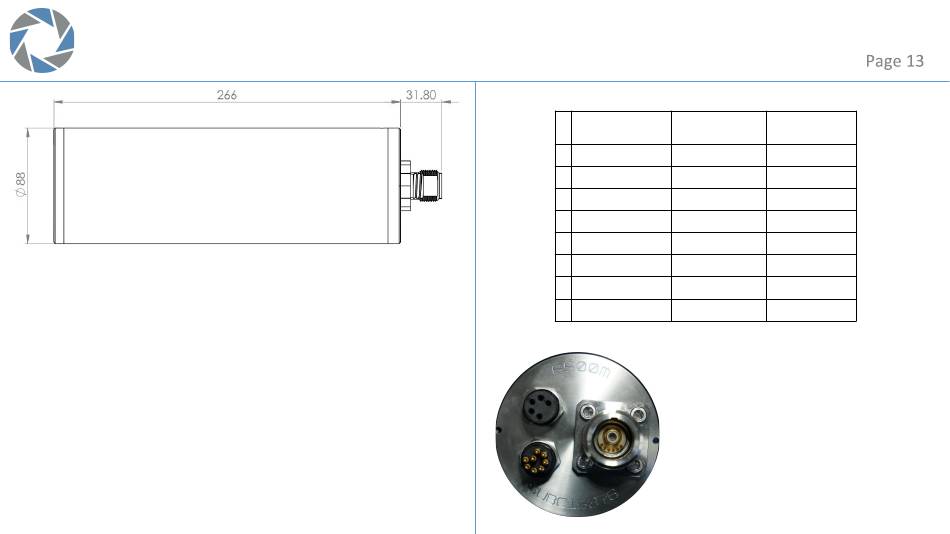

1CAM MK5 HDC SPECIFICATIONS
HD over Coax, Ethernet control/download, Serial control
Depth Rating:
5800m Titanium housing (depth due to Seacon MIN-L)
Weight in Water:
2.2Kg
Weight in Air:
3.3 Kg
Video Output:
HD-SDI over 75Ohm coax, composite SD
View Angle in Water:
60° w/ flat sapphire port
Max Power:
6.5 Watts when recording and transmitting HD video
* If using a LED lamp, max draw is 60.5 Watts
Operating Temperature (Air):
30ºC-30mins
* In water runtimes are continuous up to water temperature of 25ºC
0ºC-4hrs, 10ºC-1.5hrs, 20ºC-1hrs,
MIN-L 1C/6E
MC-BH-8
[Ethernet]
1
GND
GND
2
PWR
PWR
3
Composite
Composite
4
N/C
232 Rx
5
232 Tx / 485+
Ethernet Tx+
6
232 Rx / 485-
Ethernet Tx-
7
Coax HD-SDI
Ethernet Rx+
8
Shield GND
Ethernet Rx-
Alternate configurations
available
MC-BH-5
[LED/Laser]
GND
PWR
Laser TTL
0-5v Dim
Strobe
