SimpliFire SF-FORMAT36 Instruction Manual page 3

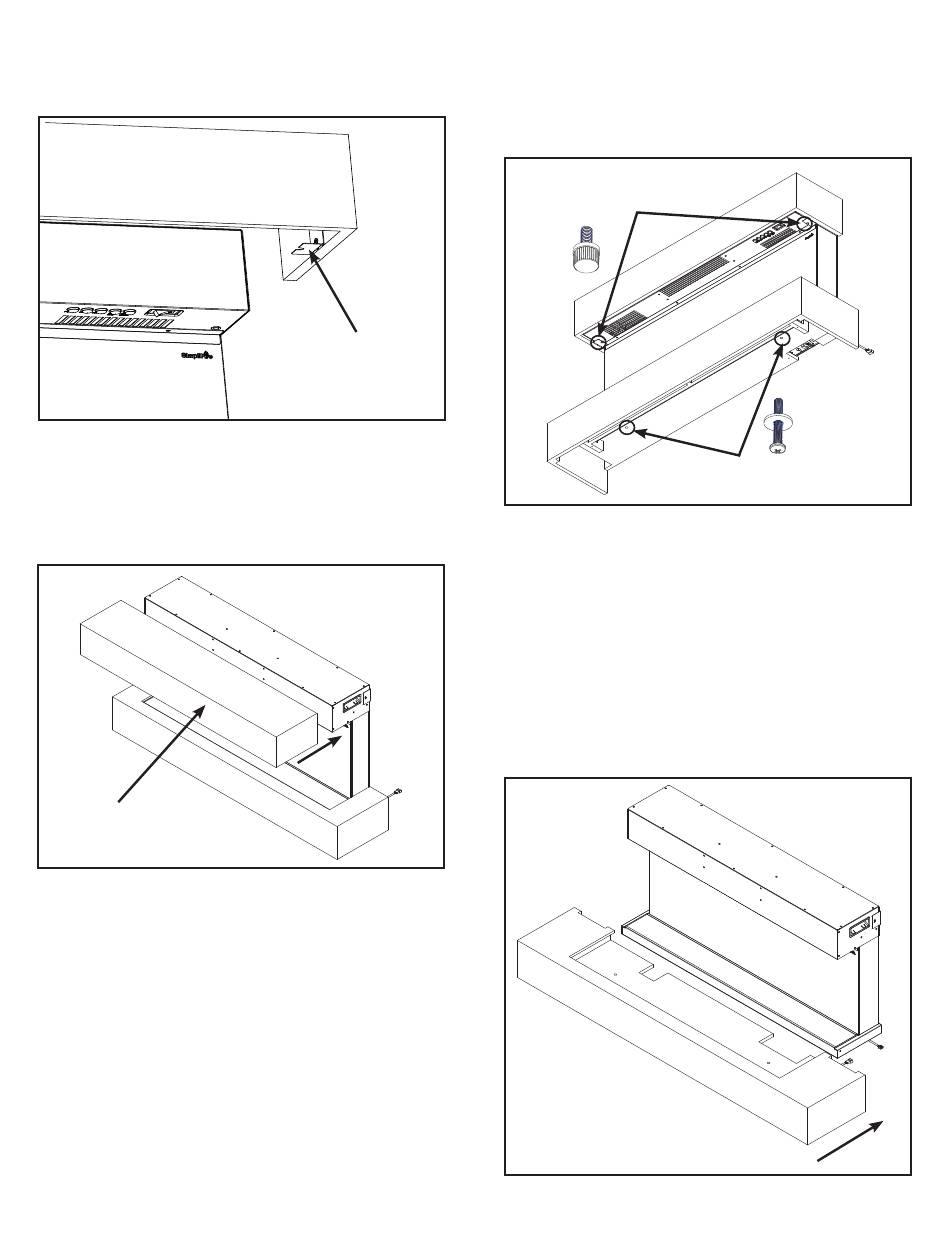

3. Before installing the top mantel, bend the mounting
tabs slightly into a more open position to allow for
clearance while installing the mantel. See Figure 3.
Figure 3
4. Slide the top mantel section onto the appliance See
Figure 4.
TOP MANTEL
Figure 4
MOUNTING TAB
SimpliFire • Format Mantel Instruction Manual • 2042-951 Rev. B • 10/21
5. Once the top mantel is in place, bend the mounting tabs
at a 90° angle so it is flush against the inner surface
of the appliance.
6. Secure the top mantel to the appliance using two (2)
thumb screws with rubber washers. See Figure 5.
M5X12 THUMB
SCREWS WITH RUBBER
WASHERS
Figure 5
SF-FM50-WH and SF-FM60-WH Installation
1. Slide the bottom mantel section onto the appliance
and connect the bottom mantel wire connection to the
appliance wire connector protruding from the bottom
of the appliance (the cover plate on the bottom of the
appliance may need to be removed to access the wire
connector). See Figure 6.
2. Fasten the bottom mantel section to the appliance with
two M5*25 Phillips screws. See Figure 10.
Figure 6
M5*25 PHILLIPS
SCREWS and WASHERS
3
