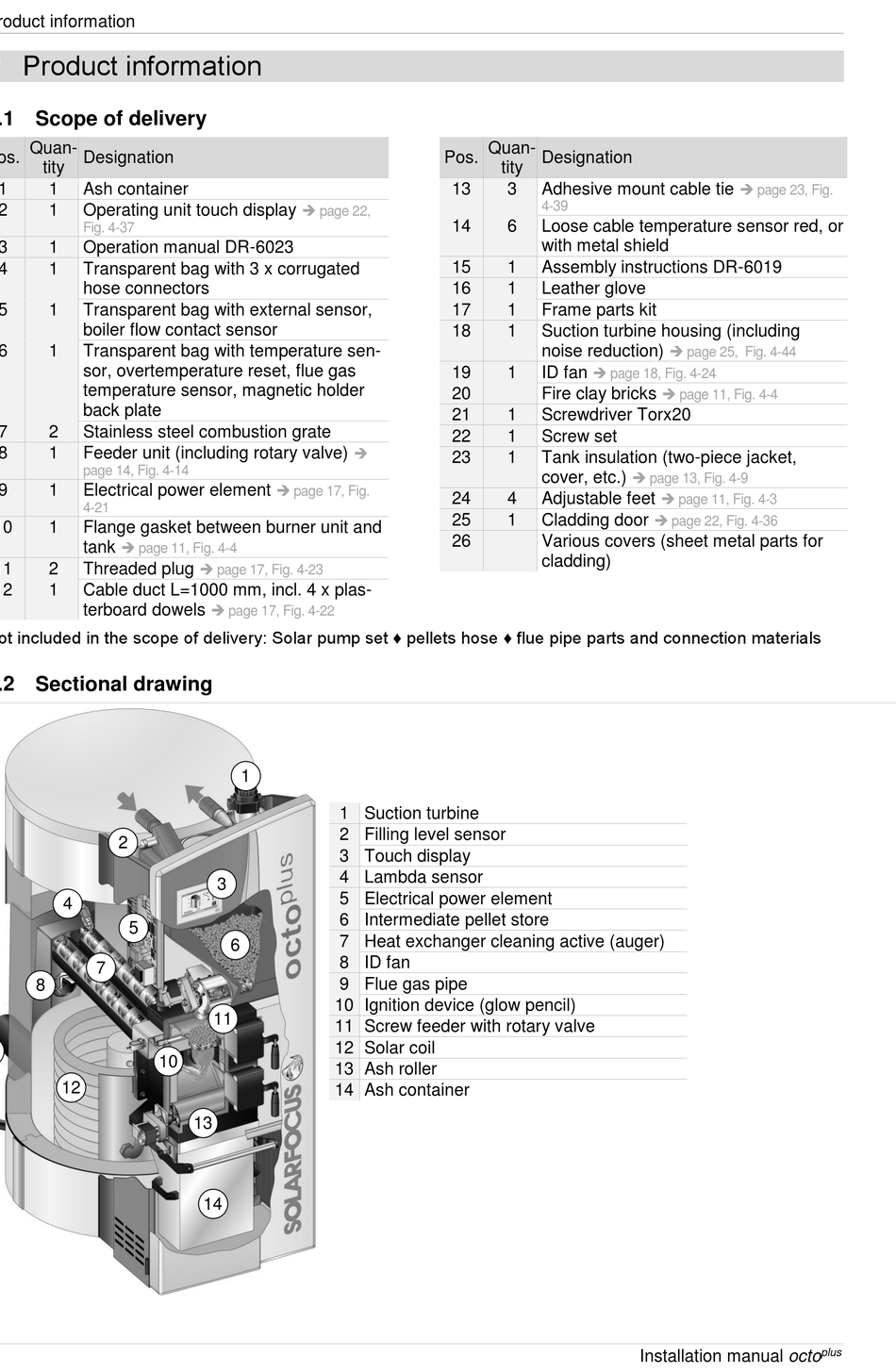

Product information

2 Product information

2.1 Scope of delivery

Quan-
Pos. Designation
tity
1 1 Ash container
2 1 Operating unit touch display
Fig. 4-37
3 1 Operation manual DR-6023
4 1 Transparent bag with 3 x corrugated
hose connectors
5 1 Transparent bag with external sensor,
boiler flow contact sensor
6 1 Transparent bag with temperature sen-
sor, overtemperature reset, flue gas
temperature sensor, magnetic holder
back plate
7 2 Stainless steel combustion grate
8 1 Feeder unit (including rotary valve)
page 14, Fig. 4-14
9 1 Electrical power element
4-21
10 1 Flange gasket between burner unit and
tank  page 11, Fig. 4-4
11 2 Threaded plug
12 1 Cable duct L=1000 mm, incl. 4 x plas-
terboard dowels
Not included in the scope of delivery: Solar pump set ♦ pellets hose ♦ flue pipe parts and connection materials

2.2 Sectional drawing

2
4
5
7
8
9
10
12
4
 page 22,

 page 17, Fig.
 page 17, Fig. 4-23
 page 17, Fig. 4-22
1
1 Suction turbine
2 Filling level sensor
3 Touch display
4 Lambda sensor
3
5 Electrical power element
6 Intermediate pellet store
7 Heat exchanger cleaning active (auger)
6
8 ID fan
9 Flue gas pipe
10 Ignition device (glow pencil)
11
11 Screw feeder with rotary valve
12 Solar coil
13 Ash roller
14 Ash container
13
14
Quan-
Pos. Designation
tity
13 3 Adhesive mount cable tie
4-39
14 6 Loose cable temperature sensor red, or
with metal shield
15 1 Assembly instructions DR-6019
16 1 Leather glove
17 1 Frame parts kit
18 1 Suction turbine housing (including
noise reduction)
19 1 ID fan  page 18, Fig. 4-24
20 Fire clay bricks
21 1 Screwdriver Torx20
22 1 Screw set
23 1 Tank insulation (two-piece jacket,
cover, etc.)
24 4 Adjustable feet
25 1 Cladding door
26 Various covers (sheet metal parts for
cladding)
 page 23, Fig.
 page 25, Fig. 4-44
 page 11, Fig. 4-4
 page 13, Fig. 4-9
 page 11, Fig. 4-3
 page 22, Fig. 4-36
