Tub/Hand Shower Trim
™
Operation & Maintenance Manual
Installation
Note:
For rough-in installation, please
see valve body installation guides.

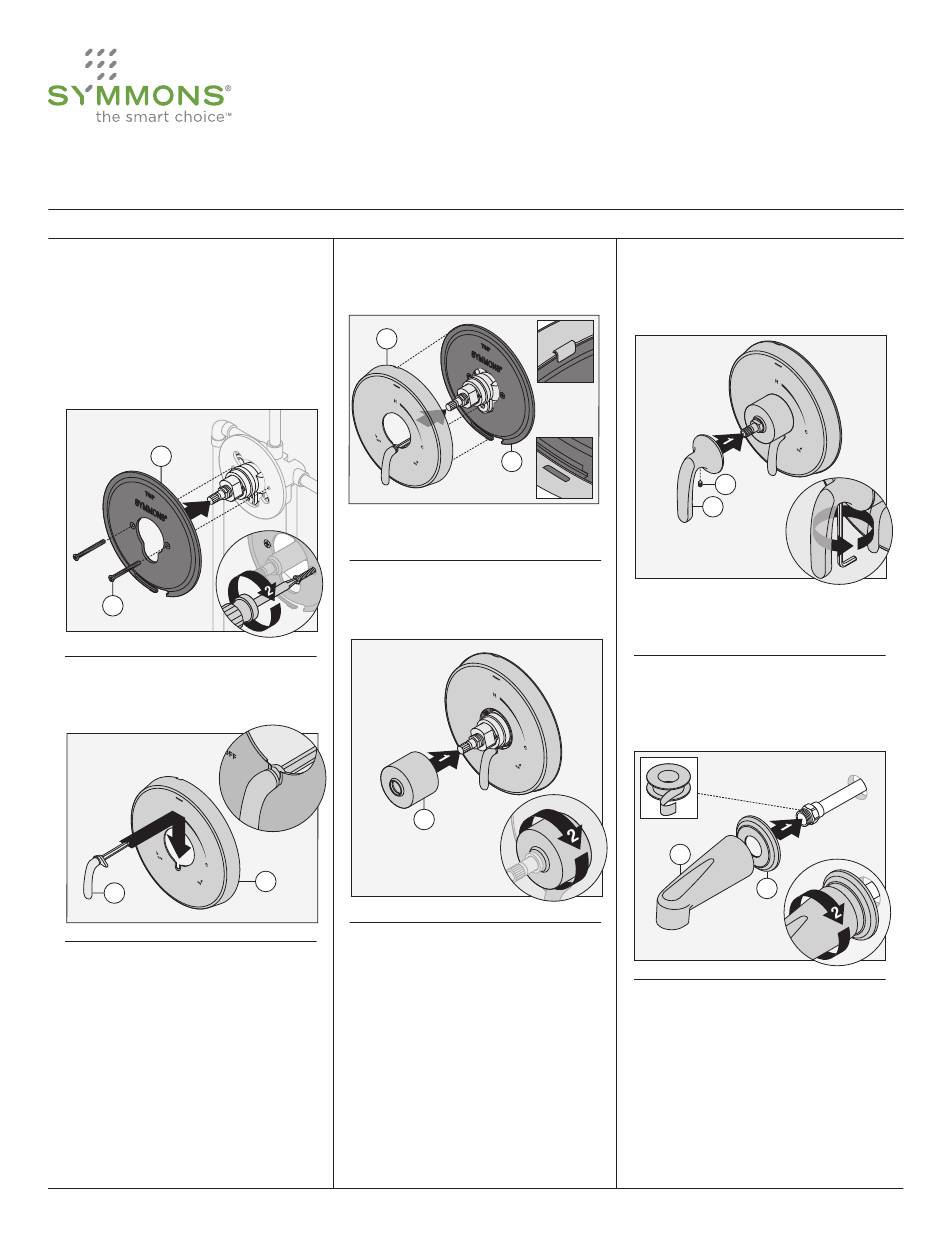

1) Install plastic mounting plate (L) to
shower valve (S-4002-BODY).
Secure each with two screws (K).
L
K
2) Attach secondary integral diverter
(I) to shower escutcheon (J).
I
Symmons Industries, Inc.
4
©2014 Symmons Industries, Inc.
3) Attach shower escutcheon (J) to
plastic mounting plate (L).
J
Note: Tabs should snap into place.
4) Install dome cover (H) to valve by
turning clockwise.
H
J
■
■
31 Brooks Drive
Braintree, MA 02184
■
www.symmons.com
5) Install shower handle (F) to valve.
Secure handle by tightening
Allen screw (G).
L
Notes: Handles should be facing
the 6 o'clock position.
6) Install tub spout escutcheon (O)
and tub spout (N) to stub out pipe.
Turn clockwise to secure.
■
Phone: (800)796-6667
■
■
gethelp@symmons.com
ZV-3029 REV A 082114
G
F
2
N
O
■
Fax: (800)961-9621
