S9612PP

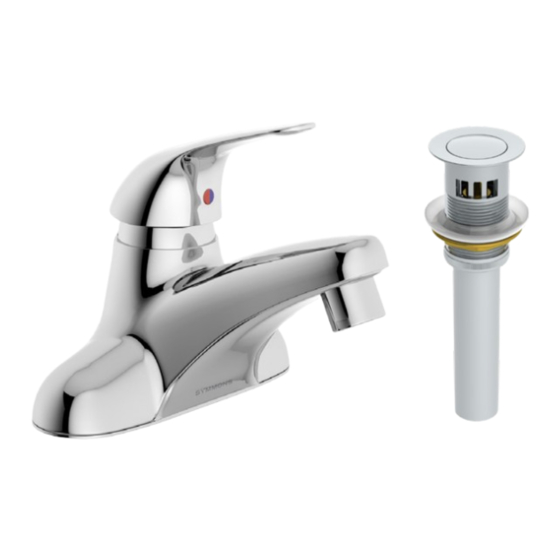

Single Handle Centerset Lavatory Faucet
Operation & Maintenance Manual
Model Numbers
☐
S9612PP
Single handle centerset lavatory faucet
with A Push Pop Drain Assembly
Compliance
- ASME A112.18.1/CSA B125.1
- NSF/ANSI/CAN 61: Q<1, NSF/ANSI 372
- WaterSense 1.0 gpm (3.8 L/min)
WARNING: This product can expose you to chemicals
including lead, which is known to the state of California to
cause cancer, birth defects, or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.

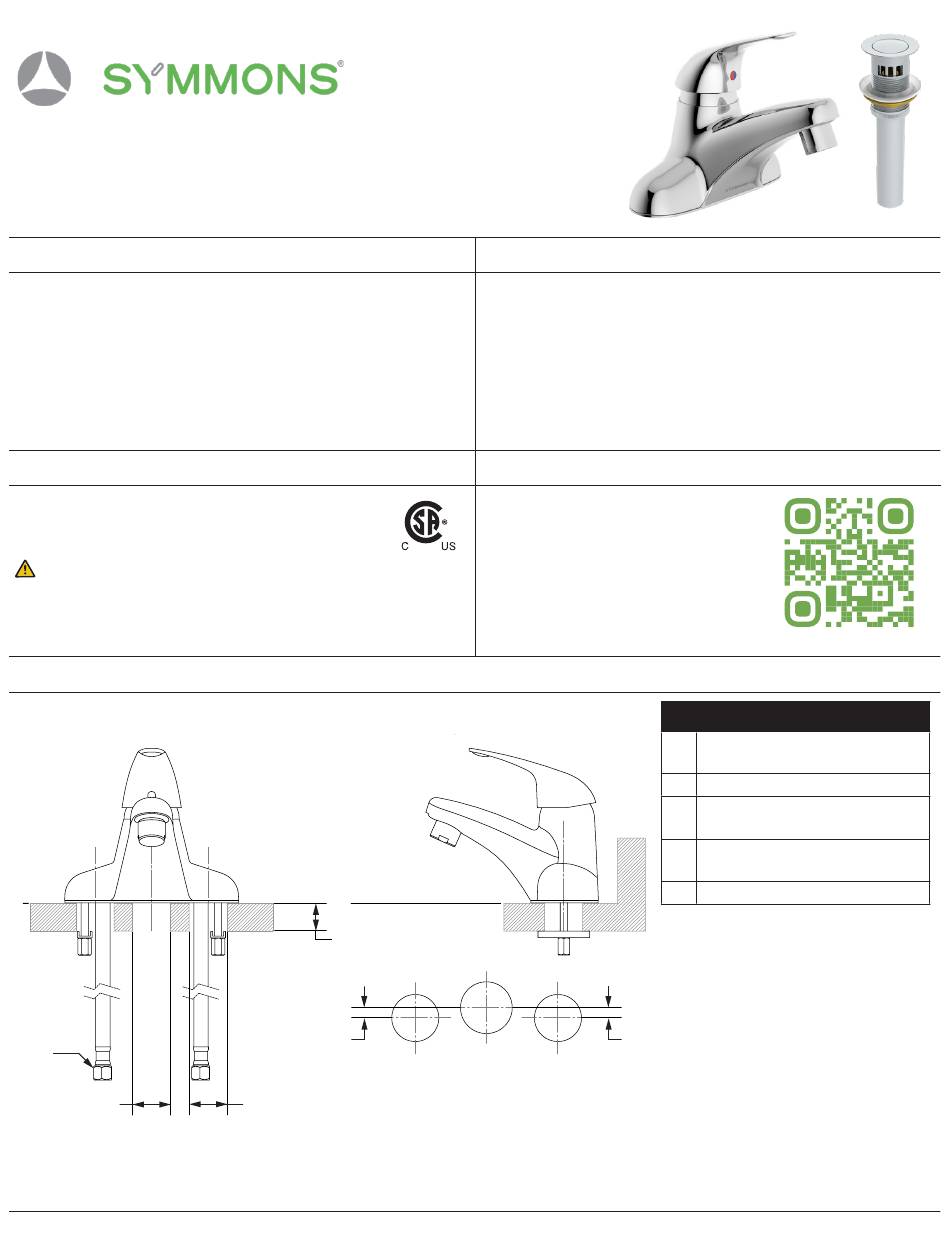

Dimensions
F F
G G
Note: Dimensions subject to change without notice.
Symmons Industries, Inc.
Copyright © 2023 Symmons Industries, Inc.
Origins®
E E
L L
H H
■
■
31 Brooks Drive
Braintree, MA 02184
■
symmons.com
Feature Highlights
•
4" mount
•
Quarter turn ceramic cartridge
•
Push-pop metal drain assembly
•
Standard 1.0gpm (3.8 L/min) flow rate
•
Temperature limit stop included
•
Components shall be metal and nonmetallic
construction, plated in standard polished chrome finish
Warranty
Limited Lifetime - to the original end
purchaser in consumer/residential
installations.
10 Years - for commercial/industrial
installations. Refer to
www.symmons.com/warranty for
complete warranty information.
L L
■
Phone: (800) 796-6667
■
■
gethelp@symmons.com
Measurements
Deck Thickness Ref.
E
Max. 1 1/8", 29 mm
F
3/8" Compression Fitting
Hole Size
G
Min. Ø 1 3/8", 35 mm
(2x) Hole Size
H
Min. Ø 1 1/4", 32 mm
L
1/4", 6 mm
■
Fax: (800) 961-9621
■
ZV-3723 REV 0
021723
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Symmons Origins S9612PP
Summary of Contents for Symmons Origins S9612PP
- Page 1 Note: Dimensions subject to change without notice. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2023 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3723 REV 0 021723...
-
Page 2: Parts Breakdown
Parts Breakdown Replacement Parts Item Description Part Number Handle Kit RL-226* Cartridge RL-227 RL-239-1.5* (1.5) Aerator RL-239-1.0* (1.0) RL-239-0.5* (0.5) Mounting Hardware RL-228 Push Pop Drain Assem- RL324* (S9612) P-26* Grid Drain (S9610) *Note: Append STN to part number for Satin Nickel finish. -
Page 3: Installation
Installation 3) Push Pop Install: Insert drain If replacing an older faucet 5) Remove aerator (I) and flush lines ensure water supply is turned body (L) into drain opening. From free of debris. Check for leaks. OFF before removing, then below, Tighten locking nut (O) turn faucet control valve ON to with gasket (M) and washer (N) -
Page 4: Maintenance
■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2023 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3723 REV 0 021723... - Page 5 Nota: Las dimensiones están sujetas a cambios sin previo aviso. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2023 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3723 REV 0 021723...
-
Page 6: Herramientas Requeridas
Desglose de piezas Repuestos Artículo Descripción Número de pieza Juego de manijas RL-226* Cartucho RL-227 RL-239-1.5* (1.5) Aireador RL-239-1.0* (1.0) RL-239-0.5* (0.5) Hardware de RL-228 montaje Montaje de drenaje RL324* (S9612) de empuje P-26* Desagüe de rejilla (S9610) *Nota: Anexar STN al número de pieza para el acabado en níquel satinado. -
Page 7: Instalación
Instalación 3) Push Pop Instalar: Inserte el cu- Si está reemplazando otro 5) Extraiga el aireador (I) y enjuague grifo, asegúrese de que el erpo de drenaje (L) en la abertura las líneas para que queden libres suministro de agua esté CER- de drenaje. -
Page 8: Mantenimiento
■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2023 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3723 REV 0 021723... -
Page 9: Spécifications
Remarque: Les dimensions sont sujettes à changer sans préavis. ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2023 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3723 REV 0 021723... -
Page 10: Pièces De Remplacement
Pièces de remplacement Pièces de remplacement Article Description Numéro de pièce Ensemble de poignée RL-226* Cartouche RL-227 RL-239-1.5* (1.5) Aérateur RL-239-1.0* (1.0) RL-239-0.5* (0.5) Matériel de xation RL-228 Montaje de drenaje RL324* (S9612) de empuje P-26* Drain de la grille (S9610) *Remarque: Juxtaposer le STN au numéro de pièce pour le fini nickel satiné. - Page 11 Installation 3) Push Pop Instalar: Inserte el cu- 5) Enlevez l’aérateur (I) et rincez les Si vous remplacez un vieux robinet, assurez-vous que conduites de tout débris. Vérifier erpo de drenaje (L) en la abertura l’approvisionnement en eau de drenaje. Desde abajo, apriete pour déceler les fuites.
- Page 12 ■ ■ ■ ■ Symmons Industries, Inc. 31 Brooks Drive Braintree, MA 02184 Phone: (800) 796-6667 Fax: (800) 961-9621 ■ ■ ■ ■ Copyright © 2023 Symmons Industries, Inc. symmons.com gethelp@symmons.com ZV-3723 REV 0 021723...
