O P E R A T I N G I N S T R U C T I O N S

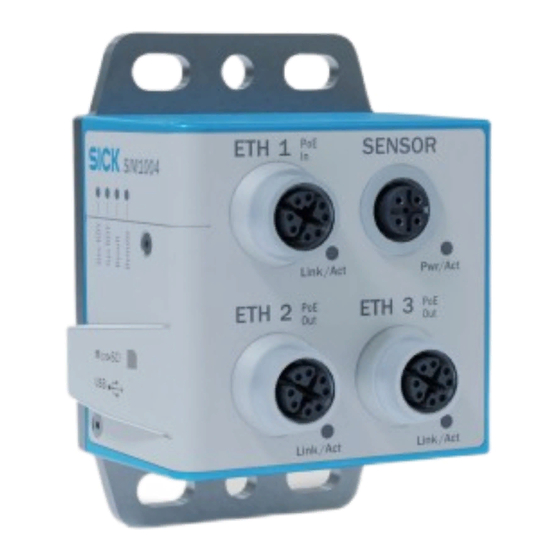

SIM1004
Sensor Integration Machine

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIM1004 and is the answer not in the manual?

Questions and answers

Related Manuals for SICK SIM1004

Summary of Contents for SICK SIM1004

  • Page 1 O P E R A T I N G I N S T R U C T I O N S SIM1004 Sensor Integration Machine...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | SIM1004 8023516/1BQH/2021-07-28 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Connecting peripheral devices..............Connecting voltage supply............... Commissioning.................. 21 Preparatory commissioning..............8023516/1BQH/2021-07-28 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM1004 Subject to change without notice...
  • Page 4 11.4 Ambient data..................... Annex....................29 12.1 Dimensional drawing................12.2 Licenses....................O P E R A T I N G I N S T R U C T I O N S | SIM1004 8023516/1BQH/2021-07-28 | SICK Subject to change without notice...

  • Page 5: About This Document

    … highlights useful tips and recommendations as well as information for efficient and trouble-free operation. 8023516/1BQH/2021-07-28 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM1004 Subject to change without notice...

  • Page 6: Further Information

    Before calling, make a note of all type label data such as type code, serial number, etc., to ensure faster processing. O P E R A T I N G I N S T R U C T I O N S | SIM1004 8023516/1BQH/2021-07-28 | SICK...

  • Page 7: Safety Information

    Any use of accessories not specifically approved by SICK AG is at your own risk. 8023516/1BQH/2021-07-28 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM1004 Subject to change without notice...

  • Page 8: Cybersecurity

    SICK AG. This applies in particular to opening the housing, even as part of mounting and electrical installation. O P E R A T I N G I N S T R U C T I O N S | SIM1004 8023516/1BQH/2021-07-28 | SICK...

  • Page 9: Requirements For Skilled Persons And Operating Personnel

    8023516/1BQH/2021-07-28 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM1004 Subject to change without notice...
  • Page 10 The product is fitted with LEDs in risk group 0. The accessible radiation from these LEDs does not pose a danger to the eyes or skin. O P E R A T I N G I N S T R U C T I O N S | SIM1004 8023516/1BQH/2021-07-28 | SICK...

  • Page 11: Product Description

    PC. The required app is developed in SICK AppStudio. SICK AppSpace 8023516/1BQH/2021-07-28 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM1004 Subject to change without notice...

  • Page 12: Preset Ethernet Interfaces

    The individual IP addresses can be changed using the Welcome app pre-installed in the device or via the SICK PC tool SOPAS ET . O P E R A T I N G I N S T R U C T I O N S | SIM1004 8023516/1BQH/2021-07-28 | SICK...

  • Page 13: Transport And Storage

    For storage periods of longer than 3 months, check the general condition of all components and packaging on a regular basis. 8023516/1BQH/2021-07-28 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM1004 Subject to change without notice...

  • Page 14: Mounting

    Mark the mounting holes. Proceed to drill the mounting holes. O P E R A T I N G I N S T R U C T I O N S | SIM1004 8023516/1BQH/2021-07-28 | SICK Subject to change without notice...

  • Page 15: Mounting The Device

    Use self-locking or lock nuts on mounting sites that are exposed to vibrations to prevent the holding plates from loosening. 8023516/1BQH/2021-07-28 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM1004 Subject to change without notice...

  • Page 16: Electrical Installation

    Customer assembly of the cables is only necessary in special cases. Ensure a sufficient length of cable is provided, e.g., for strain-relief clamps. O P E R A T I N G I N S T R U C T I O N S | SIM1004 8023516/1BQH/2021-07-28 | SICK...

  • Page 17: Overview Of Connections

    Mode B* Option 1 Option 2 Option 1 Option 2 8023516/1BQH/2021-07-28 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM1004 Subject to change without notice...
  • Page 18 ETH2-3: with class 4 PoE Out • PoE voltage supply is factory deactivated O P E R A T I N G I N S T R U C T I O N S | SIM1004 8023516/1BQH/2021-07-28 | SICK Subject to change without notice...

  • Page 19: Connecting Peripheral Devices

    The device can be connected to a wide range of sensors and cameras. 8023516/1BQH/2021-07-28 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM1004 Subject to change without notice...

  • Page 20: Connecting Voltage Supply

    Have the user connect the voltage supply. Have the user activate the voltage. O P E R A T I N G I N S T R U C T I O N S | SIM1004 8023516/1BQH/2021-07-28 | SICK Subject to change without notice...

  • Page 21: Commissioning

    The device requires a certain start-up time. The readiness is indicated by the green "Dev RDY" LED. 8023516/1BQH/2021-07-28 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM1004 Subject to change without notice...

  • Page 22: Operation

    Remote Time delay before availability due to boot process (approx. 30 s) O P E R A T I N G I N S T R U C T I O N S | SIM1004 8023516/1BQH/2021-07-28 | SICK Subject to change without notice...
  • Page 23 Ethernet. Connection established with Ethernet. Data transmission via Ethernet. 8023516/1BQH/2021-07-28 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM1004 Subject to change without notice...

  • Page 24: Maintenance

    Recommended: At least every 6 months. O P E R A T I N G I N S T R U C T I O N S | SIM1004 8023516/1BQH/2021-07-28 | SICK Subject to change without notice...

  • Page 25: Decommissioning

    Separate the recyclable materials by type and place them in recycling containers. ■ 8023516/1BQH/2021-07-28 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM1004 Subject to change without notice...

  • Page 26: Technical Data

    10/100/1,000 Mbit/s Protocol TCP/IP, FTP (image transfer), OPC-UA, MQTT O P E R A T I N G I N S T R U C T I O N S | SIM1004 8023516/1BQH/2021-07-28 | SICK Subject to change without notice...

  • Page 27: Mechanics And Electronics

    Vibration resistance EN 60068-2-6: 2008-02 Shock resistance EN 60068-2-27:2009-05 8023516/1BQH/2021-07-28 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM1004 Subject to change without notice...
  • Page 28 Permissible relative humidity 90%, non-condensing Height position max. 2,000 m O P E R A T I N G I N S T R U C T I O N S | SIM1004 8023516/1BQH/2021-07-28 | SICK Subject to change without notice...

  • Page 29: Annex

    Printed copies of the license texts are also available on request. 8023516/1BQH/2021-07-28 | SICK O P E R A T I N G I N S T R U C T I O N S | SIM1004 Subject to change without notice...
  • Page 30 E-Mail office@sick.com.gr E-Mail info@sick.ru Vietnam Hong Kong Singapore Phone +65 6744 3732 Phone +852 2153 6300 Phone +65 6744 3732 E-Mail sales.gsg@sick.com E-Mail ghk@sick.com.hk E-Mail sales.gsg@sick.com Detailed addresses and further locations at www.sick.com SICK AG | Waldkirch | Germany | www.sick.com...
