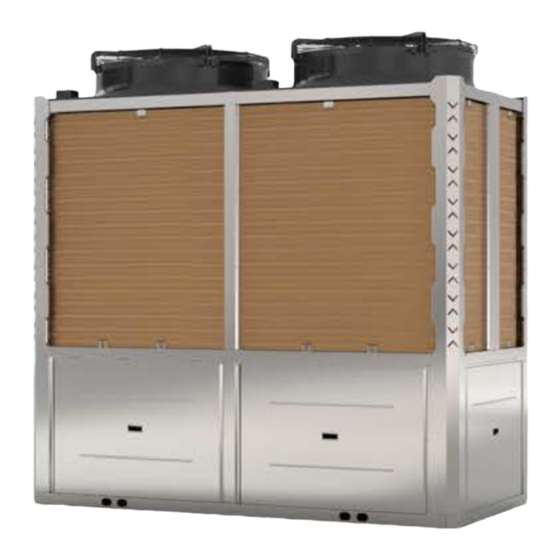

Summary of Contents for evoheat CS-i Series
-
Page 2: Table Of Contents
Page 1 CS-i Series Manual Contents 1. Introduction ..............................2 2. Dimensions ..............................3 3. Safety Instructions ............................4 4. Installation ..............................4 4.1 Rubber Feet ............................4 4.2 Location of Installation .......................... 5 4.3 Airflow Clearances ..........................5 4.4 Adequate Water Flow ..........................5 4.5 Drainage &... -
Page 3: Introduction
EvoHeat unit. Instructions in this manual must always be followed. Failure to comply with these recommendations will invalidate the warranty. Should you have any questions or require technical support, call the EvoHeat office on 1300 859 933 to speak to our team. -
Page 4: Dimensions
Page 3 CS-i Series Manual 2. Dimensions Evo CS-i 65 Wat er ou tle t Dr ain age Wat er in le t A (L) B (W) C (H) 1750 1750 Evo CS-i 130 Water Outlet Ø11 0 Water Inle t Ø11 0... -
Page 5: Safety Instructions
Upon receiving the unit, check the packaging for any obvious signs of damage. Inform EvoHeat immediately if there is any evidence of rough handling. When the heater has been removed from the packaging check the refrigerant gauge on the front panel of the unit. -
Page 6: Location Of Installation
When units of a similar height are placed side by side, EvoHeat recommend a 1500mm clearance between units. *Fan discharge distance can be reduced by adding a Plenum to alter the air flow direction. Contact EvoHeat or a HVAC specialist for further advice. If you do not have a location with these suggested clearances, please contact our EvoHeat Tech Support Specialist to discuss appropriate installation locations. -
Page 7: Drainage & Condensation
Removal of condensation can be achieved via the installation of a condensate pan or by plumbing to a waste water drain. If plumbing, EvoHeat recommend raising the heat pump of the ground approximately 100mm to allow enough space to connect the condensate lines under the heat pump together, then drain to a wastewater drain. -
Page 8: Initial Start-Up
Page 7 CS-i Series Manual 4.8 Initial Start-up In order for the unit to heat the pool or spa, the filter pump must be running to circulate water through the heat exchanger. After installation is completed, follow the steps below: 1. -
Page 9: Operation
LOCK Lock or unlock the screen. 5.2 Operating Functions EvoHeat have developed a YouTube Channel with video walkthroughs of the different controller functions. Scan the QR code or head to our channel to view the videos we have available https://www.youtube.com/evoheat 5.2.1 Startup &... -
Page 10: Clock Settings
Page 9 CS-i Series Manual 5.2.3 Clock Settings Press the CLOCK button to bring up the clock menu. This menu allows you to either change the system date & time (left) or set timers (right). 5.2.3.1 Setting the Date & Time Click the value you wish to change to set the time directly. -
Page 11: Fault History
Page 10 CS-i Series Manual 5.2.5 Fault History If there have been no faults, the Fault button on the main menu will appear dimmed. When a fault does occur, the fault icon will flash. The fault interface menu will record the time, code, and name of the fault for you to view. -
Page 12: Troubleshooting
WATER IN temp. Check also the INLET WATER TEMP is lower than the HEAT TEMP set point. If the gauge shows less than 0.8MPA contact EvoHeat tech support to check the refrigerant system. IS THE FAN... -
Page 13: Error Codes (Cs-I 65 & 130)
Page 12 CS-i Series Manual 6.1 Error Codes (CS-i 65 & 130) Fault Protect/fault Reason Elimination methods display Inlet Temp. Sensor Fault The temp. Sensor is broken or short circuit Check or change the temp. Sensor Outlet Temp. Sensor Fault The temp. - Page 14 Page 13 CS-i Series Manual Fault Protect/fault Reason Elimination methods display Drv1 MOP alarm MOP drive alarm Recovery after the 150s Frequency conversion board and Inverter offline Check the communication connection main board communication failure IPM protection IPM modular protection...
-
Page 15: Error Codes (Cs-I 250)
Page 14 CS-i Series Manual 6.2 Error Codes (CS-i 250) Fault Protect/fault Reason Elimination methods display Inlet temp. Sensor Fault The temp. sensor is broken or short circuit Check or change the temp. sensor Outlet temp. Sensor Fault The temp. sensor is broken or short circuit Check or change the temp. - Page 16 Page 15 CS-i Series Manual Syst4:Low pressure sensor Fault PP41 The sensor is broken or short circuited Check and change the pressure sensor Syst1:High pressure sensor Fault PP12 The sensor is broken or short circuited Check and change the pressure sensor...
- Page 17 Page 16 CS-i Series Manual Syst2:Comp. IPM Over-temp. Syst2 compressor running current is too Check if there is a gap in the installation of the F255 Prot. large fluorine-cooled heat sink Syst2 compressor drive board has poor Syst2:Comp. Overcurrent Prot.
-
Page 18: Appendix
Page 17 CS-i Series Manual 7. Appendix 7.1 Parameter List Meaning Default Remarks Refrigeration target temperature set point 27°C Adjustable Heating the target temperature set point 27°C Adjustable Automatic target temperature set point 27°C Adjustable 7.2 Cable Specifications Single Phase Unit... -
Page 19: Wiring Diagrams
Page 18 CS-i Series Manual 7.3 Wiring Diagrams 485B3 485A3 A-OUT(R’) B-OUT(S’)C-OUT(T’) N-OUT(N’) A-IN(R) B-IN(S) C-IN(T) N-IN(N) info@evoheat.com.au 1300 859 933 www.evoheat.com.au... - Page 20 Page 19 CS-i Series Manual A-OUT(R’)B-OUT(S’) C-OUT(T’) N-OUT(N’) A-OUT(R’) B-OUT(S’) C-OUT(T’) N-OUT(N’) EMI（2） EMI（1） N-IN(N) A-IN(R) B-IN(S) C-IN(T) A-IN(R) B-IN(S) C-IN(T) N-IN(N) info@evoheat.com.au 1300 859 933 www.evoheat.com.au...
- Page 21 Page 20 CS-i Series Manual A-OUT(R’)B-OUT(S’) C-OUT(T’) N-OUT(N’) A-OUT(R’) B-OUT(S’) C-OUT(T’) N-OUT(N’) EMI（2） EMI（1） A-IN(R) B-IN(S) C-IN(T) N-IN(N) A-IN(R) B-IN(S) C-IN(T) N-IN(N) A-OUT(R’) B-OUT(S’) C-OUT(T’) N-OUT(N’) EMI（3） A-IN(R) B-IN(S) C-IN(T) N-IN(N) A-OUT(R’) B-OUT(S’) C-OUT(T’) N-OUT(N’) EMI（4） A-IN(R) B-IN(S) C-IN(T) N-IN(N) info@evoheat.com.au...
- Page 22 Page 21 CS-i Series Manual Number Sign Meaning OUT1 Compressor (output 220-230VAC) OUT2 Water pump (output 220-230VAC) OUT3 4-way valve (output 220-230VAC) OUT4 High speed of fan (output 220-230VAC) OUT5 Low speed of fan (output 220-230VAC) AC-L Live wire (input 220-230VAC)
-
Page 23: Maintenance
8. Maintenance 8.1 F.A.Q It is recommended that you get your EvoHeat unit serviced once a year by your local certified air conditioning or refrigeration technician. If your unit is located in a coastal area, more frequent maintenance may be necessary. During the service, they will check the operational pressures of the refrigeration system and give the unit and fins a good clean to ensure maximum performance. -
Page 24: Advanced
Page 23 CS-i Series Manual 8.3 Advanced CHECK THE AREA GENERAL WORK AREA All maintenance staff and others working in the local area Prior to beginning work on systems containing flammable shall be instructed on the nature of work being carried out. - Page 25 Page 24 CS-i Series Manual Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance.
- Page 26 Page 25 CS-i Series Manual The refrigerant charge shall be recovered into the correct recovery When breaking into the refrigerant cylinders. The system shall be "flushed" with OFN to render the circuit to make repairs or for any unit safe. This process may need to be repeated several times.
-
Page 27: Warranty
REGISTER YOUR WARRANTY EvoHeat highly recommend customers complete their warranty details online to ensure efficient warranty claim processing. To register your warranty, scan our QR Code or head to our website and fill in the Warranty Registration Form: https://evoheat.com.au/warranty-registration/...
