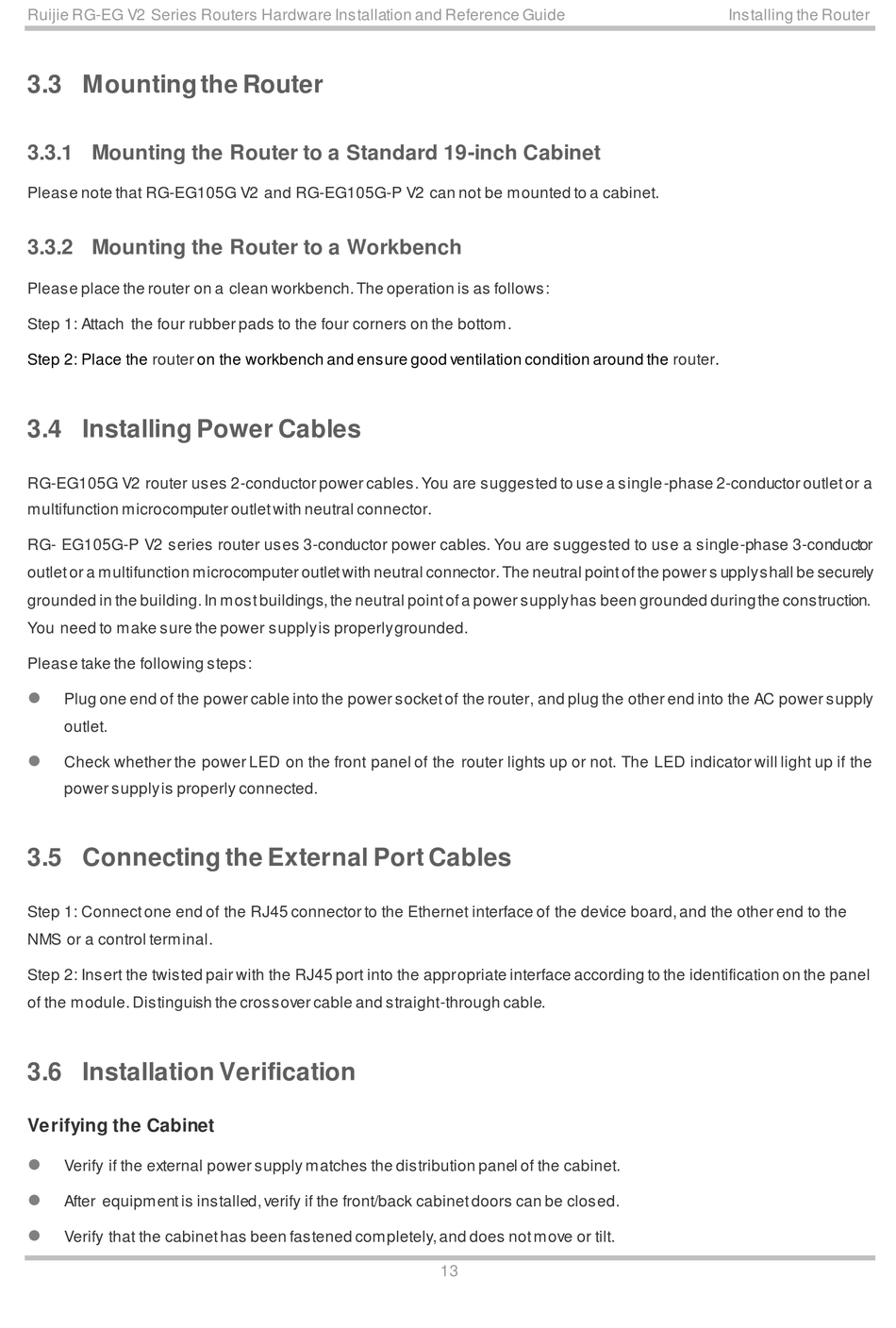

Ruijie RG-EG V2 Series Routers Hardware Installation and Reference Guide

3.3 Mounting the Router

3.3.1 Mounting the Router to a Standard 19-inch Cabinet
Please note that RG-EG105G V2 and RG-EG105G-P V2 can not be mounted to a cabinet.
3.3.2 Mounting the Router to a Workbench
Please place the router on a clean workbench. The operation is as follows:
Step 1: Attach the four rubber pads to the four corners on the bottom.
Step 2: Place the router

3.4 Installing Power Cables

RG-EG105G V2 router uses 2-conductor power cables. You are suggested to use a single -phase 2-conductor outlet or a
multifunction microcomputer outlet with neutral connector.
RG- EG105G-P V2 series router uses 3-conductor power cables. You are suggested to use a single-phase 3-conductor
outlet or a multifunction microcomputer outlet with neutral connector. The neutral point of the power s upply shall be securely
grounded in the building. In most buildings, the neutral point of a power supply has been grounded during the construction.
You need to make sure the power supply is properly grounded.
Please take the following steps:

Plug one end of the power cable into the power socket of the router, and plug the other end into the AC power supply
outlet.

Check whether the power LED on the front panel of the router lights up or not. The LED indicator will light up if the
power supply is properly connected.
3.5 Connecting the External Port Cables
Step 1: Connect one end of the RJ45 connector to the Ethernet interface of the device board, and the other end to the
NMS or a control terminal.
Step 2: Insert the twisted pair with the RJ45 port into the appropriate interface according to the identification on the panel
of the module. Distinguish the crossover cable and straight-through cable.

3.6 Installation Verification

Verifying the Cabinet

Verify if the external power supply matches the distribution panel of the cabinet.

After equipment is installed, verify if the front/back cabinet doors can be closed.

Verify that the cabinet has been fastened completely, and does not move or tilt.
on the workbench and ensure good ventilation condition around the router.
13
Installing the Router
