  • Page 1 Ruijie Reyee RG-EG V2 Series Routers Hardware Installation and Reference Guide...
  • Page 2 This document is provided “as is”. The contents of this document are subject to change without any notice. Please obtain the latest information through the Ruijie Networks website. Ruijie Networks endeavors to ensure content accuracy and will not shoulder any responsibility for losses and damages caused due to content omissions, inaccuracies or errors.
  • Page 3 It is intended for the users who have some experience in installing and maintaining network hardware . At the same time, it is assumed that the users are already familiar with the related terms and concepts. Obtaining Technical Assistance  Ruijie Networks Website: https://www.ruijienetworks.com/  Technical Support Website: https://ruijienetworks.com/support...

  • Page 4: Product Overview

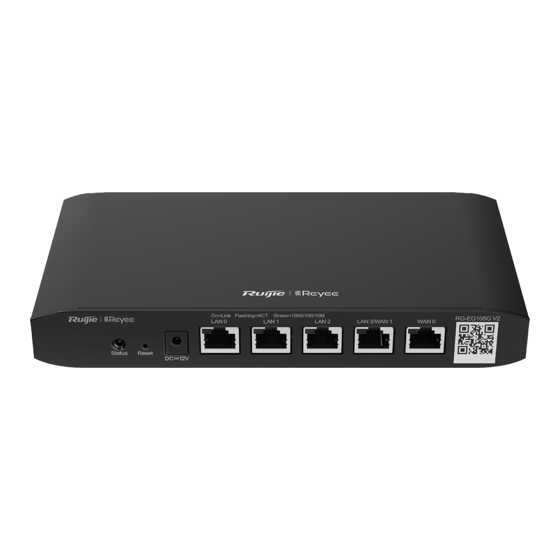

    Featured with global-leading semiconductor technologies and communication control technologies, Ruijie RG-EG V2 series router is a data communication product developed by Ruijie Netwo rks with independent intellectual property right. The RG-EG V2 series router is designed according to international standards, similar to the mainstream router products in the international market.
  • Page 5 Ruijie RG-EG V2 Series Routers Hardware Installation and Reference Guide Product Overview EN 55035:2017 ETSI EN 300 386 V2.1.1 (2016-07) Safety Standards GB4943-2011 EN 62368-1 Dimensions (without rubber pads) 206.5 mm x 28 mm x 108.5 mm (8.13 in. x 1.1 in. x 4.27 in.)
  • Page 6 Status Blinking green (0.5Hz): The device is not connected to Ruijie Cloud. Solid green: The device has started up, and is connected to Ruijie Cloud. Blinking green (10Hz): The device is restoring the factory settings or starting up. Solid green: The port is up.
  • Page 7 Ruijie RG-EG V2 Series Routers Hardware Installation and Reference Guide Product Overview AC input: Rated voltage range: 100V to 240V Power Module Maximum voltage range: 90V to 264V Frequency: 50/60 Hz Rated current: 1.5A Inner diameter: 2.1mm Outer diameter: 5.5mm...
  • Page 8 Ruijie RG-EG V2 Series Routers Hardware Installation and Reference Guide Product Overview Figure 1-5 Front Panel of RG-EG105G-P V2 Note 1. System status LED 4. LAN ports 2. Reset button 5. LAN/WAN port 3. Power supply 6. WAN port Reset button: Press the button for less than 2 seconds, the system will restart; press for more than 5 seconds until the system status LED blinks, the system will restore the factory settings and restart.
  • Page 9 WAN port via the Web configuration. LED Indicator LED Indicator Description Blinking green (0.5Hz): The device is not connected to Ruijie Cloud or PoE is overcurrent. Status Solid green: The device has started up, and is connected to Ruijie Cloud.

  • Page 10: Preparation Before Installation

    Ruijie RG-EG V2 Series Routers Hardware Installation and Reference Guide Preparation before Installation 2 Preparation before Installation 2.1 Safety Suggestions To avoid personal injury and equipment damage, please carefully read the safety suggestions before you install the RG-EG V2 series router.

  • Page 11: Static Discharge Damage Prevention

    Ruijie RG-EG V2 Series Routers Hardware Installation and Reference Guide Preparation before Installation supplies (that is, Action current of the leakage protector/2/Maximum leakage current of each power supply = 30/2/3.5 = 4.28). In other words, the leakage protector with 30 mA rated action current supports no more than four power supplies.

  • Page 12: Temperature And Humidity

    Ruijie RG-EG V2 Series Routers Hardware Installation and Reference Guide Preparation before Installation the router at regular intervals (like once every 3 months). Especially, avoid dust from blocking the screen mesh on the back of the cabinet. 2.2.3 Temperature and Humidity To ensure the normal operation and prolong the service life of router, you should keep proper temperature and humidity in the equipment room.
  • Page 13 Ruijie RG-EG V2 Series Routers Hardware Installation and Reference Guide Preparation before Installation 2.2.5 Grounding A good grounding system is the basis for the stable and reliable operation of the RG-EG V2 series router. It is the chief condition to prevent lightning stroke and resist interference. Please carefully check the grounding conditions on the installation site according to the grounding requirements, and perform grounding operations properly as required.

  • Page 14: Installation Tool Requirements

    Ruijie RG-EG V2 Series Routers Hardware Installation and Reference Guide Preparation before Installation 2.2.7 Mounting The router supports wall mounting. The recommended screws and wall anchors are listed in the following table: Type Specification Quantity Pan-head self-tapping screw with cross recess ST4.2*20PWA-9mm...

  • Page 15: Installing The Router

    Ruijie RG-EG V2 Series Routers Hardware Installation and Reference Guide Installing the Router 3 Installing the Router 3.1 Installation Flowchart Please take the following steps: Figure 3-1 Installation Flowchart 3.2 Confirmations before Installation Before installation, please confirm the following points: ...

  • Page 16: Mounting The Router

    Ruijie RG-EG V2 Series Routers Hardware Installation and Reference Guide Installing the Router 3.3 Mounting the Router 3.3.1 Mounting the Router to a Standard 19-inch Cabinet Please note that RG-EG105G V2 and RG-EG105G-P V2 can not be mounted to a cabinet.
  • Page 17 Ruijie RG-EG V2 Series Routers Hardware Installation and Reference Guide Installing the Router  Verify that the equipment has been installed in the cabinet, and all the cable s have been fastened to the cabinet. Verifying the Cables  Verify that the fibers and twisted pairs match the ports.

  • Page 18: System Debugging

    Ruijie RG-EG V2 Series Routers Hardware Installation and Reference Guide System Debugging 4 System Debugging 4.1 Establishing the Debugging Environment Establishing the Debugging Environment Connect the PC to the LAN port of the router, and configure the PC to obtain an IP address automatically.

  • Page 19: Configuring Router

    Ruijie RG-EG V2 Series Routers Hardware Installation and Reference Guide System Debugging 4.3 Configuring Router To use the router, more configuration should be made on the device. Please refer to the corresponding command reference and configuration guide.

  • Page 20: Maintenance And Troubleshooting

    Ruijie RG-EG V2 Series Routers Hardware Installation and Reference Guide Maintenance and Troubleshooting 5 Maintenance and Troubleshooting 5.1 General Troubleshooting Procedure 5.2 Troubleshooting Common Faults Symptom Possible Causes Solution Forgetting the login A password is manually configured but Press the Reset Button for more than 5 seconds to password it is forgotten.

  • Page 21: Appendix A Connectors And Connection Media

    Ruijie RG-EG V2 Series Routers Hardw are Installation and Reference Guide Appendix A Connectors and Connection Media Appendix A Connectors and Connection Media 1000BASE-T/100BASE-TX/10BASE-T Ports The 1000BASE-T/100BASE-TX/10BASE-T is a port that supports adaptation of three rates, and automatic MDI/MDIX Crossover at these three rates.
  • Page 22 Ruijie RG-EG V2 Series Routers Hardw are Installation and Reference Guide Appendix A Connectors and Connection Media Optical Fiber Connection For the optical fiber ports, select single-mode or multiple-mode optical fibers for connection according to the fiber module connected. The connection schematic diagram is shown in Figure A-4:...

  • Page 23: Appendix B: Cabling Recommendations In Installation

    Ruijie RG-EG V2 Series Routers Hardw are Installation and Reference Guide Appendix B: Cabling Recommendations in Installation Appendix B: Cabling Recommendations in Installation When the device is installed in standard 19-inch cabinets, the cables are tied in the binding rack on the cabinet by the cabling rack, and top cabling or bottom cabling is adopted according to the actual situation in the equipment room.
  • Page 24 Ruijie RG-EG V2 Series Routers Hardw are Installation and Reference Guide Appendix B: Cabling Recommendations in Installation  Cables of different types (such as power cords, signal cables, and grounding cables) should be separated in cabling and bundling. When they are close, crossover cabling can be adopted. In the case of parallel cabling, power cords and signal cables should maintain a space equal to or greater than 30 mm.
  • Page 25 Ruijie RG-EG V2 Series Routers Hardw are Installation and Reference Guide Appendix B: Cabling Recommendations in Installation  When cables need to bend, you should first bundle them up. However, the buckle cannot be bundled within the bend area. Otherwise, significant stress may be generated in cables, breaking cable cores. As shown in Figure D -3.
  • Page 26 Ruijie RG-EG V2 Series Routers Hardw are Installation and Reference Guide Appendix B: Cabling Recommendations in Installation  The hard power cable should be fastened by the terminal connection area to prevent stress.  Do not use self-tapping screws to fasten terminals.
