BIO-MED DEVICES IC-2A Service Manual page 8

PATIENT
HOSE
MAX. PRESSURE PRESSURE
GAUGE
CAUTION:
THE CIRCUIT WILL NOT
PRESSURIZE WITH T HIS
KNOB AT THE FULL CW
POSITION.
WARNING:
CLEAN, DRY 50±5 PSI REGULATED SOURCES OF MEDICAL GRADE OXYGEN & AIR
MUST BE USED OR MALFUNCTION CAN RESULT. OXYG EN CONCENTRATION OF
POWER SUPPLY GAS AND/OR ALTITUDE AFFECT TIMING ACCURACY. CONSU LT
THE INSTRUCTIO N MANUAL FOR CORRECTION FACTORS.
CAUTION:
FEDERAL LAW RESTRICTS THIS DEVICE TO SALE BY OR ON THE ORDER OF A
PHYSICIAN.
BEFORE OPERATING THIS INSTRUMENT, READ THE INSTRUCTION
!
MANUAL THOROUGHLY. PARTICULAR ATTENTION SHO ULD BE GIVEN
TO THE USE OF THE DEMAND MODE.
DATE OF M FR.
0086
BIO−MED DEVICES, INC.

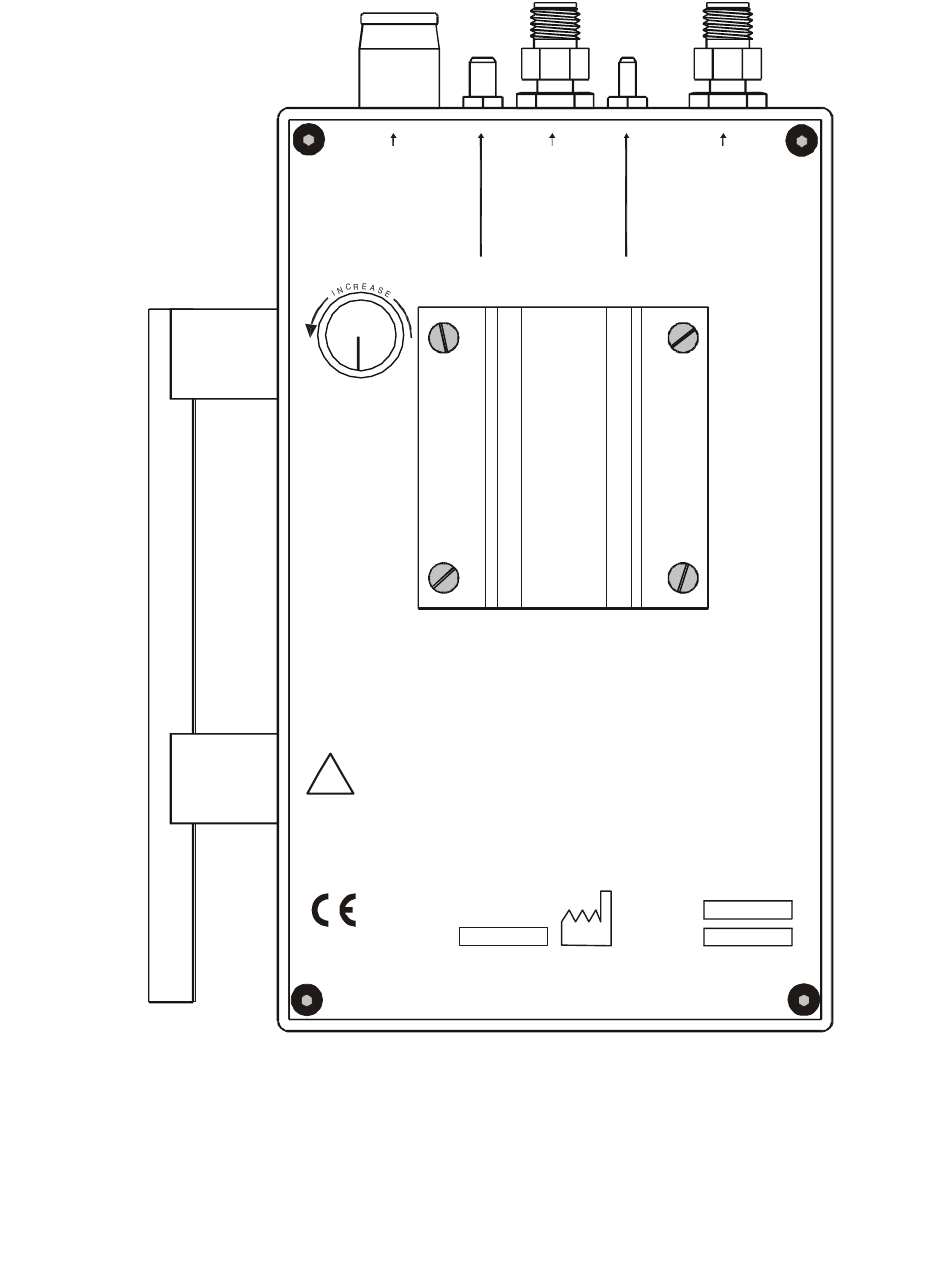

FIG. 1-2 IC-2A Ventilator (Rear View)
LOGIC GAS
SUPPLY
100% O
2
50±5 PSI
345±34.5 kPa
30 LPM MAX. FLOW 82 LPM MAX. FLOW
EXHALATION
VALVE
REF
GUILFORD, CT U.S.A.
PATIENT GAS
SUPPLY
AIR/OXYGEN
50±5 PSI
345±34.5 kPa
SN
6
