BIO-MED DEVICES IC-2A Service Manual page 14

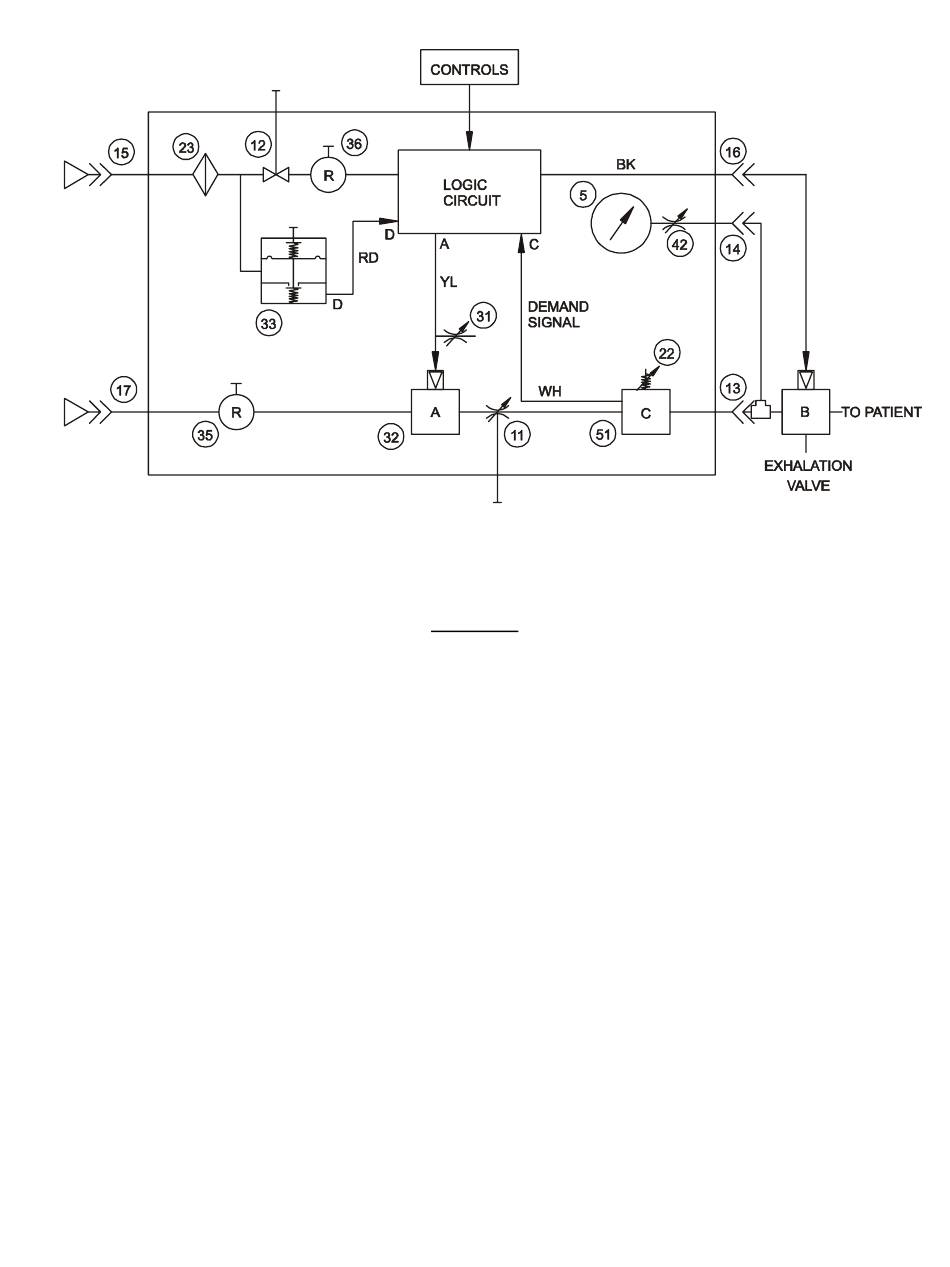

Fig. 2-1 IC-2A Schematic Diagram
LEGEND
4 Pressure Gauge Line Connector
5 Pressure Gauge
11 Flow Rate Control Valve (panel control)
12 OFF/ON Control Valve (panel control)
13 Patient Hose Connector
15 Logic Gas Supply 100% O2 Connector
16 Exhalation Valve Line Connector
17 Patient Gas Supply Connector
22 Two-way Relief Valve
23 Logic Supply Filter
31 Pilot Line Variable Resistor
32 Pilot Valve
33 Fail-safe Cutoff Valve
35 Patient Supply Regulator
36 Logic Supply Regulator
42 Pressure Gauge Variable resistor
51 Patient Circuit Manifold
