Completeness check of the product
Before installation of the outdoor panel, it is necessary to check that
it is complete and all components are available.
Outdoor panel kit includes:
Outdoor panel
Surface mounting bracket with a hood / without hood
Manual
Set of wires with connectors for connection of power supply,
lock, and additional modules
A set of plugs for connections
Set of set screws with a wrench

Electrical connection

After verifying the device's completeness, you can switch to the outdoor panel
connection.
For connection you will need::
An Ethernet UTP CAT5 or higher cable connected to a network
switch / router.
Cable length recommendations
The maximum length of the UTP CAT5 cable segment should not exceed 100 meters,
according to the IEEE 802.3 standard.
Power supply at +12 V, 2 amps, if there is no PoE.
Wires must be brought for the connection of alarm loops and home
automation (optional).
You can connect any type of electromechanical or electromagnetic lock for which the switched current
does not exceed 5 Amps.
Power supply
for the panel
DC
+12V
+
-
1 2
LAN (PoE)
+12V GND
Power/Switch Output
1 2
EXIT GND
Exit Button/Door Magnetic

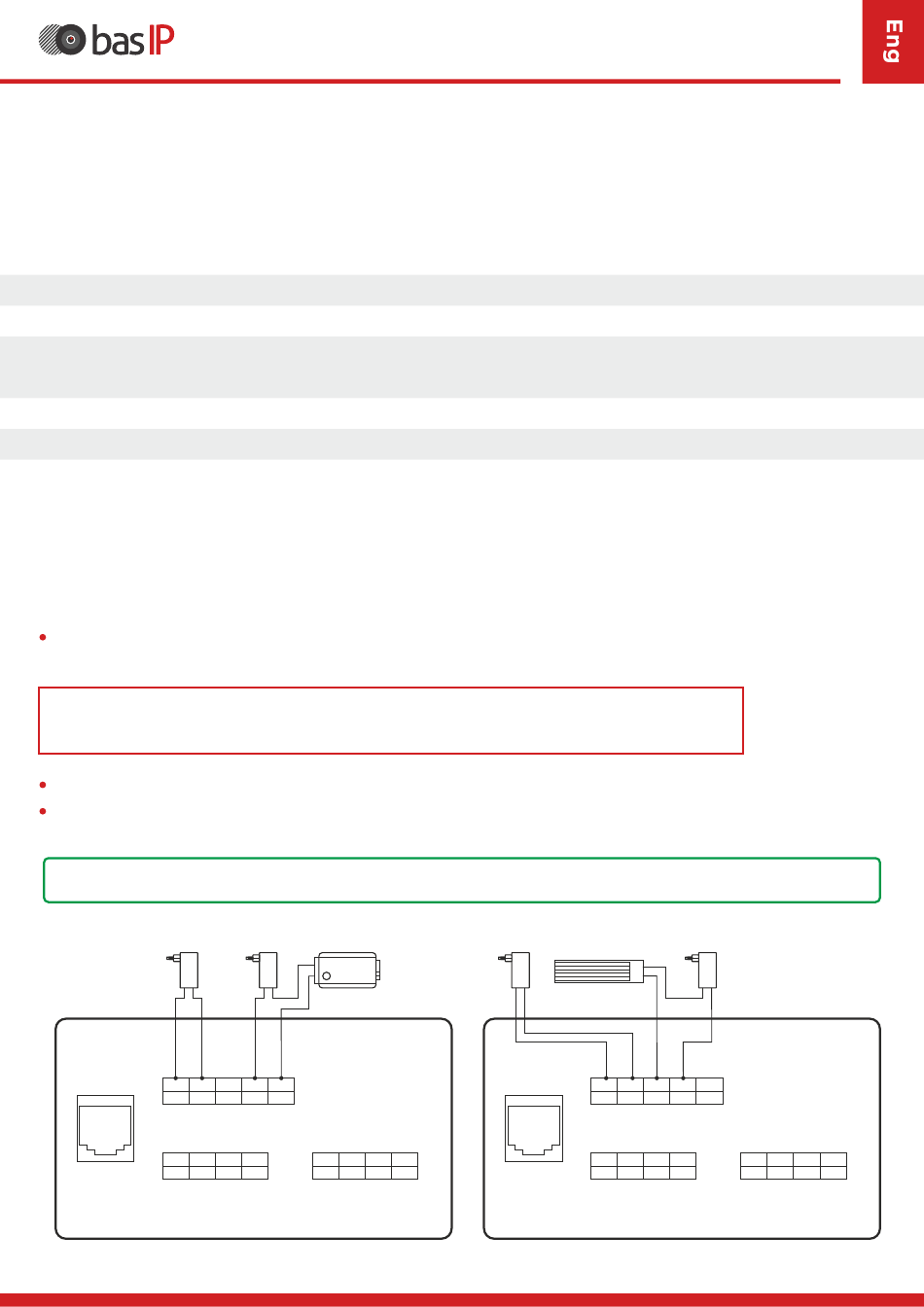

Connection scheme of electromechanical lock
using external power supply for panel and the lock.
Power supply
for the lock
DC
+12V
+
-
Electromechanical lock
3 4 5
NC COM NO
3 4 1 2 3
DIN DS +12V GND 485+ 485-
Rs485 Interface
Power supply Electromagnetic
for the panel lock
DC
+12V
+
-
LAN (PoE)
4
Connection scheme of electromagnetic lock
using external power supply for panel and the lock.
Power supply
for the lock
DC
+12V
+
-
1 2 3 4 5
+12V GND NC COM NO
Power/Switch Output
1 2 3 4 1
EXIT GND DIN DS +12V
Exit Button/Door Magnetic Rs485 Interface
3
1 pc
1 pc / 1 pc
1 pc
1 pc
1 pc
1 pc
2 3 4
GND 485+ 485-
