The Main Controls tab controls the PLL settings (see Figure 4).
Use the RF Settings section to control the output frequency.
You can type the desired output frequency in the RF VCO
Output Frequency text box (in megahertz).
Use the Reference Frequency text box to set the correct
reference frequency and the reference frequency divider. The
default reference on the software window is 100 MHz.
The Settings section lets you select general options available for
the PLL, including the charge pump current settings and phase
detector polarity. The EV-ADF4108EB1Z
setting of 5 mA and a negative phase detector polarity.
uses a charge pump

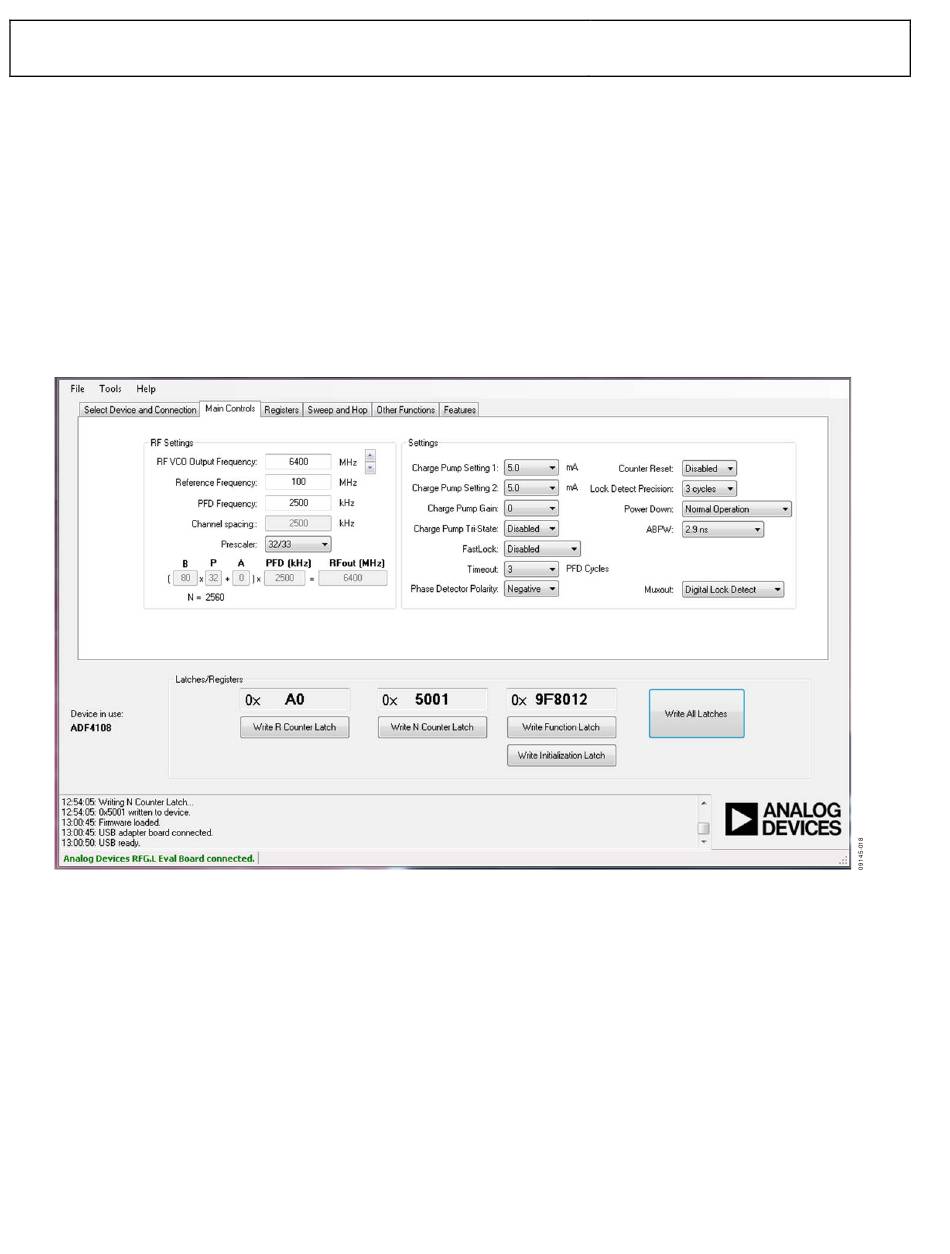

Figure 4. Int-N Software, Main Window—Main Controls
Rev. B | Page 6 of 16
Evaluation Board User Guide
In the Registers tab, you can manually input the desired value
to be written to the registers.
In the Sweep and Hop tab, you can make the device sweep a
range of frequencies or hop between two set frequencies.
In the Latches/Registers section at the bottom of the Main
Controls tab of the main window, the values to be written to
each register are displayed. If the background on the text box is
green, the value displayed is different from the value actually on
the device. Click Write R Counter Latch or Write N Counter
Latch to write the value displayed to the device. To update all
Latches in the correct order, click Write All Latches.
