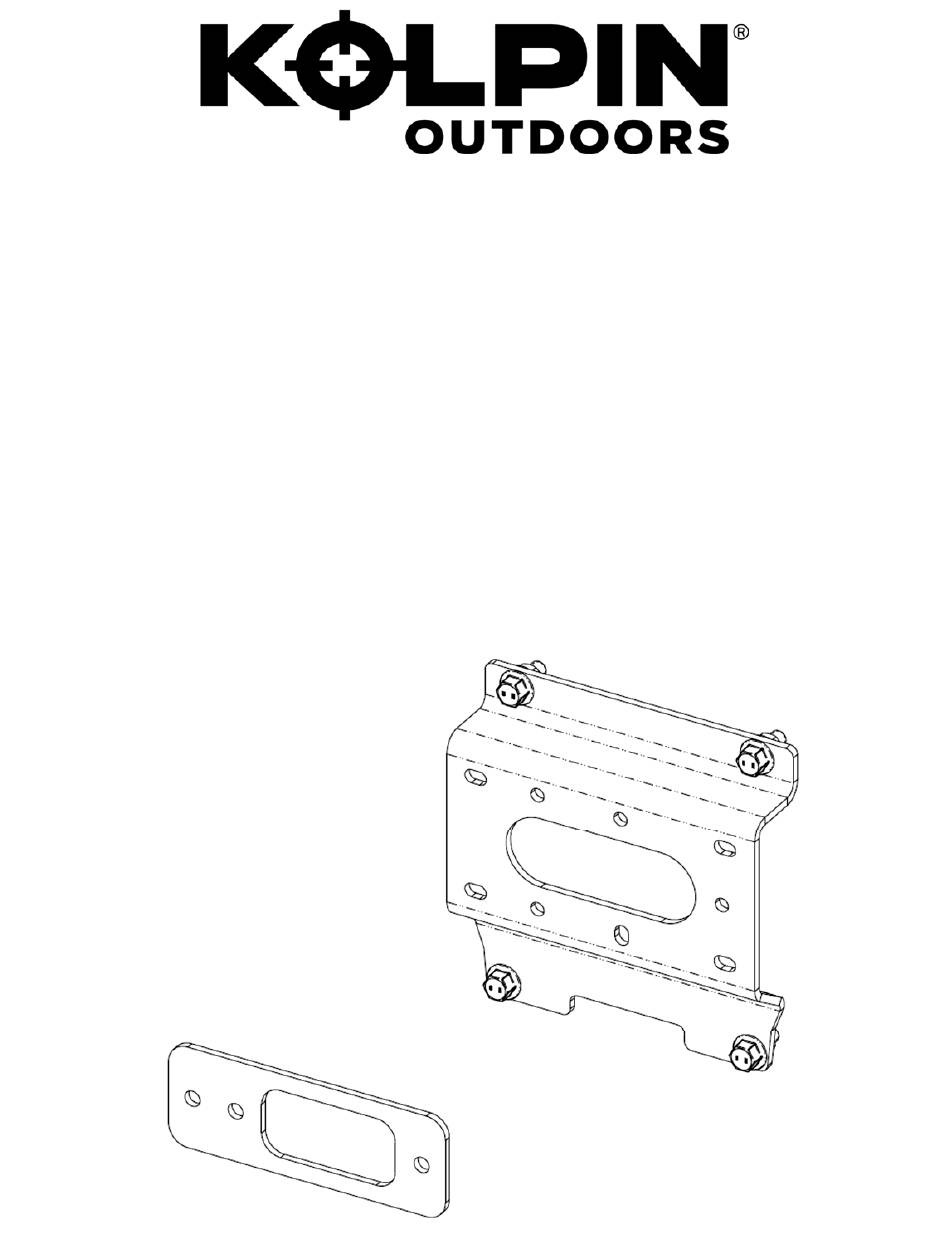

WINCH MOUNT KIT
FOR TEXTRON ARCTIC CAT PROWLER PRO
P/N 25-6130
ASSEMBLY / OWNERS MANUAL
Application
WINCH KIT NO. 25-9xxx
Before You Begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2021 Kolpin Outdoors Inc.
REV 00
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 25-9 Series
Summary of Contents for Kolpin Outdoors 25-9 Series
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2021 Kolpin Outdoors Inc. REV 00...
- Page 2 Do not use your winch or winch mount for towing. Do not shock load the winch, cable or winch mount. Keep fingers, hands and loose clothing away from roller fairlead and winch cable drum when in use. © 2021 Kolpin Outdoors Inc. REV 00...
- Page 3 Kit Contents: Item Qty Part Description Part Number Winch Mount Plate Hex Flange Screw, Zinc Plated, M10-1.5 x 25mm LG Hex Flange Locknut, Zinc Plated, M10-1.5 Fairlead Adapter Plate CYC6425 Instruction Guide (not shown) © 2021 Kolpin Outdoors Inc. REV 00...
- Page 4 10MM FASTENER TORQUE: plate using M8 hardware provided with winch kit 34 ft. lbs. (46 Nm) prior to installing onto the vehicle. 4. Tighten M10 hardware to specification. © 2021 Kolpin Outdoors Inc. REV 00...
- Page 5 One hole pattern for standard width winches, one hole pattern for wide mount winches and one hole pattern for 2-hole mount winches. (See illustration 1-4). Ill. 1-3 Ill. 1-4 Wide Standard © 2021 Kolpin Outdoors Inc. REV 00...
- Page 6 14. Secure all harnesses using cable ties (provided with winch kit) to prevent contact with hot components, sharp edges or moving parts. M8 Hardware included with 15. Reconnect black negative (-) cable to battery. Ill. 1-7 winch © 2021 Kolpin Outdoors Inc. REV 00...
- Page 7 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2021 Kolpin Outdoors Inc. REV 00...
