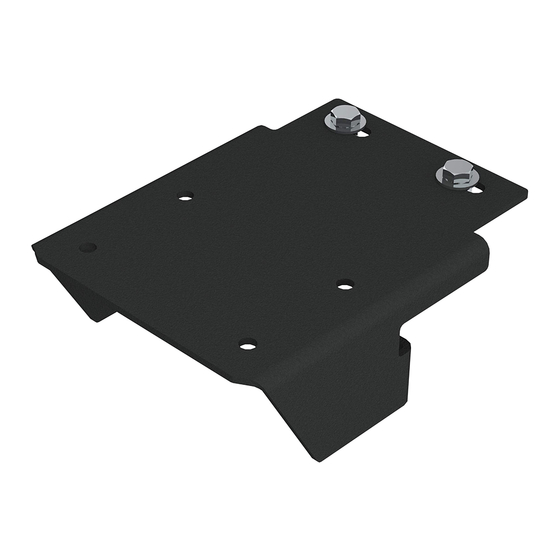

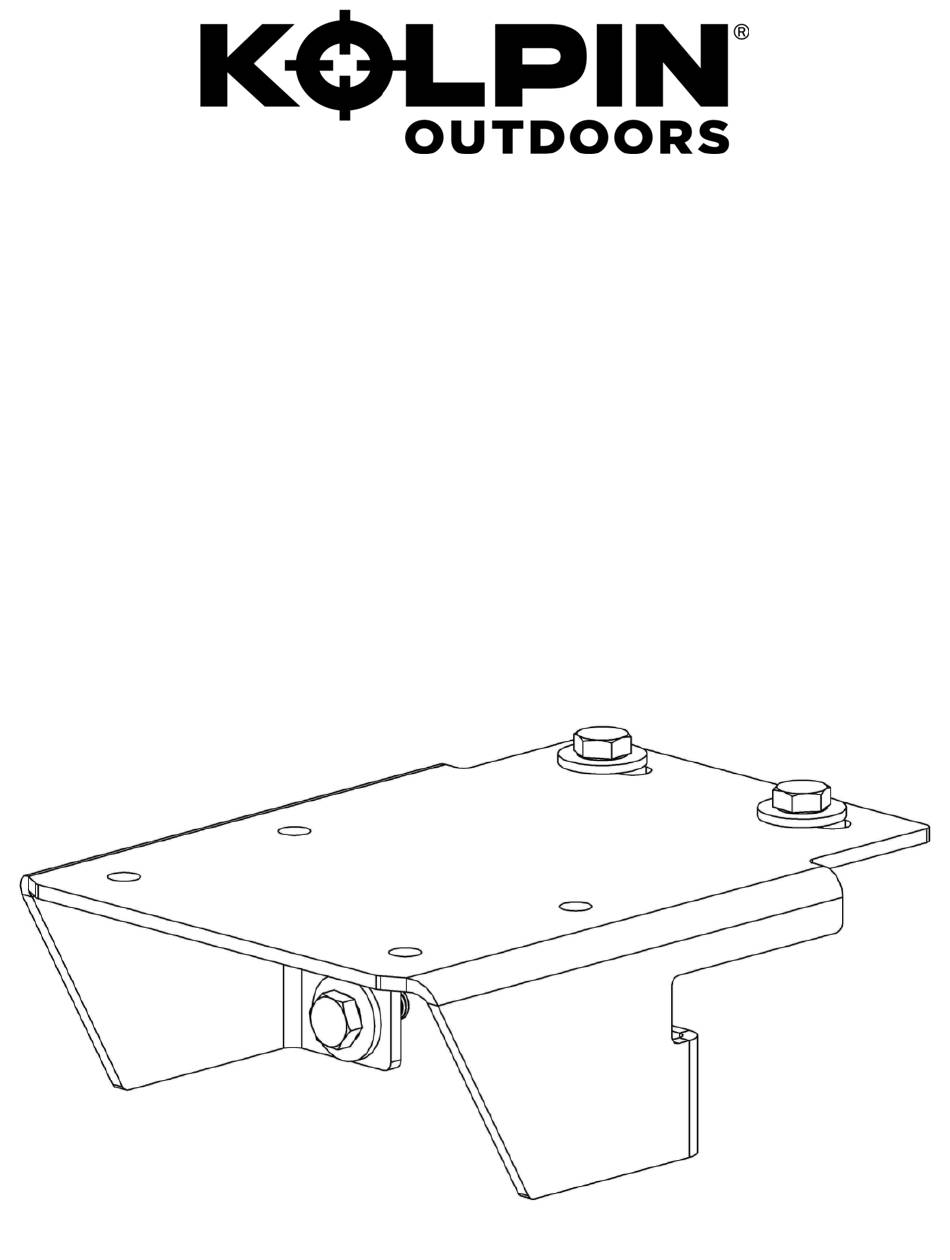

WINCH MOUNT KIT
FOR KAWASAKI MULE 4000 / 4010 / TRANS
P/N 25-2340
ASSEMBLY / OWNERS MANUAL
Application
WINCH KIT NO. 25-9xxx
Before You Begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2021 Kolpin Outdoors Inc.
REV 01
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 25-2340
Summary of Contents for Kolpin Outdoors 25-2340
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2021 Kolpin Outdoors Inc. REV 01...
- Page 2 Do not use your winch or winch mount for towing. Do not shock load the winch, cable or winch mount. Keep fingers, hands and loose clothing away from roller fairlead and winch cable drum when in use. © 2021 Kolpin Outdoors Inc. REV 01...
- Page 3 Kit Contents: Item Qty Part Description Part Number Winch Mount Plate Hex Bolt, Zinc Plated, M10-1.5 x 25mm LG Hex Locknut, Zinc Plated, M10-1.5 Flat Washer, Zinc Plated, M10 Instruction Guide (not shown) © 2021 Kolpin Outdoors Inc. REV 01...
- Page 4 3. Note, if vehicle is equipped with plastic front bumper guard, remove the guard from vehicle to gain access to install winch assembly. Save all fasteners for re-install later. (See illustration 1-1). Ill. 1-1 screws © 2021 Kolpin Outdoors Inc. REV 01...
- Page 5 8MM FASTENER TORQUE: 17 ft. lbs. (23 Nm) 10MM FASTENER TORQUE: Ill. 1-3 34 ft. lbs. (46 Nm) Ill. 1-4 Hardware and brackets included with winch kit M8 hardware included with winch kit © 2021 Kolpin Outdoors Inc. REV 01...
- Page 6 (+) cable to the battery last. Restore drivers’ seat bottom. 13. With the vehicle key in the ON position, check winch for proper operation. 14. Retighten all hardware after 30 minutes of riding. Ill. 1-6 © 2021 Kolpin Outdoors Inc. REV 01...
- Page 7 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2021 Kolpin Outdoors Inc. REV 01...
