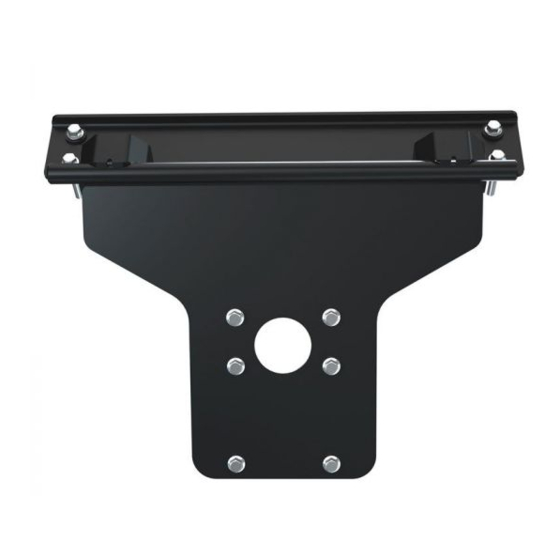

FRONT-CONNECT PLOW
MOUNT KIT
FOR KAWASAKI MULE PRO-FX/FXR/FXT/DX/DXT
P/N 35-2000
ASSEMBLY / INSTALLATION MANUAL
Application
FRONT-CONNECT PLOW PUSH FRAME NO. 35-0070
Before you begin, please read these instructions and check to be sure all parts and tools are accounted for.
The following instructions contain details required to install and service the contents of this kit.
© 2021 Kolpin Outdoors Inc.
REV 00
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 35-2000
Summary of Contents for Kolpin Outdoors 35-2000
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2021 Kolpin Outdoors Inc. REV 00...
- Page 2 To increase traction during plow operation, operators can try: Securing weight to the ATV / UTV for additional tire downforce, • reducing tire air pressure, or installing tire chains. © 2021 Kolpin Outdoors Inc. REV 00...
- Page 3 See www.Kolpin.com for products to complete your plow system. TOOLS REQUIRED Safety Glasses • Socket Set, Metric • Torque Wrench • Wrench Set, Metric • Drill • 1/2” Drill Bit • © 2021 Kolpin Outdoors Inc. REV 00...
- Page 4 Hex Flange Bolt, Zinc Plated, M10-1.5 x 25mm LG Hex Flange Bolt, Zinc Plated, M10-1.5 x 65mm LG Hex Flange Locknut, Zinc Plated, M10-1.5 Flat Washer, Zinc Plated, M10 Lock Washer, Zinc Plated, M10 Instruction Guide (not shown) © 2021 Kolpin Outdoors Inc. REV 00...
- Page 5 (See illustrations Note, do not fully tighten 1-3, 1-4 and 1-5). hardware at this time. Item #2 Item #2 Ill. 1-4 Items #4, #7, #6 Ill. 1-3 © 2021 Kolpin Outdoors Inc. REV 00...
- Page 6 1-7). Note, only the forward holes will be used for Item #3 drivers vehicle side. 7. Tighten all hardware to specification. 10MM FASTENER TORQUE: 34 ft. lbs. (46 Nm) Item #5 Ill. 1-7 © 2021 Kolpin Outdoors Inc. REV 00...
- Page 7 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2021 Kolpin Outdoors Inc. REV 00...
