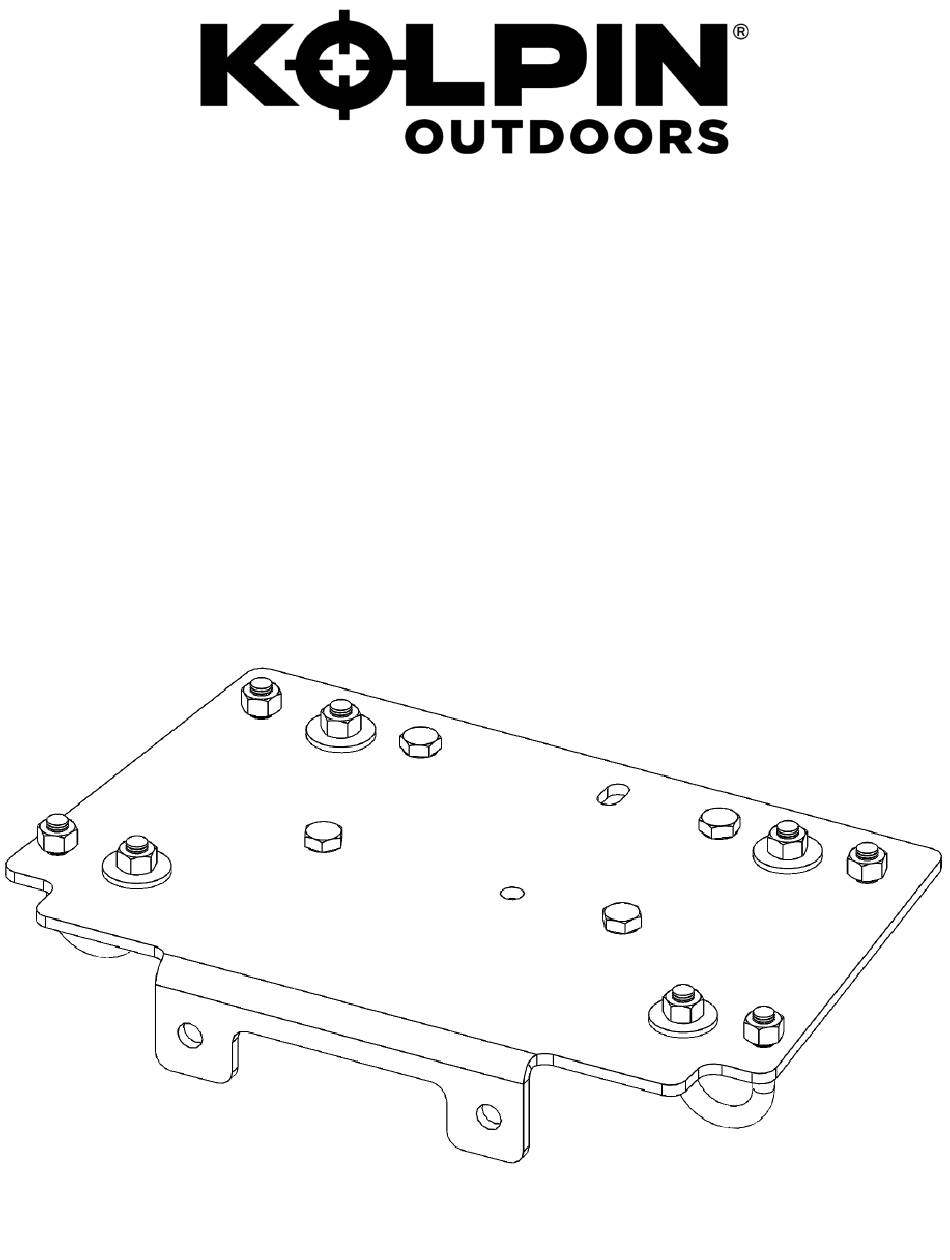

WINCH MOUNT KIT
FOR HONDA RINCON ATV
P/N 25-1190
ASSEMBLY / OWNERS MANUAL
Application
WINCH KIT NO. 25-9xxx
Before You Begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2019 Kolpin Outdoors Inc.
REV 03
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 25-1190
Summary of Contents for Kolpin Outdoors 25-1190
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2019 Kolpin Outdoors Inc. REV 03...
- Page 2 Do not use your winch or winch mount for towing. Do not shock load the winch, cable or winch mount. Keep fingers, hands and loose clothing away from roller fairlead and winch cable drum when in use. © 2019 Kolpin Outdoors Inc. REV 03...
- Page 3 Round U-Bolt, Zinc Plated, M8-1.25 x 25mm x 45mm Hex Head Bolt, Zinc Plated, M8-1.25 x 30mm LG Flat Washer, Zinc Plated, M8 Hex Locknut, Zinc Plated, M8-1.25 Spacer Plate, Painted Instruction Guide (not shown) © 2019 Kolpin Outdoors Inc. REV 03...
- Page 4 Note: If any hardware is missing, do not return to the store. Call us to help, Toll Free 1-877-956-5746. Use hardware included in this kit Use spacers if needed to allow clearance for winch gear casing to the front bumper tubing Rincon front bumper frame © 2019 Kolpin Outdoors Inc. REV 03...
- Page 5 (See illustration 1-3). Tighten all fasteners to specification. 8MM FASTENER TORQUE: 17 ft. lbs. (23 Nm) 10. Using OEM fasteners, re-install the bottom plastic shroud removed previously. © 2019 Kolpin Outdoors Inc. REV 03...
- Page 6 Ill. 1-4 15. Reconnect battery red (positive) and black (negative) cables to battery terminals at this time. 16. With vehicle key in the ON position, check winch for proper operation. © 2019 Kolpin Outdoors Inc. REV 03...
- Page 7 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2019 Kolpin Outdoors Inc. REV 03...
