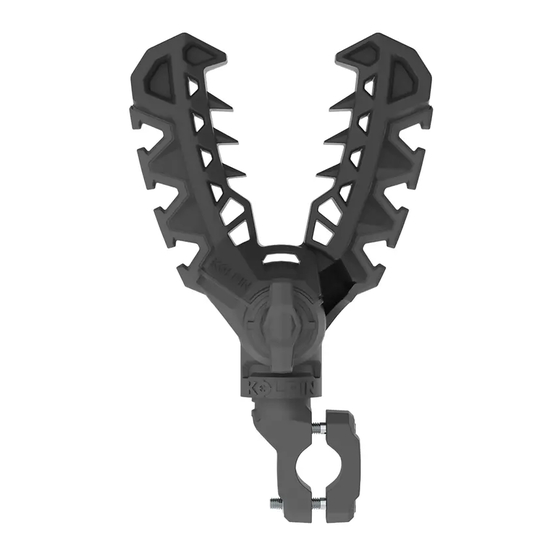

Rhino Grip XLR - Handlebar & Rack
Product Instructions | Part No: 21556
Before you begin, read these instructions and check to be sure all parts and tools are accounted for. Please retain these
instructions for future reference and part ordering information. Note: If any hardware is missing, do not return to the store.
Call us to help, toll free at 1-877-956-5746.
3
10
1
5
8
Kolpin Outdoors, Inc. | 9955 59th Ave N | Plymouth, MN 55442
(877) 956-5746 or (763) 478-5800 |
© 2020 Kolpin Outdoors Inc.
2
7
6
Item
Qty Part Description
1
2
Overmolded Grip Arm - A
2
2
Overmolded Grip Arm - B
3
2
Thumb Screw
4
2
M8 - 1.25 Locknut
5
4
Pivot
6
2
Mounting Base
7
2
Mounting Clamp
8
4
M6 x 35mm Socket Head Cap Screw
9
4
M6 - 1.00 Locknut
10
2
Rubber Strap
11
2
Rubber Pad (NOT SHOWN)
kolpin.com
|
customerservice@kolpin.com
REV 00
1
9
4
Spare P/N
-
-
-
-
-
-
-
-
-
21591
-
