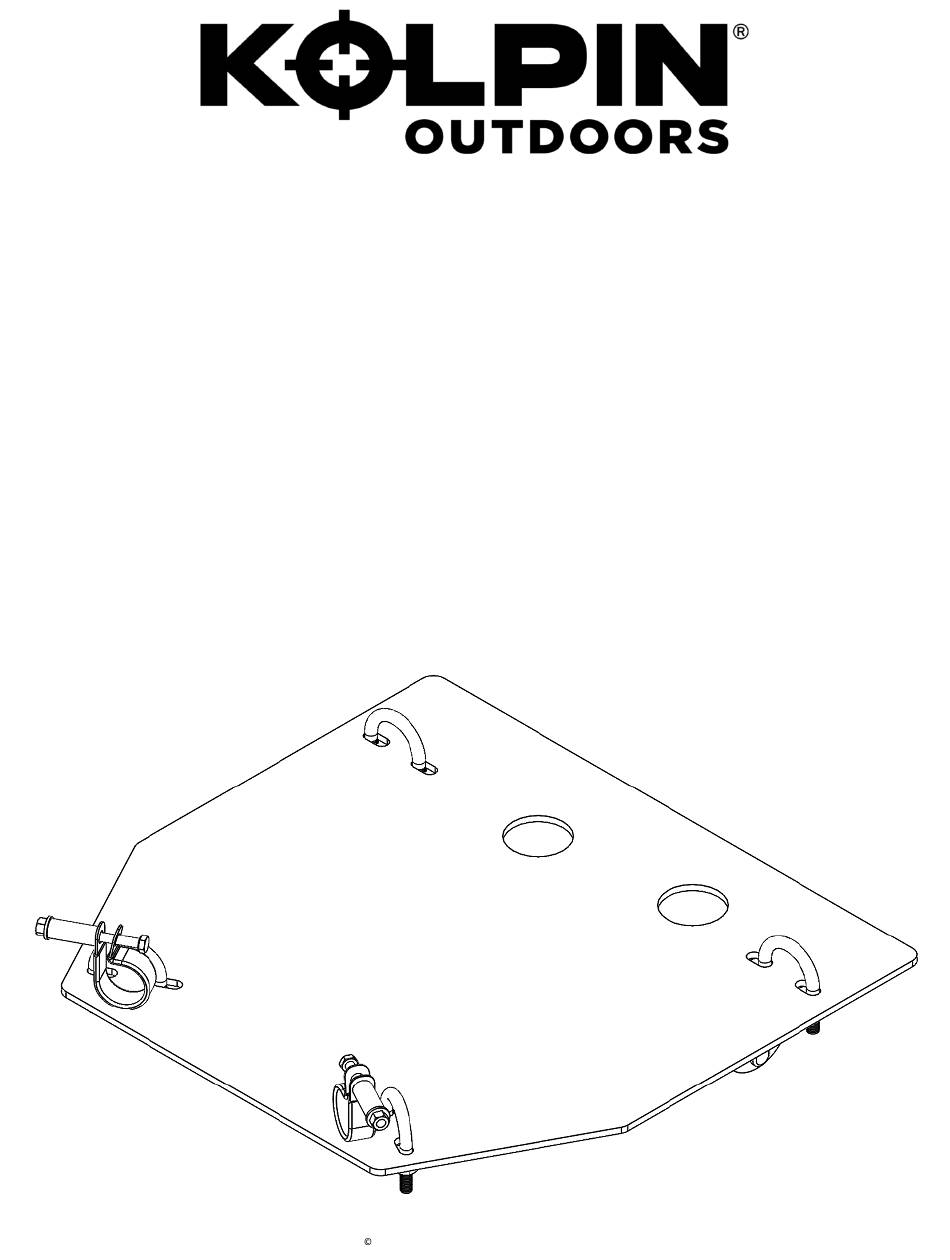

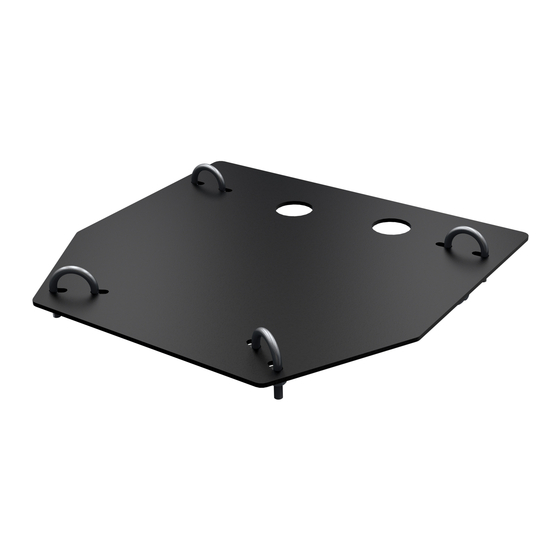

MID-MOUNT KIT
FOR YAMAHA ATV's
P/N 15-5640
ASSEMBLY / OWNERS MANUAL
Application
PLOW PUSH FRAME NO. 15-0070, 33-0000 or 33-0070
Before you begin, please read these instructions and check to be sure all parts and tools are ac-
counted for. The following instructions contain details required to install and service the contents of
this kit.
2017 Kolpin Outdoors Inc.
REV 02
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 15-5640
Summary of Contents for Kolpin Outdoors 15-5640
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are ac- counted for. The following instructions contain details required to install and service the contents of this kit. 2017 Kolpin Outdoors Inc. REV 02...
- Page 2 IN UP POSITION. DO NOT ATTEMPT TO RAISE BLADE BY HAND; USE THE LIFT MECHANISM ONLY. LOWER BLADE TO DOWN POSITION WHEN BLADE AND ATV/UTV ARE NOT IN USE. READ BLADE'S INSTRUCTION SHEETS AND ATV/UTV OWNER MANUAL. 2017 Kolpin Outdoors Inc. REV 02...
- Page 3 U-Bolt, Zinc Plated, M8-1.25 x 35mm x 50mm PUR3191 Flat Washer, Zinc Plated, 8mm PUR3087 Locknut, Zinc Plated, M8-1.25 PUR3068 Flange Locknut, Zinc Plated, M6-1.0 PUR3073 Hex Bolt, Zinc Plated, M6-1.0 x 50mm LG PUR3008 Instruction Guide (not shown) 2017 Kolpin Outdoors Inc. REV 02...
- Page 4 Mount Bracket Spacer, 1.25” U-Bolt, Zinc Plated, M8-1.25 x 35mm x 50mm Flat Washer, Zinc Plated, 8mm Locknut, Zinc Plated, M8-1.25 Flange Locknut, Zinc Plated, M6-1.0 Hex Bolt, Zinc Plated, M6-1.0 x 50mm LG 2017 Kolpin Outdoors Inc. REV 02...
- Page 5 Fasten u- bolts with washers, item #7, and locknuts, item #8. Tighten to specifications. 8MM FASTENER TORQUE: 17 ft. lbs. (23 Nm) Items #6, 7 & 8 Front of ATV Ill. 1-3 2017 Kolpin Outdoors Inc. REV 02...
- Page 6 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com 2017 Kolpin Outdoors Inc. REV 02...
