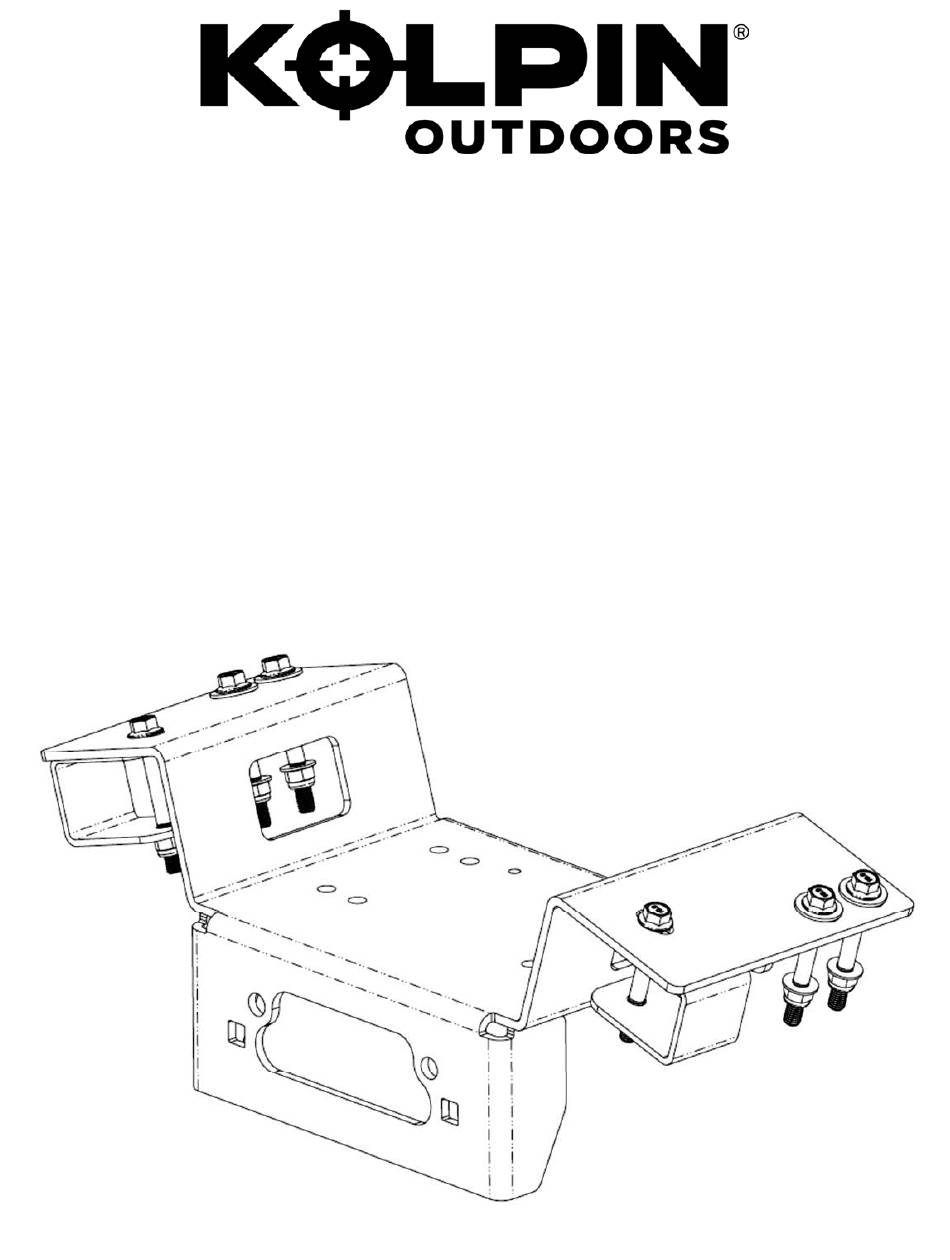

WINCH MOUNT KIT
FOR HONDA PIONEER 700
P/N 25-1280
ASSEMBLY / OWNERS MANUAL
Application
WINCH KIT NO. 25-9xxx
Before you begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2021 Kolpin Outdoors Inc.
REV 00
