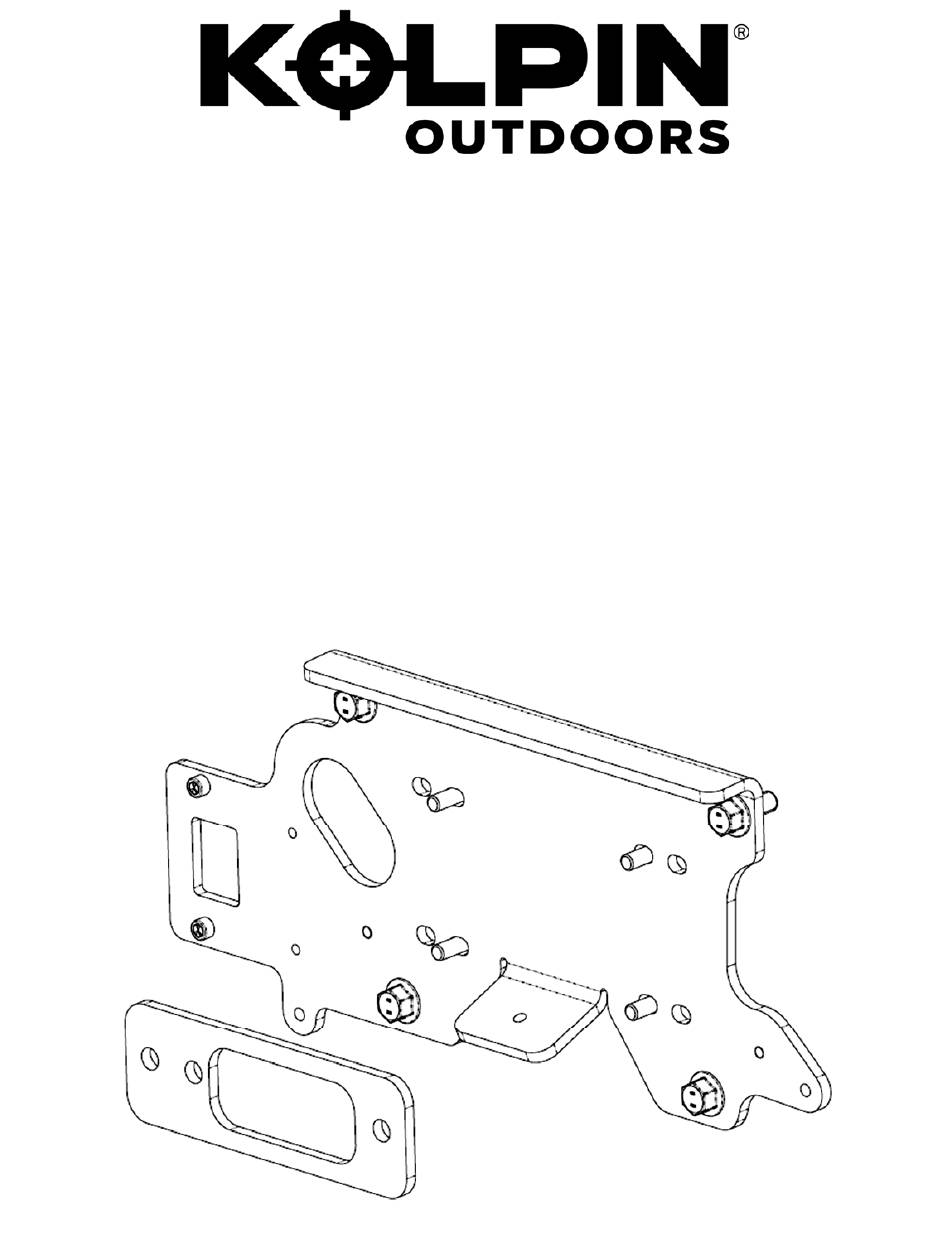

WINCH MOUNT KIT
FOR POLARIS RANGER XD 1500
P/N 25-3450
ASSEMBLY / OWNERS MANUAL
Application
WINCH KIT NO. 25-9xxx
Before you begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2024 Kolpin Outdoors Inc.
REV 00
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 25-3450
Summary of Contents for Kolpin Outdoors 25-3450
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2024 Kolpin Outdoors Inc. REV 00...
- Page 2 Do not use your winch or winch mount for towing. Do not shock load the winch, cable or winch mount. Keep fingers, hands and loose clothing away from roller fairlead and winch cable drum when in use. © 2024 Kolpin Outdoors Inc. REV 00...
-
Page 3: Kit Contents
Ranger XD Fairlead Adapter Hex Bolt, Zinc Plated, M10-1.5 x 25mm LG Button Screw, Zinc Plated, M8-1.25 x 20mm LG 7519260 Socket Head Cap Screw, Zinc Plated, M6-1.0 x 10mm LG 7517337 Instruction Guide (not shown) © 2024 Kolpin Outdoors Inc. REV 00... -
Page 4: Before You Begin
APPROXIMATE ASSEMBLY TIME: 30 minutes Note: Additional time may be required to accommodate other installed accessories. Note: If any hardware is missing, do not return to the store. Call us to help, Toll Free 1-877-956-5746. © 2024 Kolpin Outdoors Inc. REV 00... - Page 5 (See illustration 1-2). Ill. 1-1 Ill. 1-2 4. Remove inner hood by turning knobs upwards as shown. (See illustration 1-3). 5. Move hood forward to release front hooks and lift to remove. Ill. 1-3 © 2024 Kolpin Outdoors Inc. REV 00...
- Page 6 Winch Mount Options: Wide-mount pattern 6. The Kolpin winch mount 25-3450 has two winch mounting options. One hole pattern Contactor mount for standard width winches and one hole pattern for wide mount winches. A contactor mount also exists. Use the M6...
- Page 7 12. Put winch clutch in freespool position and pull out three feet of rope to ease installation of the fairlead and hook. Shift winch back into gear and give rope a slight Ill. 1-8 tug to engage gears. Ill. 1-9 © 2024 Kolpin Outdoors Inc. REV 00...
- Page 8 Note, make sure rope is not routed over tie bar or any other obstacle. 18. Tighten M8 fasteners to specification. Ill. 1-12 8MM FASTENER TORQUE: 17 ft. lbs. (23 Nm) Ill. 1-13 UTV Auto-stop fairlead © 2024 Kolpin Outdoors Inc. REV 00...
- Page 9 1-16 and 1-17 for harness harness overview. 23. Restore hood access. 24. Corded remote control harness could be installed into the glovebox as shown. (See illustration 1-18). Ill. 1-16 Ill. 1-18 Ill. 1-17 © 2024 Kolpin Outdoors Inc. REV 00...
-
Page 10: One Year Limited Warranty
Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2024 Kolpin Outdoors Inc. REV 00...
